CH Series Outdoor LED Panel with 7680Hz Refresh Rate Lightweight Die-Cast Aluminum and Front/Rear Maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P3.91 |
| Document: | CH outdoor screen.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Pixel Pitch: | 3.91MM | Screen Brightness: | >3500CD/㎡ |
|---|---|---|---|
| Operation Temperature: | -20~60℃ | Refresh Frequency: | 7680Hz |
| Working Voltage: | AC 220V/(110V)±15% | LED Size: | SMD1921 |
| Highlight: | 7680Hz Refresh Rate Outdoor LED Panel,Lightweight Die-Cast Aluminum LED Display Screen,Front/Rear Maintenance Outdoor LED Video Wall |
||
Product Description

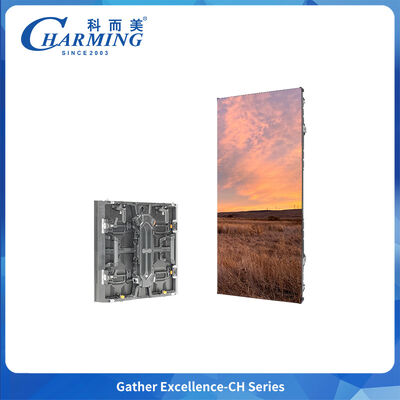

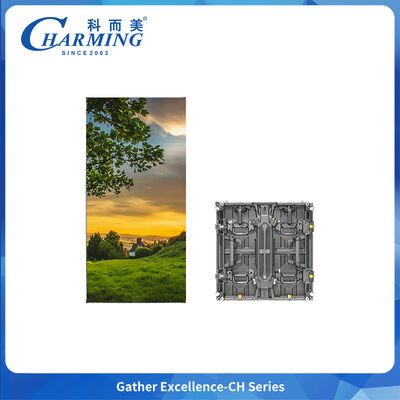

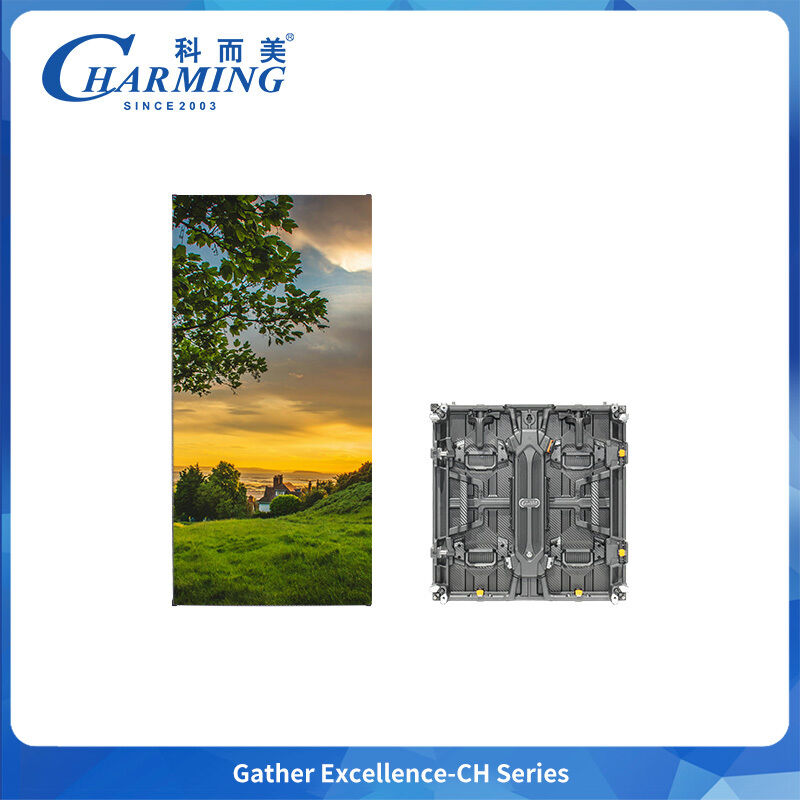

CH Series Outdoor LED Panel
Lightweight die-cast aluminum construction with front/rear maintenance capabilities and 7680Hz refresh rate. This outdoor LED video wall delivers vibrant colors, seamless installation, and exceptional performance for advertising, events, and public displays.
Technical Specifications
| Type Number | P3.91 |
|---|---|
| Dimension | 500×500×84 mm |
| Max. Power | 200W |
| Brightness | ≥3500 CD/㎡ |
| LED Standard | SMD1921 |
| Viewing Angle | 120° |
| Protection Level | IP65 |
| Refresh Rate | ≥7680Hz |
| Pixel Pitch | 3.91 mm |
| Scan Mode | 1/16 Scan |
| Pixel Density | 65536 Dot/㎡ |
| Grey Level | 14-16 Bit |
| Working Temperature | -20°C to 60°C |
| Life Span | ≥50,000 Hours |
| Working Voltage | AC 220V/(110V)±15% |
Production Details
Installation Case Studies
Manufacturer Profile
About CharmingLED
CharmingLED is a leading manufacturer of digital signage and billboards with over 20 years of industry experience. Whether you need a digital LED sign or a large billboard, our expertise helps you find the perfect solution for your business. Stand out from the competition with our vibrant, eye-catching LED displays and electronic signage. Contact our digital LED experts today!
