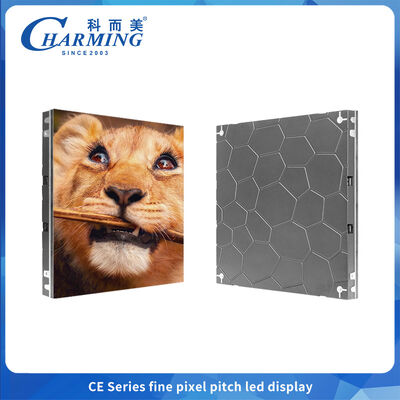

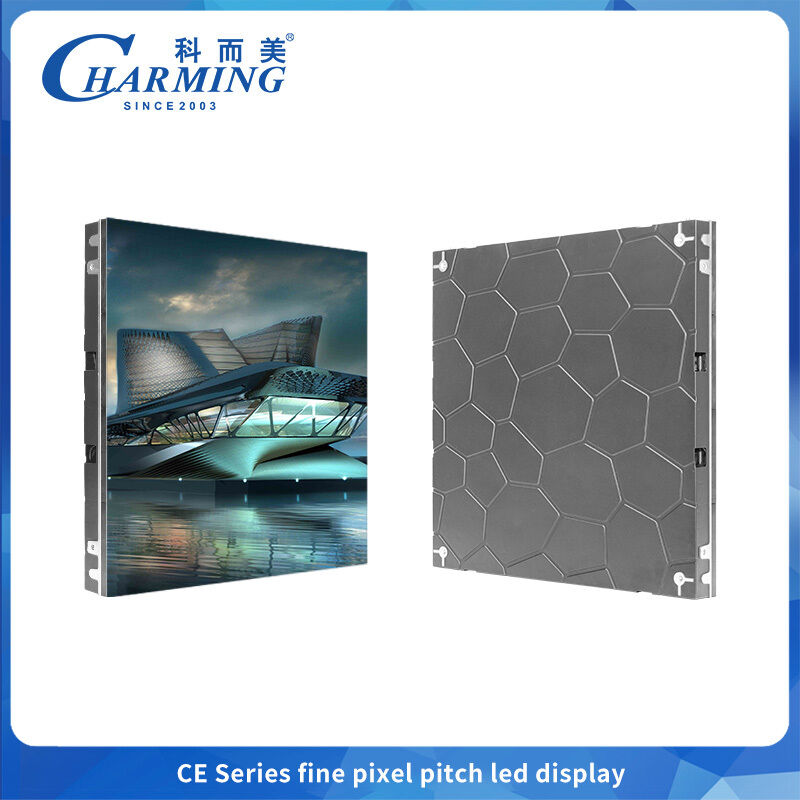

P1.86 P2.5 Fine Pitch LED Display Panel 640x640mm with 7680Hz Refresh Rate for Seamless Conference Centers
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | 1.86、2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Cabinet Size: | 640X640x61mm | Refresh Frequency: | 7680Hz |
|---|---|---|---|
| Cabinet Weight: | 8KG | Pixel Density: | 288906 Dot/㎡ |
| Screen Brightness: | 600-800CD/m² | GreyScale: | 14-16bit |
| Type Number: | P1.86 P2.5 | Operation Temperature: | -20~50℃ |
| Life Span: | ≥50000 Hours | ||
| Highlight: | P1.86 P2.5 Fine Pitch LED Display,640x640mm LED Display Panel,7680Hz Refresh Rate LED Video Wall |
||
Product Description
Indoor P1.86 P2.5 LED Display Panel 640x640mm – Seamless and Fast Fixed Installation for Conference Centers
High-performance indoor LED display panels designed for seamless integration and rapid fixed installation in conference centers and professional environments.
Technical Specifications
| Parameter | P1.86 | P2.5 |
|---|---|---|
| Dimension (MM) | 640×640×61mm | 640×640×61mm |
| Max. Power (W) | 200W | 200W |
| Maintenance Method | Front Maintenance | Front Maintenance |
| Brightness (CD/m²) | 600 CD/㎡ | 800 CD/㎡ |
| LED Standard | SMD1515 | SMD2020 |
| Viewing Angle | 140° | 140° |
| Protection Level | IP40 | IP40 |
| Refresh Rate (Hz) | 7680Hz | 7680Hz |
| Pixel Pitch (MM) | 1.86MM | 2.5MM |
| Scan Mode | 1/43 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 288,906 | 160,000 |
| Grey Level | 14Bit | 14Bit |
| Working Temperature | -20~50°C | -20~50°C |
| Life Span | ≥50,000 Hours | ≥50,000 Hours |
| Working Voltage | AC 110V/220V, 50/60HZ | AC 110V/220V, 50/60HZ |
Production Details
Case Show
Frequently Asked Questions
Can I order samples first?
Yes - sample orders for modules and screens are welcome. We encourage you to test the quality before placing bulk orders.
What's your warranty policy?
We offer a 1‑year standard warranty on all products.
What about after-sales support?
We provide 24/7 online support with a dedicated professional team for quick troubleshooting.
Do you offer custom sizes?
We work with standard module and cabinet dimensions. If you have specific size needs, we'll help find the best solution for your project.
