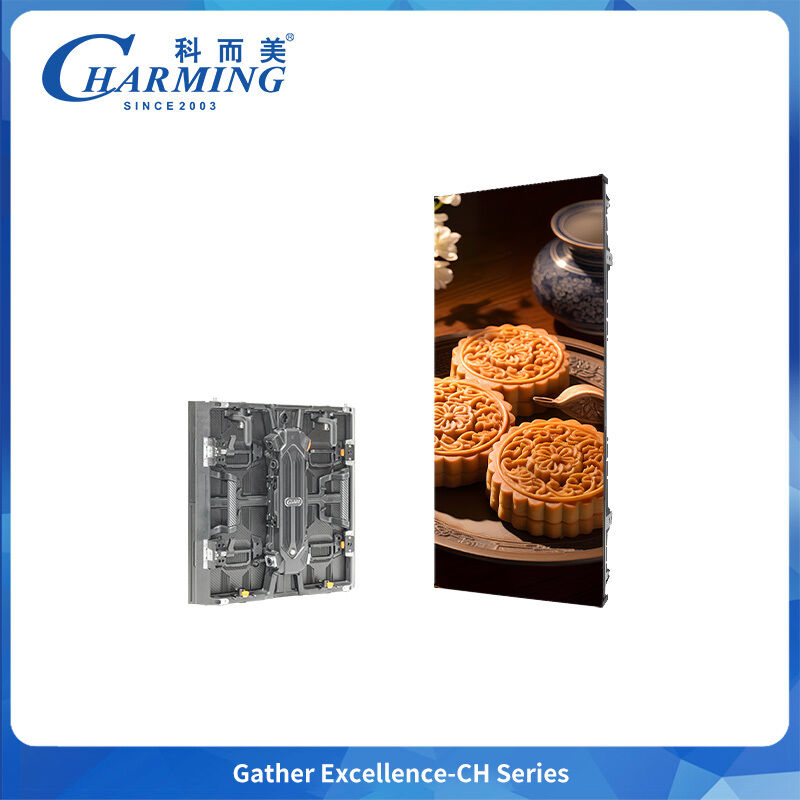

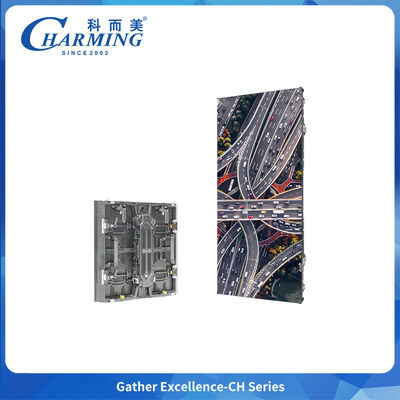

CH Series Outdoor LED Video Wall with Front And Rear Maintenance, Flexible & Curved Design, and 7680Hz Refresh Rate for Rentals & Events
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P3.91 |
| Document: | CH outdoor screen.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Screen Brightness: | >3500CD/㎡ | Refresh Frequency: | 7680Hz |
|---|---|---|---|
| Operation Temperature: | -20~60℃ | Working Voltage: | AC 220V/(110V)±15% |
| LED Size: | SMD1921 | Pixel Pitch: | 3.91MM |
| Highlight: | Front And Rear Maintenance LED Display,Flexible & Curved LED Screen,7680Hz Refresh Rate Outdoor LED Video Wall |
||
Product Description
CH Series Outdoor LED Display – Front & Rear Maintenance
Product Overview
Outdoor LED Video Wall delivering vibrant colors, seamless installation, and exceptional performance.
Featuring flexible, curved, and right-angle screen options ideal for advertising, events, and public displays.
Technical Specifications
| Type Number | P3.91 |
|---|---|
| Dimension | 500×500×84 mm, 500×1000×84mm |
| Max. Power | 200W |
| Brightness | ≥3500 CD/㎡ |
| LED Standard | SMD1921 |
| Viewing Angle | 120° |
| Protection Level | IP65 |
| Refresh Rate | ≥7680Hz |
| Pixel Pitch | 3.91 mm |
| Scan Mode | 1/16 Scan |
| Pixel Density | 65536 Dot/㎡ |
| Grey Level | 14-16 Bit |
| Working Temperature | -20°C to 60°C |
| Life Span | ≥50,000 Hours |
| Working Voltage | AC 220V/(110V)±15% |
Production Process
Installation Case Studies
Manufacturer Profile
About Charming LED
Charming LED is a leading manufacturer of digital signs and billboards with over 20 years of industry experience.
Whether you need a digital LED sign or a billboard, our expertise ensures you make the best choice for your business.
Stand out from competitors with our vibrant, eye-catching LED products and electronic signage solutions.
Contact our digital LED sign experts today!
