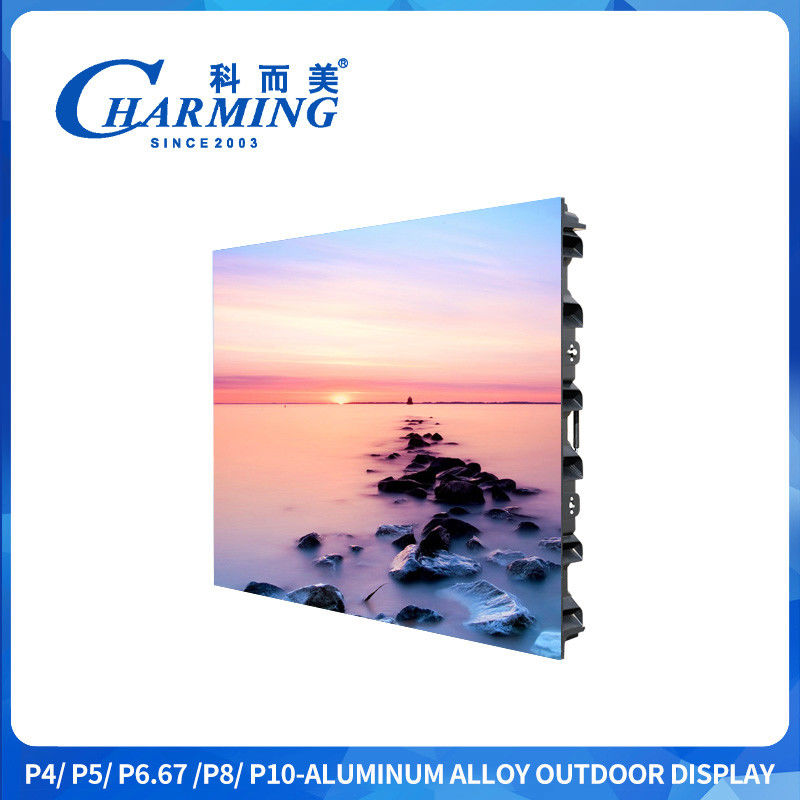

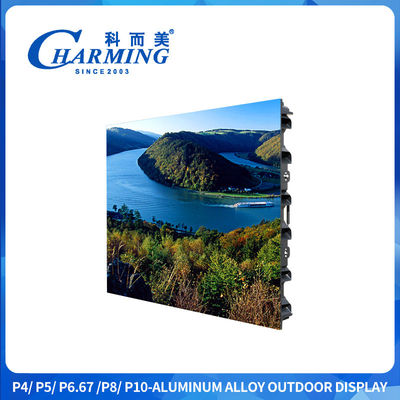

IP65 Waterproof 5500nits Brightness 7680Hz Refresh Rate Outdoor LED Display for Stadium Events
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P8 |
| Document: | P3-P4-P5-P6.66-P8-P10 outdo...or.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Grey Scale（bits）: | 14-16 | Cabinet Max. Power(W): | 900 |
|---|---|---|---|
| IP Grade: | IP65 | Best Viewing Distance（M）: | ≥5 |
| Cabinet Weight（KG）: | 26.6 | Screen Working Temperature: | -20~+60℃ |
| Screen Brightness（CD/㎡ ）: | ≥5500 | Refresh Frequency（Hz）: | 1920/7680 |
| LED Standard: | SMD3535 | Miaintenance Method: | Back-mantenimiento |
| Control Distance: | HSYV：100m；Fibra Monomodo：10 Km | ||
| Highlight: | IP65 Waterproof Outdoor LED Display,5500nits Brightness LED Video Wall,7680Hz Refresh Rate Outdoor LED Screen |
||
Product Description
High-performance outdoor LED display featuring IP65 waterproof rating, 5500nits brightness, and 7680Hz refresh rate. Constructed with durable magnesium alloy for stadium events and outdoor applications.
| Specification | P4 Model | P5 Model |
|---|---|---|
| Pixel Density (Dot/m²) | 62,500 | 40,000 |
| Max Power (W) | 1200 | 900 |
| Brightness (CD/m) | ≥5500 | ≥5500 |
| LED Standard | SMD1921 | SMD1921 |
| Protection Level | IP65 | IP65 |
| Screen Resolution | 240×240 | 190×192 |
| Refresh Rate (Hz) | 1920/7680 | 1920/7680 |
| Pixel Pitch (MM) | 4MM | 5MM |
| Cabinet Weight (KG) | 28 | 26 |
| Grey Level | 14-16 Bit | 14-16 Bit |
| Life Span | ≥100,000 Hours | ≥100,000 Hours |
| Working Voltage | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
| Cabinet Material | Magnesium Alloy | Magnesium Alloy |
Since 2003, Charming Co., Ltd. has been at the forefront of entertainment lighting innovation, introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's premier entertainment LED brand, trusted by professionals worldwide.
- Innovation: Nearly 100 patents and counting
- Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
- Global Reach: 23 years of excellence across 170+ countries
True to our "Charming Achieve Beauty" vision, we continue to push boundaries in LED technology while maintaining our commitment to outstanding customer service.
We respond to all quote requests within 24 hours. For urgent inquiries, email or call us directly for prioritized service.
Sample orders are always welcome. Contact us with your requirements and we'll handle the rest.
Delivery times vary by order quantity and season. Small orders typically ship in 7-15 days; larger orders take approximately 30 days.
We offer flexible payment methods including T/T, PayPal, Ali Trade Assurance, and more.
All products include comprehensive documentation: operation manuals, software, test reports, and CAD drawings. Our products are CE and UL certified, meeting international quality standards.
We stand behind our quality with a comprehensive 2-year full warranty covering all displays, modules, and parts. We'll replace or repair any factory defect at no cost.
- Lifetime Maintenance: No labor fees - you only pay for replacement parts
- Free Training: Hands-on operation and maintenance training at our factory
- Complete Documentation: Manuals, software, test reports, and assembly drawings
- Expert Technical Support: Our team provides professional advice and assistance
