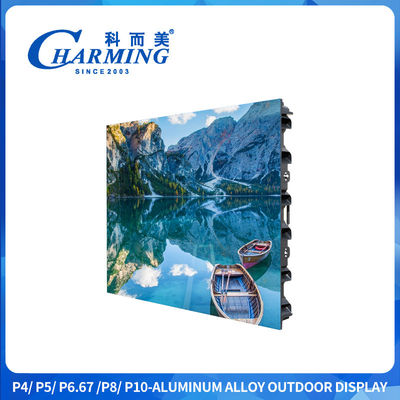

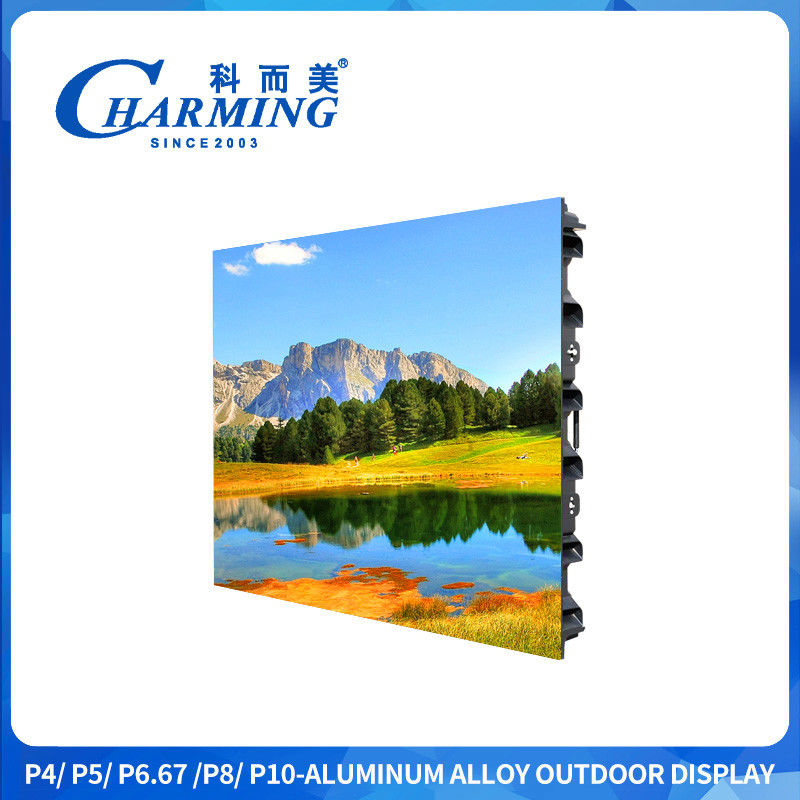

Outdoor LED Video Wall for Sports Events – IP65 Waterproof, 5500 Nits, High Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P4/5 |
| Document: | P3-P4-P5-P6.66-P8-P10 outdo...or.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| IP Grade: | IP65 | Screen Resolution: | 120*120 |
|---|---|---|---|
| Pixel Density: | 15625 | Screen Brightness（CD/㎡ ）: | ≥5500 |
| Grey Scale（bits）: | 14-16 | Refresh Frequency（Hz）: | 1920/7680 |
| Cabinet Weight（KG）: | 26.6 | LED Standard: | SMD3535 |
| Cabinet Max. Power(W): | 900 | Best Viewing Distance（M）: | ≥8 |
| Miaintenance Method: | Back-mantenimiento | Screen Working Temperature: | -20~+60℃ |
| Control Distance: | HSYV：100m；Fibra Monomodo：10 Km | ||
Product Description
Designed specifically for sporting events, concerts, and outdoor entertainment venues, this high-resolution LED video wall delivers exceptional visual performance in demanding outdoor environments.
| Specification | P4 Model | P5 Model |
|---|---|---|
| Pixel Density (Dot/㎡) | 62,500 | 40,000 |
| Max Power (W) | 1,200 | 900 |
| Brightness (CD/m) | ≥5,500 | ≥5,500 |
| LED Standard | SMD1921 | SMD1921 |
| Protection Level | IP65 | IP65 |
| Screen Resolution | 240×240 | 190×192 |
| Refresh Rate (Hz) | 1920/7680 | 1920/7680 |
| Pixel Pitch (MM) | 4MM | 5MM |
| Cabinet Weight (KG) | 28 | 26 |
| Grey Level | 14-16 Bit | 14-16 Bit |
| Life Span | ≥100,000 Hours | ≥100,000 Hours |
| Working Voltage | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
| Cabinet Material | Magnesium Alloy | Magnesium Alloy |
Since 2003, Charming Co., Ltd. has revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.
- Innovation: Nearly 100 patents and counting
- Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
- Global Reach: 23 years of excellence across 170+ countries and areas
True to our "Charming Achieve Beauty" vision, we continue to push boundaries in LED technology while maintaining our commitment to outstanding customer service.
- Pricing? Reach out and we'll reply within 24 hours. In a rush? Just tell us - we'll speed it up.
- Samples available? You bet! Just let us know what you need and we'll sort it out.
- Shipping time? Depends on order size and season. Small orders: 7-15 days. Bigger ones: ~30 days.
- Payment options? Flexible - T/T, PayPal, Ali Trade Assurance, etc. Whatever works for you.
We provide comprehensive operation manuals, software, test reports, and technical documentation.
We can also provide all necessary certifications including CE, UL, and other international standards.
- 2-year full warranty - covers all displays, modules, and parts. Factory defects? We fix or replace them for free.
- Lifetime maintenance - no labor fees, ever. You only pay for replacement parts after the warranty ends.
- Free factory training - hands-on practice on operation and upkeep.
- Complete documentation package - manuals, software, test reports, and CAD drawings included.
- Expert support - our team is always around to offer professional advice whenever you need it.
