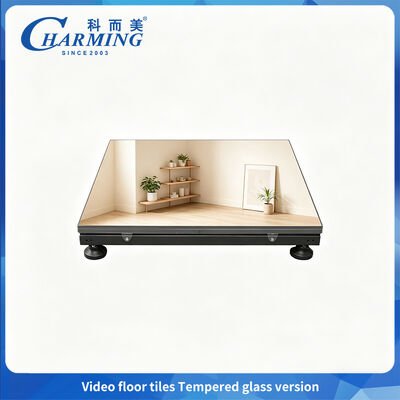

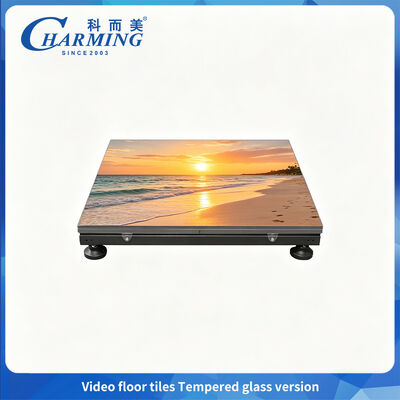

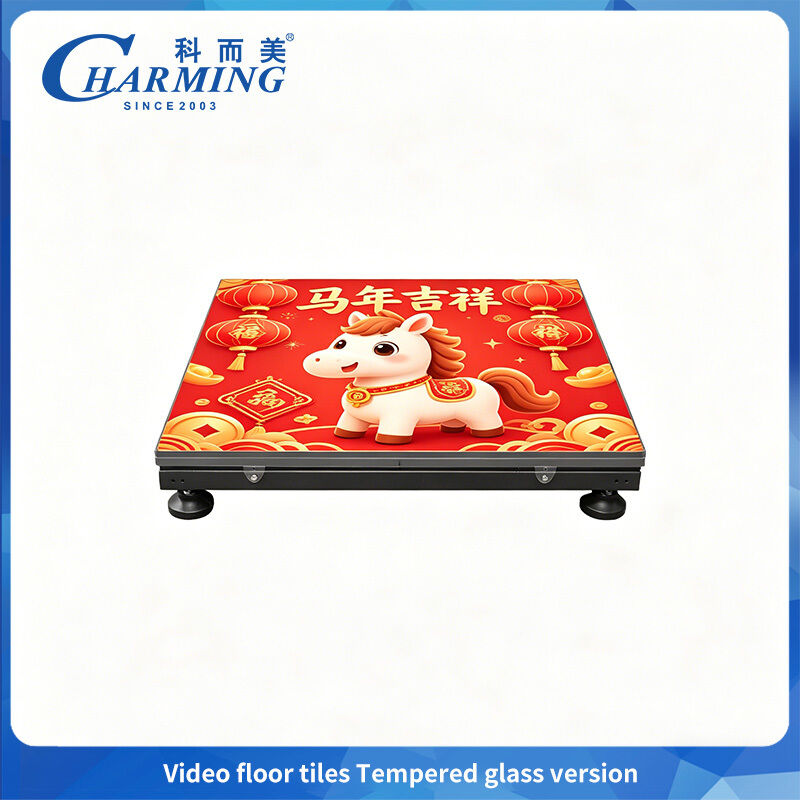

Tempered Glass LED Floor Tile providing IP65 waterproof protection and dual mounting options for stage performances and interactive exhibitions
Product Details:
| Place of Origin: | China |
| Brand Name: | CHARMING |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P2.604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 30 working days after payment |
| Payment Terms: | T/T,L/C,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Dimension: | 503.4x503.4x82.7±1MM | Pixel Density: | 147456Dot/㎡ |
|---|---|---|---|
| Grey Level: | 14-16 Bit | Cabinet Materia: | Iron |
| Scan Mode: | 1/24Scan | Working Temperature: | -20~60℃ |
| Life Span: | ≥50000 Hours | ||
| Highlight: | Tempered Glass LED Floor Tile,IP65 waterproof LED floor tile,Dual mounting LED stage display |
||
Product Description
Tempered Glass LED Floor Tile providing IP65 waterproof protection and dual mounting options for stage performances and interactive exhibitions
| Pixel Pitch | 2.604mm |
| Brightness |
1500CD/㎡
|
|
Refreshrate
|
7680Hz
|
| Cabinet Weight | 14.2 kg |
|
Protection level
|
Front IP65
|
| Max. Power | 200W |
| Maintenance |
Post-maintenance
|
| View angle | 140° |
Product Features
-
2.604mm fine pixel pitch delivers high-definition visuals with 147,456 dots/m² density, perfect for interactive floor displays and stage effects.
-
8mm thickened tempered glass cover withstands over 500kg/m² load capacity, wear-resistant and safe for high-traffic performance areas.
-
Dual installation modes support both foot cup and track mounting, improving on-site efficiency with flexible setup options.
-
360° full protection with tempered glass plus potting process ensures uniform thermal conductivity and reduces color cast.
-
Front IP65-rated waterproof and dustproof design, ideal for indoor and outdoor stage applications with reliable durability.
Product Gallery
Want to Know more details about this product
