LED P3.91 Outdoor Giant Stage Background Led Video Wall P2.6 P2.9 P3.91 Seamless Splicing Rental LED Display Screen

LED P3.91 Outdoor Giant Stage Background Led Video Wall P2.6 P2.9 P3.91 Seamless Splicing Rental LED Display Screen

Product Specifications

500×500mm Cabinet – P3.91 Models

Other pixel pitches (P1.953, P2.604, P2.976) available upon request – please contact sales for detailed specifications.

Product Introduction

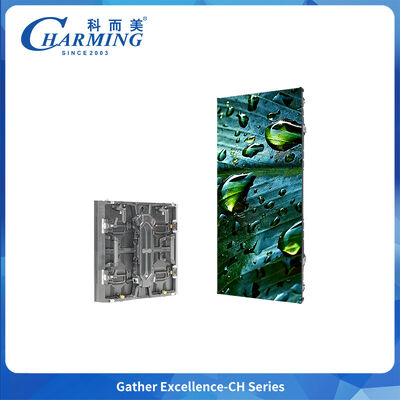

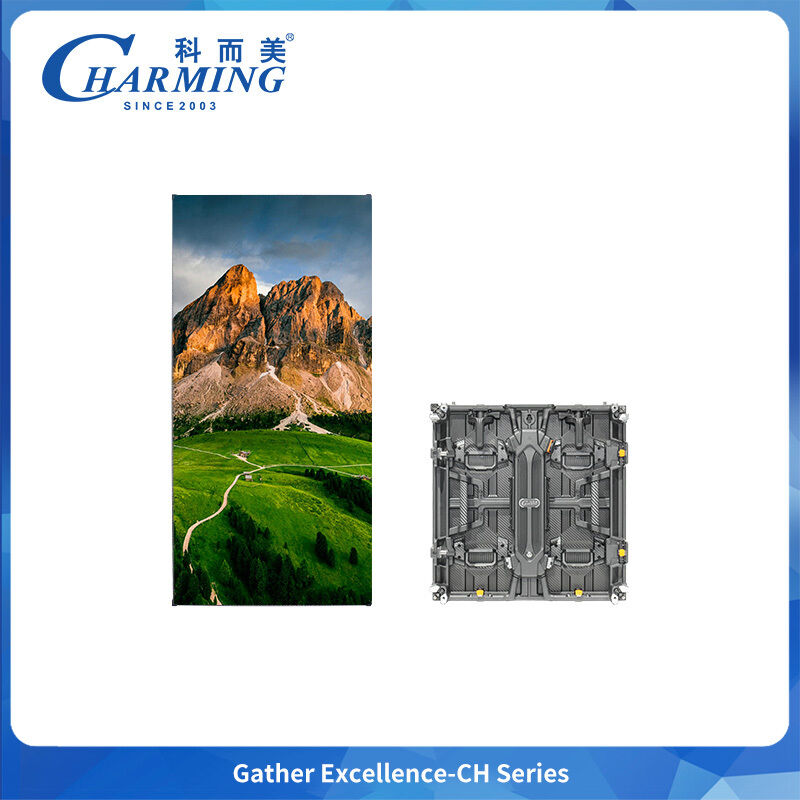

The CharmingLED CH Series redefines outdoor visual technology with a robust design built to excel in harsh conditions. Offering four distinct cabinet styles—Standard, Curved, Flexible, and Right-Angle—this series provides unmatched adaptability for creative staging, touring events, and permanent architectural displays. Engineered with a slim 84mm profile and lightweight die-cast aluminum construction, it combines effortless handling with rugged IP65-rated weather protection, ensuring stunning imagery and reliable operation in any setting.

Product Features

1. Ultra-Thin & Lightweight Design

Measuring just 84mm deep—or 87mm for flexible variants—the CH Series stands out for its remarkably slender build. Weighing only 7.9kg per standard, curved, or flexible cabinet, and 7.5kg per right-angle unit, the series allows for easy handling, speedy rigging, and one-person installation without compromising structural integrity.

2. Four Cabinet Variants for Creative Freedom

• Regular Cabinet: Standard flat display for conventional setups.

• Curved Cabinet: Supports outer curvature up to 10° (36 cabinets form a full circle) and inner curvature up to 15° (24 cabinets form a full circle), with a minimum diameter of 5.8m.

• Flexible Cabinet: Adjustable curvature of ±22.5° for perfect arcs; 8 cabinets can form a cylinder with a minimum diameter of just 1.27m.

• Right-Angle Cabinet: Enables 90° column splicing for corner installations and creative architectural integration.

3. Full-Range Interlocking System

Every cabinet variant—Regular, Curved, Flexible, and Right-Angle—is fully cross-compatible within the system. Flexible cabinets integrate effortlessly with both standard and curved units on either side, while the architecture further accommodates offset, staggered, and non-standard vertical or horizontal configurations. This comprehensive interoperability unlocks virtually limitless design potential for distinctive stage layouts and avant-garde productions.

4. One-Click Degaussing – Front & Rear Maintenance
Innovative one-click degaussing mechanism simplifies module removal:

• Loosen cabinet captive screws → screws pop up via spring force

• Push up the module handle → lever the module off magnetic attachment

• Complete degaussing and removal in seconds
  Supports both front and rear maintenance for maximum service convenience.

5. Die-Cast Aluminum Alloy Cabinet & Control Box

Reinforced with widened and thickened bezels, the cabinet delivers exceptional structural integrity and supports vertical stacking up to 15 meters. Meanwhile, the control box features a ribbed, textured surface that promotes efficient airflow and heat dissipation, guaranteeing reliable performance even under intense solar exposure and elevated ambient temperatures.

6. Integrated Hard Connection & Modular Design

The module and power control box are independently detachable, utilizing an integrated hard-wired interface with a foolproof, keyed connection to prevent incorrect assembly. The module's waterproof cover is field-replaceable, while the modules themselves are interchangeable left-to-right—significantly streamlining spare parts inventory and accelerating on-site servicing.

7. Semi-Automatic Corner Guard & Control Box Latch

Optional semi-automatic corner guard with one-press ejection simplifies maintenance access. The control box features a large latch that auto-ejects when pressed, reducing manual steps and saving valuable service time.

8. Versatile Installation Methods
Supports multiple installation approaches to suit any project requirement:

• Hoisting – for suspended stage and event setups

• Rental Truss Installation – quick assembly for touring and rental applications

• Fixed Installation – permanent dragon skeleton mounting for architectural displays

Company Profile

Established in 2003, CharmingLED stands as a globally recognized high-technology enterprise dedicated to the research, development, manufacturing, and distribution of premium LED display solutions. Headquartered in Foshan, China, with international branches including C&E Tech USA Inc. and Madrix China, the company has built a worldwide clientele of over 20,000 customers spanning more than 150 countries. CharmingLED remains steadfast in its commitment to delivering cutting-edge, quality-driven products alongside comprehensive technical support and after-sales service.

Warranty & After-Sales Support

• Warranty Period: Comprehensive 2-year warranty covering all displays, modules, and components. Free replacement or repair for any defective parts during this period.

• Lifetime Maintenance: Beyond the warranty period, we provide lifetime maintenance services, charging only for raw materials.

• Technical Training: Free factory training on operation and maintenance procedures, accompanied by full documentation including user manuals, software, test reports, and CAD installation drawings.

Customer Support & FAQ

Q1: What is the difference between the Curved and Flexible cabinets?
A: Curved cabinets have a fixed curvature (outer up to 10°, inner up to 15°) ideal for large-radius arcs. Flexible cabinets allow on-site adjustable curvature of ±22.5°, enabling tighter arcs and even cylindrical formations with a minimum diameter of 1.27m.

Q2: Can I mix different cabinet types in one installation?
A: Yes. The CH Series full-range interlocking system allows Regular, Curved, Flexible, and Right-Angle cabinets to connect seamlessly, enabling complex and creative designs.

Q3: How does the one-click degaussing maintenance work?
A: Simply loosen the captive screws (they pop up automatically), push up the module handle, and lever the module off the magnetic attachment. The process is quick, tool-friendly, and supports both front and rear access.

Q4: What is the maximum hoisting height for this series?
A: The die-cast aluminum alloy cabinet supports a maximum hoisting height of 15 meters with proper rigging.

Q5: What are the MOQ and lead times?
A: We support OEM customization with no minimum order quantity (MOQ) restrictions. Standard product lead times vary by order volume – please contact our sales team for specific delivery schedules.
