Indoor P2.9 500x1000mm Full Color Panel LED Screen Display 2.9mm Pixel 5V SDK 1000nits Brightness Airport Retail Store Elevator

Indoor P2.9 500x1000mm Full Color Panel LED Screen Display 2.9mm Pixel 5V SDK 1000nits Brightness Airport Retail Store Elevator

Product Specifications

500×500mm Cabinet – P3.91 Models

Other pixel pitches (P1.953, P2.604, P2.976) available upon request – please contact sales for detailed specifications.

Product Introduction

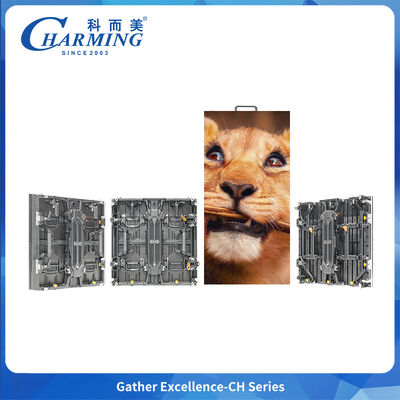

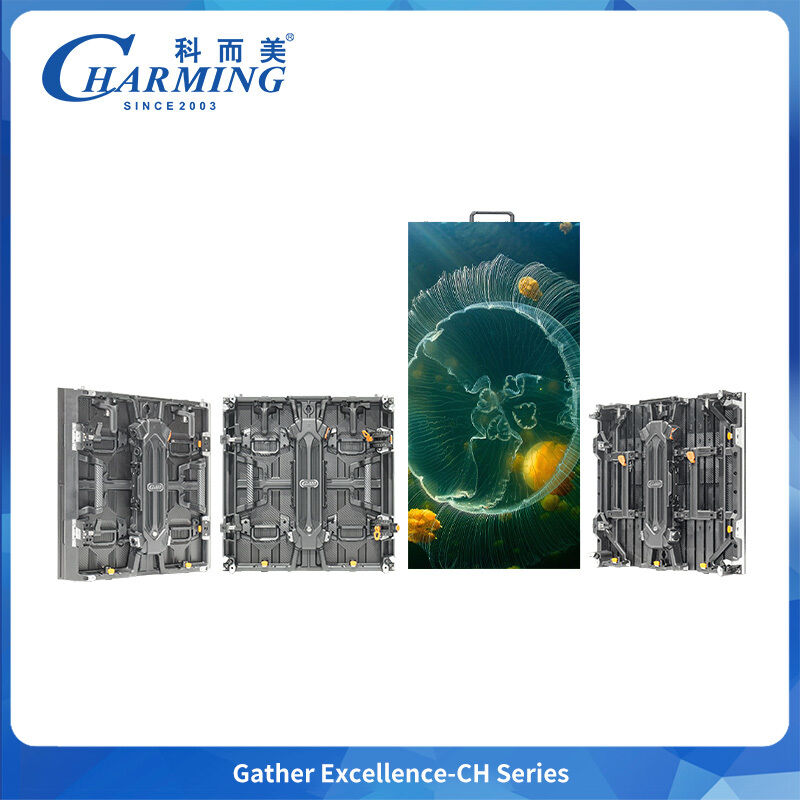

The CharmingLED® CH Series is a high-performance outdoor LED display built to excel in the most challenging conditions. Available in Regular, Curved, Flexible, and Right-Angle cabinet options, the series provides unmatched versatility for creative stage designs, rental productions, and fixed outdoor installations. Featuring a slim 84mm profile, a lightweight die-cast aluminum frame, and an IP65 weatherproof rating, the CH Series combines rugged durability, striking visuals, and user-friendly operation in one comprehensive solution.

Product Features

1. Ultra-Thin & Lightweight Design
With a cabinet thickness of only 84mm (87mm for flexible versions), the CH Series achieves an exceptionally slim profile. Weighing just 7.9kg for regular/curved/flexible cabinets and 7.5kg for right-angle cabinets, it enables effortless transportation, rigging, and installation by a single operator.

2. Four Cabinet Variants for Creative Freedom

• Regular Cabinet: Standard flat display for conventional setups.

• Curved Cabinet: Supports outer curvature up to 10° (36 cabinets form a full circle) and inner curvature up to 15° (24 cabinets form a full circle), with a minimum diameter of 5.8m.

• Flexible Cabinet: Adjustable curvature of ±22.5° for perfect arcs; 8 cabinets can form a cylinder with a minimum diameter of just 1.27m.

• Right-Angle Cabinet: Enables 90° column splicing for corner installations and creative architectural integration.

3. Full-Range Interlocking System
All cabinet types – Regular, Curved, Flexible, and Right-Angle – are fully interoperable. Flexible cabinets can seamlessly connect with regular and curved cabinets on both sides. The system also supports offset and irregular vertical/horizontal assemblies, providing unlimited creative possibilities for unique stage designs.

4. One-Click Degaussing – Front & Rear Maintenance
Innovative one-click degaussing mechanism simplifies module removal:

• Loosen cabinet captive screws → screws pop up via spring force

• Push up the module handle → lever the module off magnetic attachment

• Complete degaussing and removal in seconds
  Supports both front and rear maintenance for maximum service convenience.

5. Die-Cast Aluminum Alloy Cabinet & Control Box

The cabinet features widened and thickened edges for increased structural integrity, supporting hoisting heights of up to 15 meters. The control box is designed with a ribbed texture that enhances heat dissipation, ensuring reliable performance even in high-temperature outdoor environments.

6. Integrated Hard Connection & Modular Design

The module and power control box are detachable separately and connected via an integrated hard-connection system with foolproof design. The module waterproof cover is replaceable, and modules are interchangeable left to right, streamlining spare parts inventory and simplifying on-site maintenance.

7. Semi-Automatic Corner Guard & Control Box Latch

An optional semi-automatic corner guard enables one-press ejection for quick maintenance access. The control box is equipped with a large latch that auto-ejects when pressed, reducing manual operations and saving valuable service time.

8. Versatile Installation Methods

Supports a variety of installation approaches to accommodate diverse project needs:

Hoisting – ideal for suspended stage and event setups

Rental Truss Installation – enables rapid assembly for touring and rental applications

Fixed Installation – permanent dragon-skeleton mounting for architectural displays

Company Profile

Founded in 2003, CharmingLED is a globally recognized high-tech enterprise dedicated to the research, development, manufacturing, and marketing of premium LED display solutions. Headquartered in Foshan, China, with international offices including C&E Tech USA Inc. and Madrix China, the company serves over 20,000 customers across more than 150 countries and regions. Committed to innovation and quality, CharmingLED delivers cutting-edge products backed by comprehensive technical support and responsive service.

Warranty & After-Sales Support

• Warranty Period: Comprehensive 2-year warranty covering all displays, modules, and components. Free replacement or repair for any defective parts during this period.

• Lifetime Maintenance: Beyond the warranty period, we provide lifetime maintenance services, charging only for raw materials.

• Technical Training: Free factory training on operation and maintenance procedures, accompanied by full documentation including user manuals, software, test reports, and CAD installation drawings.

Customer Support & FAQ

Q1: What is the difference between the Curved and Flexible cabinets?
A: Curved cabinets feature a fixed curvature (outer up to 10°, inner up to 15°), making them ideal for large-radius arcs. Flexible cabinets, on the other hand, allow on-site adjustable curvature of ±22.5°, enabling tighter arcs and even cylindrical formations with a minimum diameter of 1.27m.

Q2: Can I mix different cabinet types in one installation?
A: Yes. The CH Series full-range interlocking system ensures seamless connectivity among Regular, Curved, Flexible, and Right-Angle cabinets, allowing for complex and creative design configurations.

Q3: How does the one-click degaussing maintenance work?
A: Simply loosen the captive screws (which pop up automatically), push up the module handle, and lever the module off the magnetic attachment. The process is quick, tool-friendly, and supports both front and rear access for added convenience.

Q4: What is the maximum hoisting height for this series?
A: With proper rigging, the die-cast aluminum alloy cabinet supports a maximum hoisting height of 15 meters.

Q5: What are the MOQ and lead times?
A: We support OEM customization with no minimum order quantity (MOQ) restrictions. Lead times for standard products vary by order volume – please contact our sales team for specific delivery schedules.

Pricing & Ordering Information

• Quote Response: We typically provide formal quotations within 24 hours of inquiry.

• Payment Methods: T/T, PayPal, Alipay, and other negotiable payment options.

• Shipping Methods: Sea freight, air freight, or express delivery (EMS, UPS, DHL, TNT, FedEx, etc.). We accept EXW, FOB, CFR, CIF, DDU, and DDP shipping terms.
