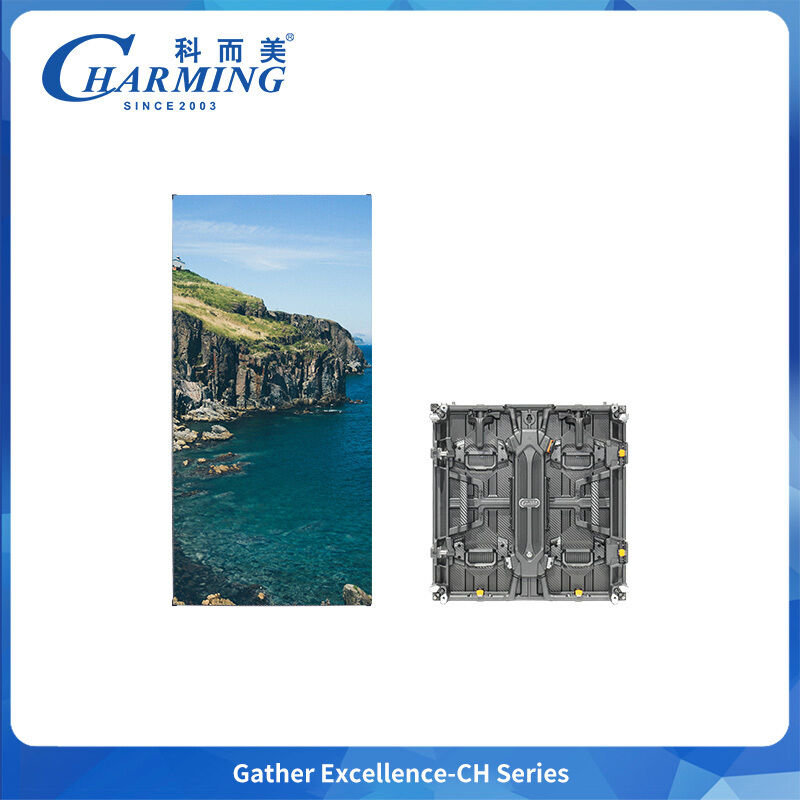

CH Series P1.953/P2.604/P2.976/P3.91 Outdoor LED Display – Regular / Curved / Flexible / Right-Angle Versions

CH Series P1.953/P2.604/P2.976/P3.91 Outdoor LED Display – Regular / Curved / Flexible / Right-Angle Versions

Product Specifications

500×500mm Cabinet – P3.91 Models

Other pixel pitches (P1.953, P2.604, P2.976) available upon request – please contact sales for detailed specifications.

Product Introduction

The CharmingLED® CH Series is a versatile outdoor LED display solution engineered for superior performance in demanding environments. Available in Regular, Curved, Flexible, and Right-Angle cabinet configurations, this series offers unparalleled design flexibility for creative stage setups, rental events, and permanent outdoor installations. With an ultra-thin profile of just 84mm, lightweight die-cast aluminum alloy construction, and IP65 weatherproof rating, the CH Series delivers exceptional durability, visual impact, and ease of use.

Product Features

1. Ultra-Thin & Lightweight Design
With a cabinet thickness of only 84mm (87mm for flexible versions), the CH Series achieves an exceptionally slim profile. Weighing just 7.9kg for regular/curved/flexible cabinets and 7.5kg for right-angle cabinets, it enables effortless transportation, rigging, and installation by a single operator.

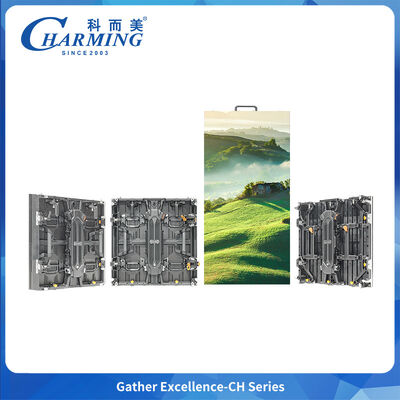

2. Four Cabinet Variants for Creative Freedom

• Regular Cabinet: Standard flat display for conventional setups.

• Curved Cabinet: Supports outer curvature up to 10° (36 cabinets form a full circle) and inner curvature up to 15° (24 cabinets form a full circle), with a minimum diameter of 5.8m.

• Flexible Cabinet: Adjustable curvature of ±22.5° for perfect arcs; 8 cabinets can form a cylinder with a minimum diameter of just 1.27m.

• Right-Angle Cabinet: Enables 90° column splicing for corner installations and creative architectural integration.

3. Full-Range Interlocking System
All cabinet types – Regular, Curved, Flexible, and Right-Angle – are fully interoperable. Flexible cabinets can seamlessly connect with regular and curved cabinets on both sides. The system also supports offset and irregular vertical/horizontal assemblies, providing unlimited creative possibilities for unique stage designs.

4. One-Click Degaussing – Front & Rear Maintenance
Innovative one-click degaussing mechanism simplifies module removal:

• Loosen cabinet captive screws → screws pop up via spring force

• Push up the module handle → lever the module off magnetic attachment

• Complete degaussing and removal in seconds
  Supports both front and rear maintenance for maximum service convenience.

5. Die-Cast Aluminum Alloy Cabinet & Control Box
The cabinet features widened and thickened edges for enhanced structural strength, supporting a maximum hoisting height of 15 meters. The control box incorporates a ribbed texture design for superior heat dissipation, ensuring stable operation even in high-temperature outdoor environments.

6. Integrated Hard Connection & Modular Design
The module and power control box are detachable separately, featuring an integrated hard connection with foolproof design. The module waterproof cover is replaceable, and modules are left-right interchangeable, simplifying spare parts management and field repairs.

7. Semi-Automatic Corner Guard & Control Box Latch
Optional semi-automatic corner guard with one-press ejection simplifies maintenance access. The control box features a large latch that auto-ejects when pressed, reducing manual steps and saving valuable service time.

8. Versatile Installation Methods
Supports multiple installation approaches to suit any project requirement:

• Hoisting – for suspended stage and event setups

• Rental Truss Installation – quick assembly for touring and rental applications

• Fixed Installation – permanent dragon skeleton mounting for architectural displays

Company Profile

Founded in 2003, CharmingLED (HARMING) is a globally recognized high-tech enterprise specializing in the R&D, manufacturing, and marketing of premium LED display solutions. With headquarters in Foshan, China, and international offices including C&E Tech USA Inc. and Madrix China, the company serves over 20,000 customers across more than 150 countries and regions. CharmingLED is committed to delivering innovative, high-quality products backed by comprehensive technical support and service.

Warranty & After-Sales Support

• Warranty Period: Comprehensive 2-year warranty covering all displays, modules, and components. Free replacement or repair for any defective parts during this period.

• Lifetime Maintenance: Beyond the warranty period, we provide lifetime maintenance services, charging only for raw materials.

• Technical Training: Free factory training on operation and maintenance procedures, accompanied by full documentation including user manuals, software, test reports, and CAD installation drawings.

Customer Support & FAQ

Q1: What is the difference between the Curved and Flexible cabinets?
A: Curved cabinets have a fixed curvature (outer up to 10°, inner up to 15°) ideal for large-radius arcs. Flexible cabinets allow on-site adjustable curvature of ±22.5°, enabling tighter arcs and even cylindrical formations with a minimum diameter of 1.27m.

Q2: Can I mix different cabinet types in one installation?
A: Yes. The CH Series full-range interlocking system allows Regular, Curved, Flexible, and Right-Angle cabinets to connect seamlessly, enabling complex and creative designs.

Q3: How does the one-click degaussing maintenance work?
A: Simply loosen the captive screws (they pop up automatically), push up the module handle, and lever the module off the magnetic attachment. The process is quick, tool-friendly, and supports both front and rear access.

Q4: What is the maximum hoisting height for this series?
A: The die-cast aluminum alloy cabinet supports a maximum hoisting height of 15 meters with proper rigging.

Q5: What are the MOQ and lead times?
A: We support OEM customization with no minimum order quantity (MOQ) restrictions. Standard product lead times vary by order volume – please contact our sales team for specific delivery schedules.

Pricing & Ordering Information

• Quote Response: We typically provide formal quotations within 24 hours of inquiry.

• Payment Methods: T/T, PayPal, Alipay, and other negotiable payment options.

• Shipping Methods: Sea freight, air freight, or express delivery (EMS, UPS, DHL, TNT, FedEx, etc.). We accept EXW, FOB, CFR, CIF, DDU, and DDP shipping terms.

Packaging Options
