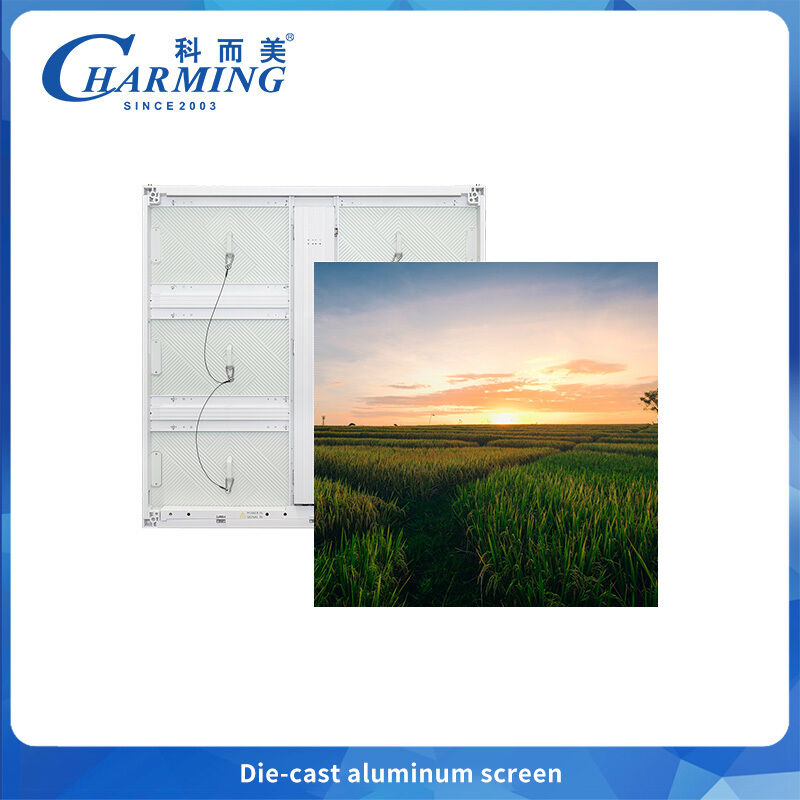

Weatherproof Outdoor LED Video Wall P6.66 IP65 All Aluminum Frame Salt Resistant and Heat Dissipation
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P6.66 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Type Number: | P6.66 | Cabinet Size: | 960*960MM |
|---|---|---|---|
| IP Grade: | IP65 | Screen Brightness: | ＞6500CD/㎡ |
| Refresh Frequency: | ≥3840Hz | Pixel Pitch: | 6.66MM |
| Cabinet Weight: | 25KG | Pixel Density: | 22500Dot/㎡ |
| LED Size: | SMD2727 | Scan Type: | 1/6Scan |
| Life Span: | 100,000 Hours | Operation Temperature: | -20~50℃ |
| GreyScale: | 14bit | Operating Humidity: | 10%~95%RH |
| Highlight: | Weatherproof Outdoor LED Video Wall P6.66,IP65 All Aluminum Frame LED Wall,Salt Resistant Outdoor LED Display |
||
Product Description
| Type Number | P6.66 |
| Dimension(MM) | 960*960*77MM |
| Max.Power(W) | 680W/m² |
| Ave.power consumption | 240W/m² |
| Brightness(CD/m) | ≥6000 CD/㎡ |
| LED Standard | SMD2727 |
| Viewing Angle | 140° |
| Protection Level | IP65 |
| Refresh Rate(Hz) | ≥3840Hz |
| Pixel Pitch(MM) | 6.66MM |
| Scan Mode | 1/6Scan |
| Pixel Density(Dot/m) | 22500Dot/㎡ |
| Grey Level | 14Bit |
| Working Temperature | -20~50°C |
| Life Span | 100000 Hours |
| Working Voltage | AC 110-240 50-60HZ |
1. Can I get any size LED display?
Sizes are based on standard module and cabinet dimensions. We'll help recommend the best configuration for your space.
2. How do I install the display?
We provide detailed installation drawings and offer remote guidance via TeamViewer to assist you step by step.
3. How do I place an order?
Simply let us know your required screen size and installation location. We'll then customize the right solution for you.
4. How is it shipped?
We offer both air and sea freight. For larger orders, sea shipping is more economical and highly recommended.
5. What payment methods do you accept?
We accept T/T, Western Union, and recommend Ali Trade Assurance for secure and convenient transactions.
We offer a 2-year full warranty on all displays, modules, and components — covering free replacement or repair of any factory defects.
For lifetime maintenance, we charge only for raw materials — no service fees.
We also provide:
-
Free hands-on training at our factory on LED screen operation and maintenance
-
Complete documentation package: user manuals, software, test reports, and CAD assembly drawings
-
Expert technical advice to support your project from start to finish
