Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance

Product Details:

Place of Origin: China
Brand Name: Charming
Certification: CE,ROHS,LVD,EMC,CB,BIS,UL
Model Number: 1.25

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton Case,Wooden Case,Flight Case
Delivery Time: 7 Working Days after Payment
Payment Terms: Western Union,L/C,T/T,Paypal,Cash
Supply Ability: 10000 PCS per week
Get Best Price Contact Now

Detail Information

Cabinet Size: 320×640×61mm /480X640x61mm Type Number: P1.25
Pixel Pitch: 1.25MM Refresh Frequency: 3840Hz
Screen Brightness: 600CD/m² IP Grade: IP40
Cabinet Weight: 4.5/6.1KG Pixel Density: 640000 Dot/㎡
Operation Temperature: -20~50℃ Life Span: ≥50000 Hours
Operating Humidity: 10%~65%RH GreyScale: 14-16bit
Highlight:

Fine Pitch 8K LED Display Module

,

P1.25 LED Display with Magnetic Front

,

Fixed Installation LED Display 640x480mm

Product Description

Professional Fixed Installation LED Module P1.25 Fine Pitch, 8K, Magnetic Front-Maintenance Design


Specification

Type Number
1.25 P1.25
Dimension(MM) 480X640x61mm 320X640x61mm
Max.Power(W)
150W 100W
Maintenance Method front maintenance front maintenance
Brightness(CD/m)
                   600 CD/㎡
600 CD/㎡
LED Standard
SMD1010 SMD1010
Viewing Angle
140°
140°
Protection Level
IP40 IP40
Refresh Rate(Hz)
3840Hz
3840Hz
Pixel Pitch(MM)
1.25MM 1.25MM
Scan Mode
1/64Scan
1/64Scan
Pixel Density(Dot/m)
640000
640000
Grey Level
14Bit
14Bit
Working Temperature
-20~50°C
-20~50°C
Life Span
≥50000 Hours
≥50000 Hours
Working Voltage
AC 110V/220V, 50/60HZ
AC 110V/220V, 50/60HZ


Production Details

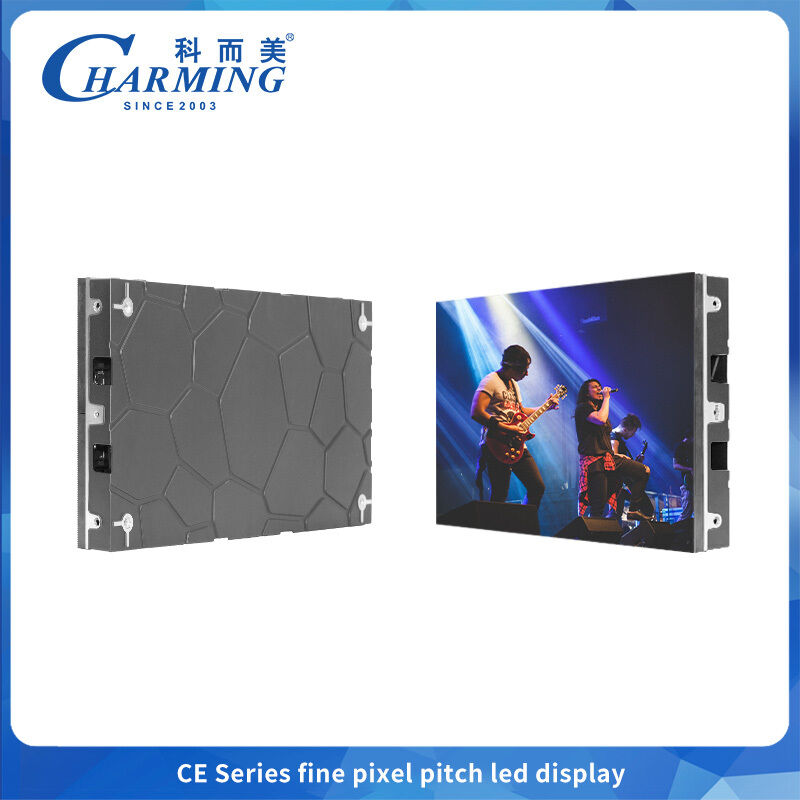

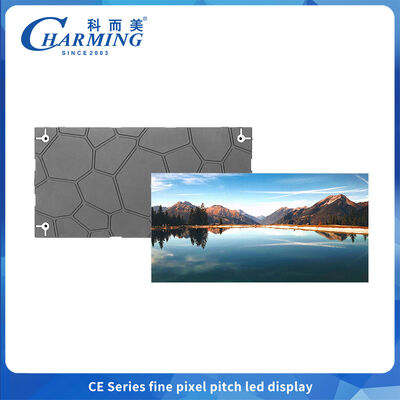

Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  0

Case Show

Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  1Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  2


Company Profile


In 2003, Charming Co., Ltd. revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.

What makes us special?
• Innovation: Nearly 100 patents and counting
• Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
• Global Reach: 22 years of excellence across 150+ countries

True to our "Charming Achieve Beauty" vision, we continue to push boundaries in LED technology while maintaining our commitment to outstanding customer service.


Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  3

Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  4

Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  5Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  6Fine Pitch 8K LED Display P1.25 640*480mm Fixed Installation Module with Magnetic Front Maintenance  7

Why choice Charming?


RICH EXPERIENCE

Founded in 2003, CharmingLED has grown into a leading manufacturer in LED application R&D and production. With a presence in over 150 countries and more than 20,000 successful projects completed, our track record speaks for itself.


FOCUS ON QUALITY

We partner with top-tier raw material suppliers and conduct rigorous incoming inspections using advanced R&D equipment. Our fully automated 6S production lines operate with micron-level precision, ensuring every product delivers consistent stability and long-term reliability.


RIGOROUS PROCESS CONTROL

Every step of our production — from material sourcing and assembly to aging testing and final shipment — is strictly monitored and fully traceable. We maintain flawless quality at each stage to ensure our products consistently meet both customer expectations and project specifications.
