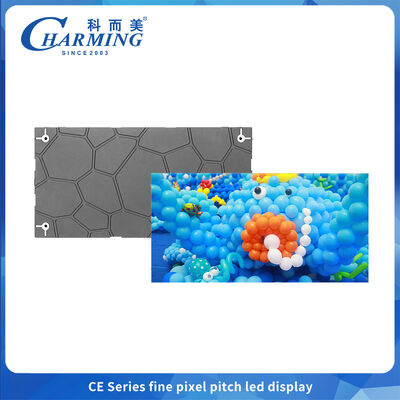

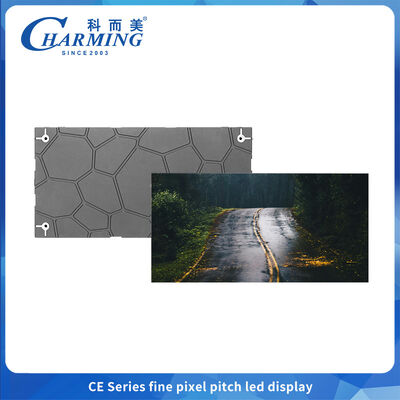

Fine Pitch P1.86-P2.5 Indoor 640*480mm LED Screen with Magnetic Front Service and Seamless Cabinet Size Blending
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | 1.86、2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Cabinet Size: | 640X640x61mm | Type Number: | P1.86 P2.5 |
|---|---|---|---|
| Screen Brightness: | 600-800CD/m² | Refresh Frequency: | 7680Hz |
| Pixel Pitch: | 1.86-2.5MM | Pixel Density: | 288906 Dot/㎡ |
| IP Grade: | IP40 | Cabinet Weight: | 8KG |
| Life Span: | ≥50000 Hours | Operation Temperature: | -20~50℃ |
| GreyScale: | 14-16bit | Operating Humidity: | 10%~65%RH |
| Highlight: | Fine Pitch P1.86 LED screen,Indoor LED display with magnetic front service,Seamless cabinet size blending LED screen |
||
Product Description
8K High Refresh Indoor LED Screen Magnetic Front Service, Seamless Blend of Different Cabinet Sizes
Specification
| Type Number | P1.86 | P2.5 |
|---|---|---|
| Dimension(MM) | 640X640x61mm | 640X640x61mm |
| Max.Power(W) | 200W | 200W |
| Maintenance Method | front maintenance | front maintenance |
| Brightness(CD/m) | 600 CD/㎡ | 800 CD/㎡ |
| LED Standard | SMD1515 | SMD2020 |
| Viewing Angle | 140° | 140° |
| Protection Level | IP40 | IP40 |
| Refresh Rate(Hz) | 7680Hz | 7680Hz |
| Pixel Pitch(MM) | 1.86MM | 2.5MM |
| Scan Mode | 1/43Scan | 1/32Scan |
| Pixel Density(Dot/m) | 288906 | 160000 |
| Grey Level | 14Bit | 14Bit |
| Working Temperature | -20~50°C | -20~50°C |
| Life Span | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | AC 110V/220V, 50/60HZ | AC 110V/220V, 50/60HZ |
Production Details
Case Show
FAQ
1. Sample order?
Yes, sample orders for modules and screens are welcome to check quality.
2. Warranty?
1-year standard warranty.
3. After-sales support?
24/7 online service + professional team for quick troubleshooting.
4. Custom size?
Sizes based on standard module/cabinet dimensions. We'll help find the best fit.
