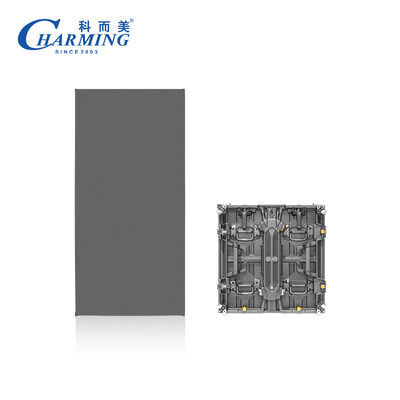

CH Series Outdoor Screen – Slim Start, Tough Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,CCC,CB,ROHS,SASO,BIS |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Fight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,cash,Western Union,Paypal |
| Supply Ability: | 900 PCS per week |
|
Detail Information |
|||
| Type Number: | P3.91 | Dimension: | 500*500*84mm |
|---|---|---|---|
| Brightness: | ≥3500 CD/㎡ | Scan Mode: | 1/16 Scan |
| Max Power: | 200W | Pixel Density: | 65536 Dot/㎡ |
| Highlight: | CH Series outdoor LED screen,slim outdoor video wall,tough LED display with warranty |
||
Product Description
CH Series Outdoor Screen – Slim Start, Tough Display
The CH Series features an ultra-thin cabinet thickness of just 84mm. Regular, curved, and flexible cabinets weigh only 7.9kg, while right-angle cabinets are even lighter at 7.5kg. This significantly reduces structural load requirements and shipping costs, making it ideal for building facades, stage side screens, and other weight-sensitive installations.
Product Details:
Product Feature:
-

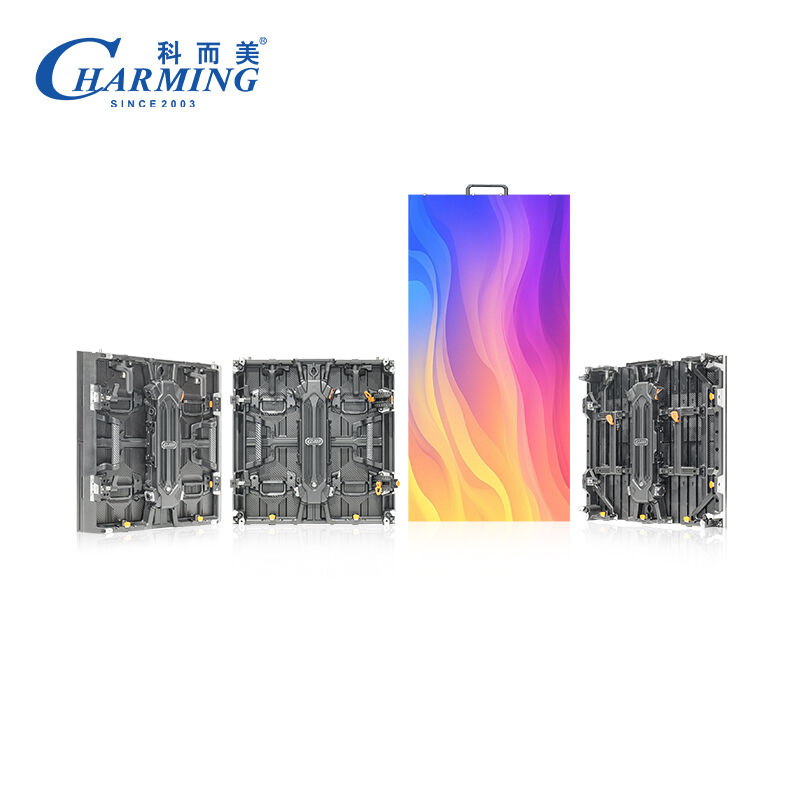

1. Flexible & Curved Configuration
Supports inner/outer curvature up to ±22.5° and cylindrical setups with a minimum diameter of 1.27m. Perfect for creative, and irregular outdoor installations.
2. One-Click Degaussing & Tool-Free Maintenance
Front and rear maintenance with spring-loaded captive screws and magnetic module attachment allows quick degaussing and removal, reducing downtime and labor costs.
3. Full-Range Interlocking & Custom Shapes
Regular, curved, right-angle, and flexible cabinets can interlock seamlessly. Supports U-shape, circular, offset, and 45° beveled assemblies for limitless design possibilities.
Scene Showcase:
Company Introduce:
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 23 years.
