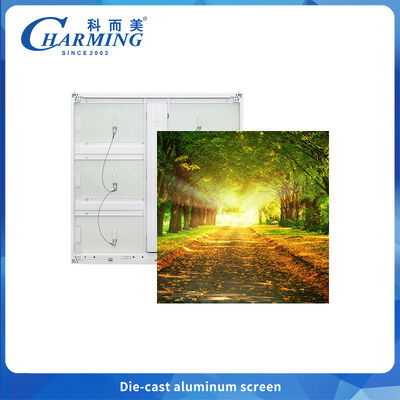

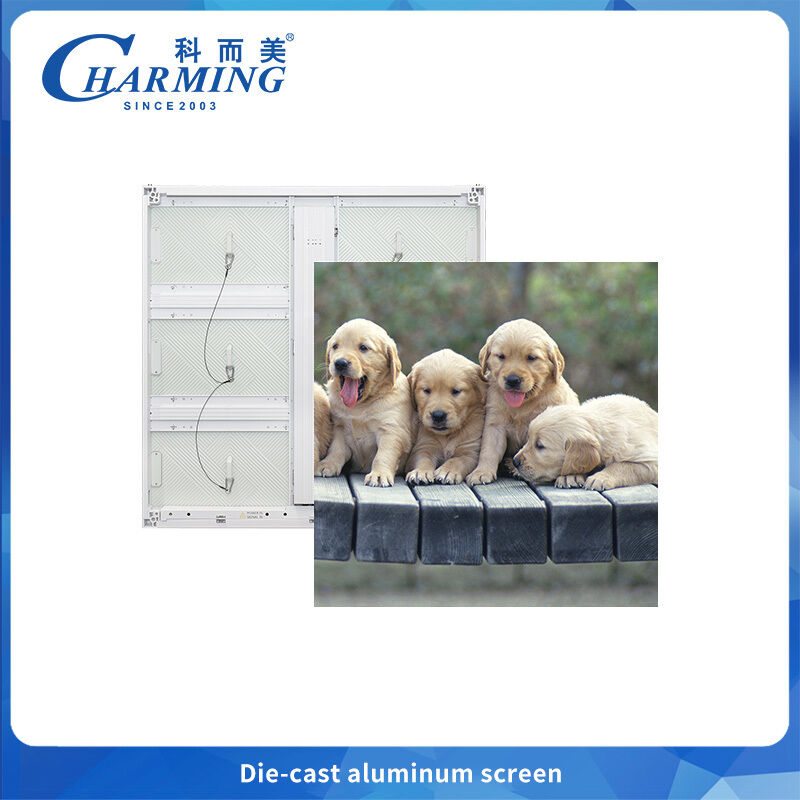

Outdoor LED Display P6.66 High brightness and wide color range IP65 waterproof rating Reliable Performance for Demanding Environments
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P6.66 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Highlight: | Outdoor LED Display P6.66 high brightness,IP65 waterproof LED video wall,Outdoor LED screen wide color range |
||
|---|---|---|---|
Product Description
室外LED显示屏——高亮度,宽色域,在严格苛求环境下性能可靠
产品详情:
自鳍片设计
IP65防水等级
锌合金快锁
高肋及宽色域
产品参数
| 橱柜尺寸 | 960*960毫米 |
| 像素尺寸 | 6.66毫米 |
| 像素密度 | 22500点/平方米 |
| LED尺寸 | SMD2727 |
| 扫描类型 | 1/6 扫描 |
| 阈值 | 14-16位 |
| 刷新频率 | 1920/7680赫兹 |
| 屏幕宽度 | ≥6500 CD/㎡ |
| 最佳观看距离 | ≥6.66M |
| 屏幕分辨率 | 144*1440 |
| 模块尺寸 | 480*320毫米 |
| 视角 | 120° |
| 机柜最大功率 | 900瓦 |
| 柜体重量 | 25公斤 |
| IPGrade | IP65 |
| 屏幕工作温度 | -20~+60℃ |
| 工作湿度 | 10%~90%RH |
安装详情
1. 将盒子裁成所需孔尺寸和形状,对准快锁固定盒子.
2 . 区分电源线和信号线,将电源线和信号线分别插入机箱的相应位置.
3 . 将主信号线和主电源线连接到电脑和控制器,调试屏幕后即可正常使用.
包裹详情
我们提供纸箱,木箱和航空箱供您选择,不同的产品将采用不同的包装,方便运输.
为了更好地保护屏幕.
