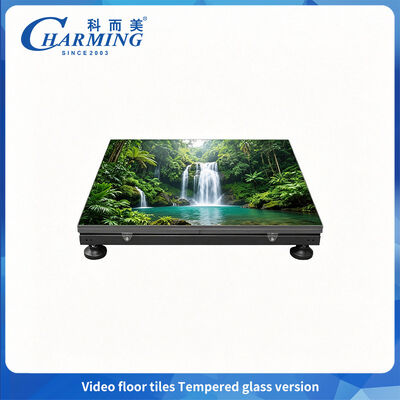

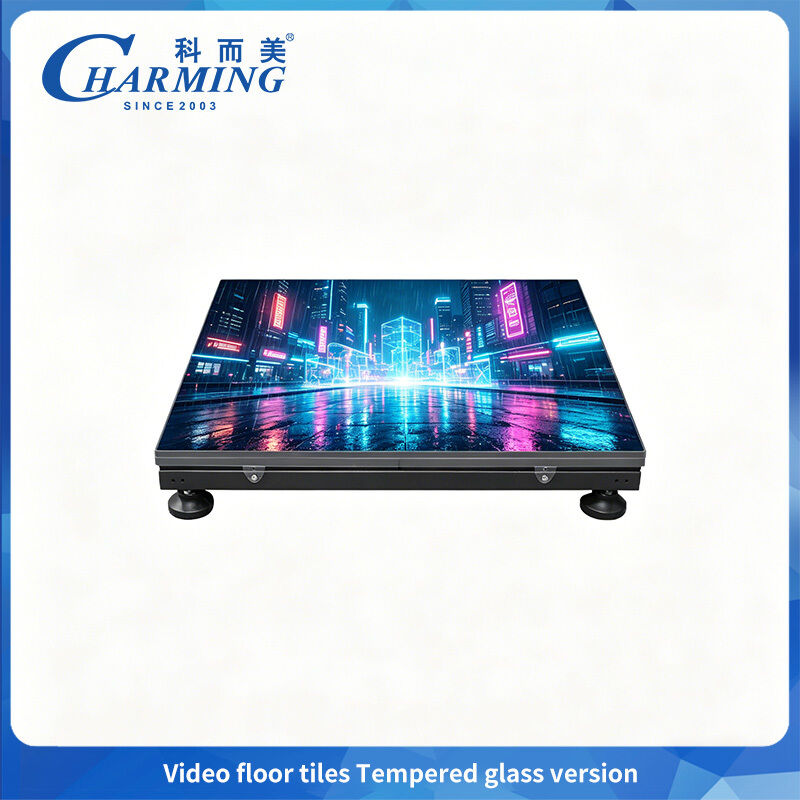

500x1000mm High Performance P3.91 LED Video Floor Tiles / Tempered Glass Interactive Dance Floor
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | Charmingled |
| Certification: | CE,/ ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 60 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union, |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Type Number: | /P2.604P2.976/P3.91 | Brightness: | 1500 CD/㎡ |
|---|---|---|---|
| Refresh Rate(Hz): | 1920/7680Hz | Cabinet Material: | Iron |
| Maintenance Method: | Post Maintenance | Life Span: | ≥100000 Hours |
| Highlight: | 500x500 LED outdoor advertising panel,8K resolution waterproof LED display,rental LED video wall panel |
||
Product Description
500x1000mm High Performance P3.91 LED Video Floor Tiles / Tempered Glass Interactive Dance Floor
Parameter:
500×1000mm Cabinet
| Attribute | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| Dimension (MM) | 503.4×1003.4×82.7±1MM | 503.4×1003.4×82.7±1MM | 503.4×1003.4×82.7±1MM |
| Max. Power (W) | 400W | 400W | 400W |
| Cabinet Weight (KG) | 28KG | 28KG | 28KG |
| Refresh Rate (Hz) | 7680Hz | 7680Hz | 1920/7680Hz |
| Pixel Pitch (MM) | 2.604mm | 2.976mm | 3.91mm |
| LED Standard | SMD1415 | SMD1415 | SMD1921 |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan |
| Pixel Density (Dot/m²) | 147456 Dot/m² | 112896 Dot/m² | 65536 Dot/m² |
| Brightness (CD/m²) | 1500CD/m² | 1500CD/m² | 1500CD/m² |
| Viewing Angle | 140° | 140° | 140° |
| Protection Level | Front IP65 | Front IP65 | Front IP65 |
| Cabinet Material | Iron | Iron | Iron |
| Maintenance Method | Post-maintenance | Post-maintenance | Post-maintenance |
| Grey Level | 14-16 Bit | 14-16 Bit | 14-16 Bit |
| Working Temperature | -20~60℃ | -20~60℃ | -20~60℃ |
| Working Humidity | 10%~65%RH | 10%~65%RH | 10%~65%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | AC220V,50/60HZ | AC220V,50/60HZ | AC220V,50/60HZ |
Product Introduction
CharmingLED® presents its Tempered Glass LED Video Floor Tiles, engineered specifically for high-traffic, heavy-load rental and permanent installation applications. Featuring 8mm thickened tempered glass combined with a full potting process, this series achieves an impressive load capacity of ≥500kg/m² with 360° all-round LED protection. The product effectively addresses common industry such as fragility, color cast, and complex installation, making it an ideal display solution for stage performances, auto shows, nightclubs, and large-scale interactive venues.
Product Features
1. Superior Load-Bearing Capacity
The panel is crafted with 8mm thickened tempered glass without any metal bezel, delivering exceptional flatness and seamless splicing. With a tested load capacity of ≥500kg/m², it is highly wear-resistant and safe, easily handling intense foot traffic and vehicle drive-over scenarios.
2. Tempered Glass + Full Potting Dual Protection
The integration of tempered glass cover and full potting process provides 360° protection for LED diodes. This not only significantly enhances LED durability and waterproof performance (Front IP65) but also ensures uniform thermal conductivity, effectively reducing color cast caused by temperature variations and maintaining consistent color reproduction.
3. Flexible Installation – Dual Mounting Modes
Breaking through traditional installation limitations, the system supports both foot cup mounting and track mounting:
-
Foot Cup Mode: Standard foot cups with side gusset positioning enable rapid leveling, greatly improving on-site installation efficiency.
-
Track Mode: Supports EU-standard aluminum track pre-installation (customer-supplied) for higher assembly precision and stronger load-bearing capacity.
The ultra-thin cabinet design measures just 82.7mm in thickness, saving valuable space.
4. Rapid Maintenance & Easy Service
The optimized door panel design features hand-twist screw locks that open with a simple rightward slide. Optional rechargeable or standard suction cups enable fast single-person cabinet replacement, significantly boosting routine maintenance and emergency repair efficiency.
5. Premium Visual Performance
Equipped with SMD1415/1921 high-brightness LEDs, the display delivers 1500CD/m² brightness with a refresh rate of up to 7680Hz. The 14-16Bit grayscale ensures smooth, flicker-free, and scan-line-free imagery, meeting the stringent requirements of professional broadcast and camera capture.
Company Profile
Founded in 2003, CharmingLED (HARMING) is a leading high-tech LED display manufacturer headquartered in China. Specializing in R&D, production, and marketing of cutting-edge LED screen solutions for both indoor and outdoor environments, the company has established a strong presence in premium global markets, particularly in the United States and Australia. CharmingLED adheres to a strategic philosophy of stringent cost optimization while delivering uncompromising product quality, backed by comprehensive technical support and turnkey services.
Warranty & After-Sales Support
-
Warranty Period: Comprehensive 2-year warranty covering all displays, modules, and components. Free replacement or repair for any defective parts during this period.
-
Lifetime Maintenance: Beyond the warranty period, we provide lifetime maintenance services, charging only for raw materials.
-
Technical Training: Free factory training on operation and maintenance procedures, accompanied by full documentation including user manuals, software, test reports, and CAD installation drawings.
Customer Support & FAQ
Q1: What are the installation options for this floor tile series?
A: Standard configuration includes foot cups for direct floor placement with side gusset positioning for quick alignment. For projects requiring higher precision, we also support track mounting using customer-supplied EU-standard aluminum rails.
Q2: Is it easy to replace a single faulty cabinet?
A: Yes, very easy. Our quick-release structural design, combined with optional rechargeable suction cups, allows for convenient front-access cabinet replacement without needing to dismantle surrounding floor tiles.
Q3: Is the tempered glass surface slip-resistant and scratch-resistant?
A: The glass surface undergoes special anti-slip treatment. The 8mm thickened tempered glass offers exceptional surface hardness and wear resistance, ensuring it withstands normal stage performance and foot traffic without scratching.
Q4: What are the MOQ and lead times?
A: We support OEM customization with no minimum order quantity (MOQ) restrictions. For standard products, small-batch orders typically ship within 7-15 days, while large-volume orders require approximately 30 days (subject to seasonal and order volume variations).
Pricing & Ordering Information
-
Quote Response: We typically provide formal quotations within 24 hours of inquiry.
-
Payment Methods: T/T, PayPal, Alipay, and other negotiable payment options.
-
Shipping Methods: Sea freight, air freight, or express delivery (EMS, UPS, DHL, TNT, FedEx, etc.). Please confirm preferred shipping method with us prior to order placement.
