LED Video Wall Display designed for quick assembly and disassembly allowing flexible deployment at trade shows
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Type Number: | 500 Sincere | Dimension(MM): | 504*504*85MM |
|---|---|---|---|
| Max.Power(W): | 200W | Cabinet Materia: | Iron |
| Pixel Pitch(MM): | 3.91MM | Scan Mode: | 1/16Scan |
| Protection Level: | IP65 | Refresh Rate(Hz): | 1920/3840Hz |
| LED Standard: | SMD1921 | Dimension: | 504*504*85MM |
| Max Power: | 200W | Pixel Pitch: | 3.91MM |
| Refresh Rate: | 1920/3840Hz | Cabinet Weight: | 14.2kg |
| Working Temperature: | -20~60°C | ||
| Highlight: | LED video wall trade show display,quick assembly LED video wall,modular LED display flexible deployment |
||
Product Description

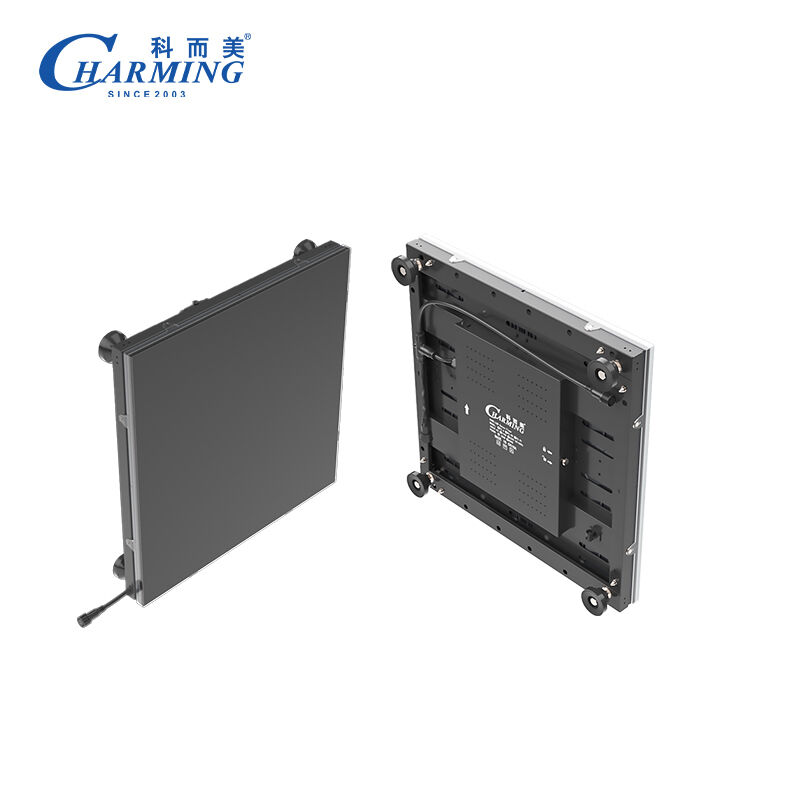

LED Video Wall Display designed for quick assembly and disassembly allowing flexible deployment at trade shows
Professional rental LED display designed for weddings and auto shows. Features high load bearing capacity, anti-slip surface, and full-color P3.91 pixel pitch for exceptional visual performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type Number | P3.91 |
| Cabinet Size | 503.4 x 503.4 x 82.7 ±1mm |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65,536 Dot/㎡ |
| LED Size | SMD1921 |
| Scan Type | 1/16 Scan |
| Grey Scale | 14-16bits |
| Refresh Frequency | 1920/7680Hz |
| Screen Brightness | 1500CD/㎡ |
| Best Viewing Distance | 4M |
| Module Size | 250 x 250mm |
| Module Max Power | 40W |
| Cabinet Max Power | 200W |
| IP Grade | IP65 |
| Working Temperature | -20°C to 60°C |
| Relative Humidity | 10% to 95% RH |
| Life Span | 100,000 Hours |
| Screen Resolution | 128 x 128 |
| Cabinet Weight | 14.2kg |
Product Images
Application Showcase
Manufacturing Excellence
Question
1: Do you accept sample orders?
We support sample orders for both LED modules and complete screens for quality inspection.
2: What's the production lead time?
Modules ship in 1-5 days; screens under 100㎡ deliver within 15 working days.
3: Quality guarantee?
All products come with 12-month warranty.
4: How to place an order?
Just tell us your screen size and application!
5: Most economical shipping method?
Air is faster but expensive; sea freight saves money!
6: Payment options?
Bank transfer accepted; payment recommended for security.Let me know if you'd like any adjustments to these versions!
