Small Pitch Indoor LED Screen with Lightweight Aluminum Alloy Cabinet and Ultra HD Display for Front Maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.53, P1.25 |
| Document: | CE Series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| View Angle: | 140° | Protection Level: | IP40 |
|---|---|---|---|
| Cablnet Material: | Aluminium Alloy | Maintenance Method: | Front Maintenance |
| Greylevel: | 14-16bit | Working Temperature: | -20~50℃ |
| Working Humidity: | 10%-65%RH | Lifespan: | ≥50000 Hours |
Product Description
Small Pitch Indoor LED Screen With Lightweight Aluminum Alloy Cabinet
CE Series Small Pitch Indoor LED Screen - Ultra HD Display & Convenient Interoperability with Multiple Cabinet Sizes. Easy to install and suitable for conference rooms and news broadcast applications.
Technical Specifications
| Type Number | P1.25 | P1.53 |
|---|---|---|
| Size | 640*640 | |
| Pixel Pitch (mm) | 1.25mm | 1.53mm |
| LED Standard | SMD1010 | SMD1212 |
| Scan Mode | 1/64 Scan | 1/52 Scan |
| Pixel Density (dot/m²) | 640000 | 4225000 |
| Max Power (W) | 75W | |
| Cabinet Weight (kg) | 8kg | |
| Refresh Rate (Hz) | 3840Hz | 3840Hz |
| Brightness (CD/m²) | 600CD/m² | 600CD/m² |
Product Images

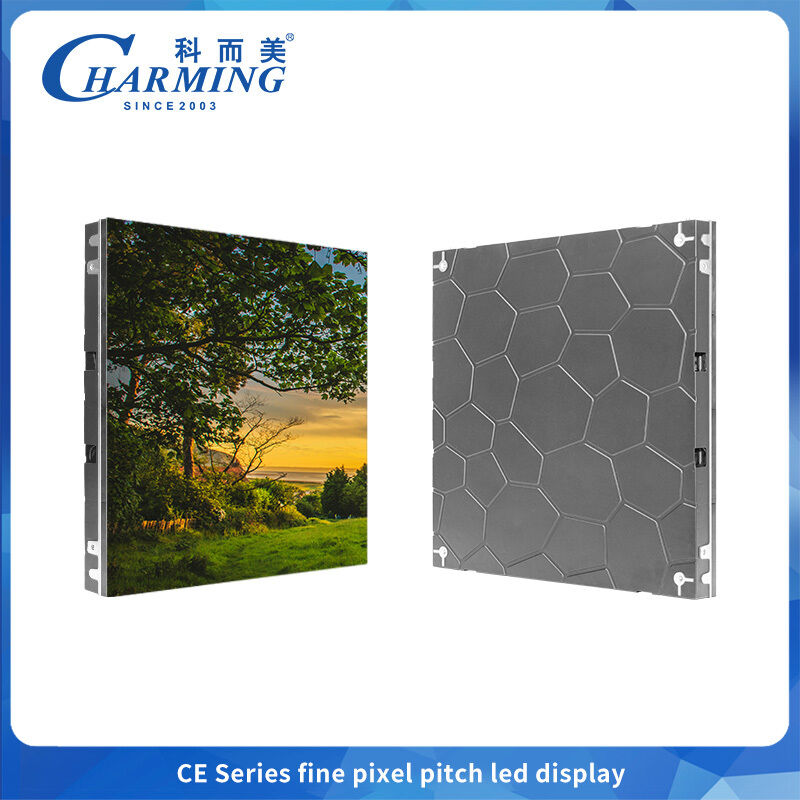

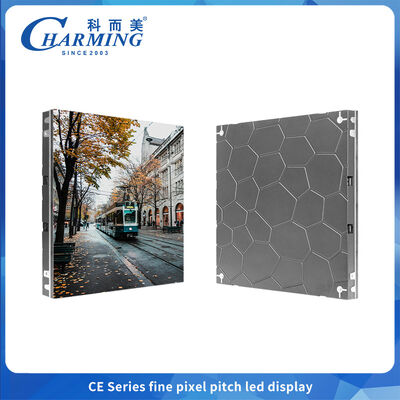

CE Series IP40 Aluminum Alloy Small Pitch Indoor LED Display Screen
Close-up view showing detailed pixel structure
Product Features
- Aluminum alloy cabinet: Balances lightweight and high-pressure resistance
- Convenient interoperability: All sizes of cabinet can be assembled together
- Wall-mounted installation: No need to reserve maintenance access, space-saving
