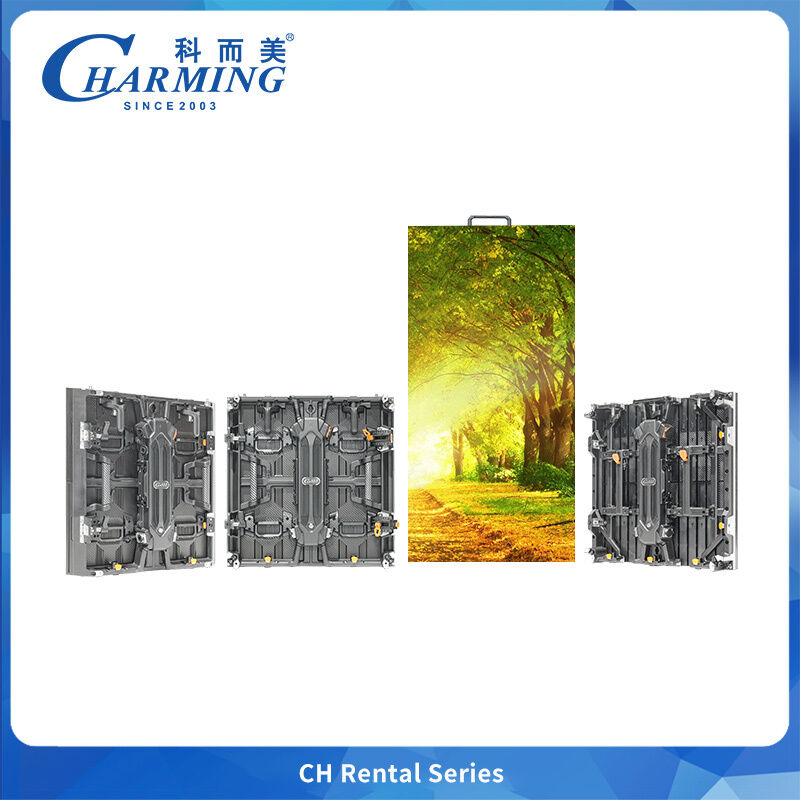

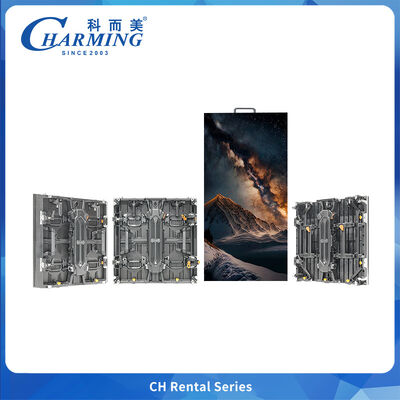

CH Series Outdoor LED Screen with Ultra Thin Lightweight Waterproof IP65 and Curved Interlocking Design for Concert Stages
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | LU-40 |
| Document: | CH SERIES P3.91.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| View Distance: | >3.91m | Grey Level: | 14-16Bit |
|---|---|---|---|
| Operating Humidity: | 10%~90%RH | Screen Working Emperature: | -20~60℃ |
Product Description
CH Series Outdoor LED Screen for Concert Stages and Rental Events
Professional outdoor LED display solution offering exceptional performance for rental events with ultra thin lightweight curved interlocking design and IP65 waterproof rating.
Product Features
Ultra-thin Design
- Only 84mm thickness for regular and curved cabinets, 87mm for flexible cabinets
One-click Degaussing & Front/Rear Maintenance
- Magnetic modules with spring-loaded captive screws and handle for quick removal
Special Handle Design
- Single operator can handle lifting, removal, and installation
Full Range Interlocking
- Regular, curved, right-angle, flexible, and 45° beveled cabinets can interlock in various configurations (straight, curved, offset, irregular)
Adjustable Curvature
- Regular, curved, right-angle, flexible, and 45° beveled cabinets can interlock in various configurations (straight, curved, offset, irregular)
Product Parameters
| Parameter | P3.91 |
|---|---|
| Pixel Pitch | 3.91mm |
| LED Configuration | SMD1921 |
| Pixel Density | 65536 dot/m² |
| Module Size | 250×250mm |
| Cabinet Size | 500×500×84mm |
| Cabinet Weight | 7.9KG |
| IP Rating (front/back) | IP65 |
| Viewing Angle | 120° |
