Outdoor Die-cast Aluminum Fixed Installation LED Display with IP65 Waterproof, 220W/m² Energy Efficiency, and 6500 CD/m² Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P6.6 P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Module Size: | 480*320mm | Cabinet Size: | 960*960*77mm |
|---|---|---|---|
| Cabinet Weight: | 25kg | IP Rating: | IP65 |
| Brightness Intensity: | >6500 CD/m2 | View Angle (HM): | 140° |
| Gray Scale: | 14bit | Operating Temperature: | -20°C~+50°C |
Product Description

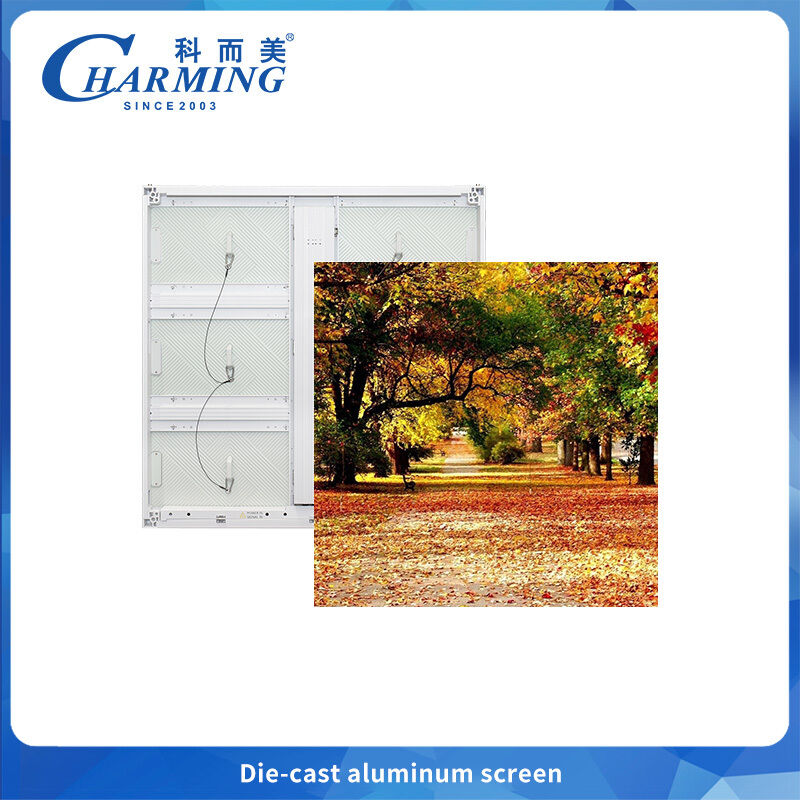

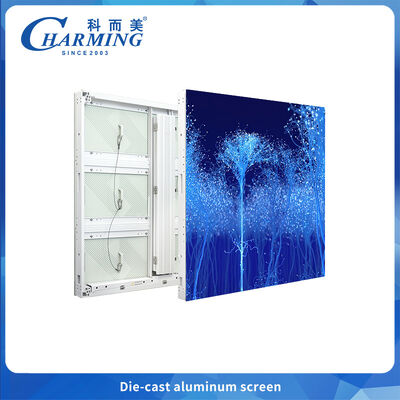

Outdoor Die-cast Aluminum Fixed Installation LED Display Screen
Product Features
High Security
- All-aluminum bottom shell construction
- High ignition point with superior fire resistance
- Passes TUV 5VB fire resistance test
High Stability
- Hard connection design (no internal cables)
- Ultra-stable and extremely safe operation
- Split-voltage power supply: low heat generation, extended lifespan
High Performance
- Brightness up to > 6500 CD/m²
- Capable of 10,000-level brightness display
- Refresh rate ≥3840Hz with 14-bit grayscale
High Waterproof Protection (IP65)
- Original design waterproof rubber ring
- Multi-layer waterproof barrier system
- Suitable for outdoor naked installation - no edging required
High Convenience
- Full front maintenance or full rear maintenance options
- Saves installation space
- Hidden wiring - aesthetically pleasing and durable
Lightweight & Thin Design
- Weight as low as 25 kg per cabinet (~30kg/m²)
- Thickness as thin as 77mm (95mm with power box)
High Contrast
- High mask precision with low tolerance
- No module phenomenon (no visible gaps)
Energy Saving
- Dual voltage power supply driving mode
- Maximum power consumption: only 650W/m²
- Average power: 220W/m²
Product Parameters
| Parameter | P6.6 | P8 |
|---|---|---|
| Pixel Pitch | 6.6mm | 8mm |
| LED Configuration | SMD2727 | SMD2727 |
| Pixel Density | 22500 dot/m² | 15625 dot/m² |
| Module Size | 480×320mm | |
| Module Resolution | 72×48dot | 60×40 dot |
| Cabinet Size | 960×960×77mm | |
| Cabinet Resolution | 144×144 dot | 120×120 dot |
| Cabinet Weight | 25KG | |
| IP Rating (front/back) | IP65 | |
| Brightness Intensity | 140°/140° | |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
