CE Series IP40 Aluminum Alloy Small Pitch P1.53-2.5 Indoor LED Display Screen For Event 320x480x61mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.53, P1.86, P2.22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| View Angle: | 140° | Protection Level: | IP40 |
|---|---|---|---|
| Cablnet Material: | Aluminium Alloy | Maintenance Method: | Front Maintenance |
| Greylevel: | 14-16bit | Working Temperature: | -20~50℃ |
| Working Humidity: | 10%-65%RH | Lifespan: | ≥50000 Hours |
Product Description

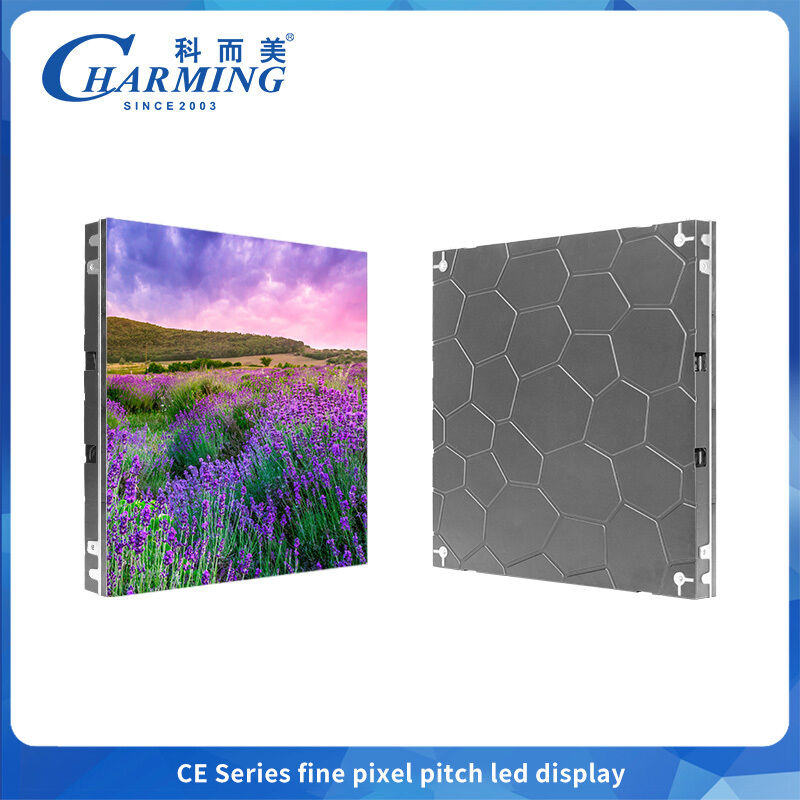

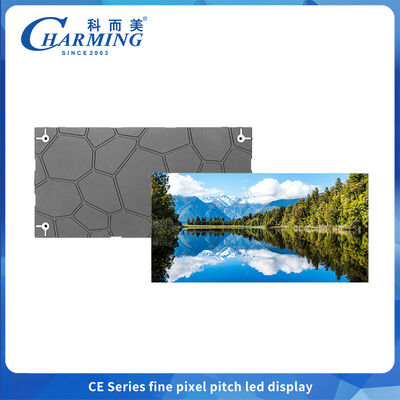

CE Series Small pitch indoor screen
| Type Number | P1.53 | P1.86 | P2.22 |
| Pixel Pitch(mm) | 1.53mm | 1.86mm | 2.22mm |
| LED standard | SMD1212/SMD1010 | SMD1515 | SMD1515 |
| Scan Mode | 1/52Scan | 1/43Scan | 1/36Scan |
| Pixel density(dot/m2) | 422500 | 288906 | 202500 |
| Max Power(W) | 75W | 75W | 75W |
| Cabinet Weight(kg) | 3.5kg | 3.5kg | 3.5kg |
| Refresh rate(Hz) | 3840Hz | 7680Hz | 7680Hz |
| Brightness (CD/m2) | 600CD/m2 | 600CD/m2 | 700CD/m2 |
Product detail
Product Features
Aluminum alloy cabinet: Balances lightweight and high-pressure resistance
Convenient interoperability: All sizes of cabinet can be assembled together
Wall-mounted installation: No need to reserve maintenance access, space-saving
