Scratch-Resistant Wear-Proof GOB LED Video Floor Tile with 360° LED Protection and Uniform Heat Conduction
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2.604, P2.976, P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 504x504MM | Grey Level: | 14-16 Bit |
|---|---|---|---|
| Brightness (CD/㎡): | 1500CD/㎡ | Viewing Angle: | 120° |
| Protection Level: | IP65 | Cabinet Materia: | Iron |
| Maintenance Method: | Front Maintenance | Working Temperature: | -20~60°C |
| Highlight: | Scratch-Resistant LED Video Floor Tile,Wear-Proof GOB LED Display,360° LED Protection LED Video Wall Display |
||
Product Description

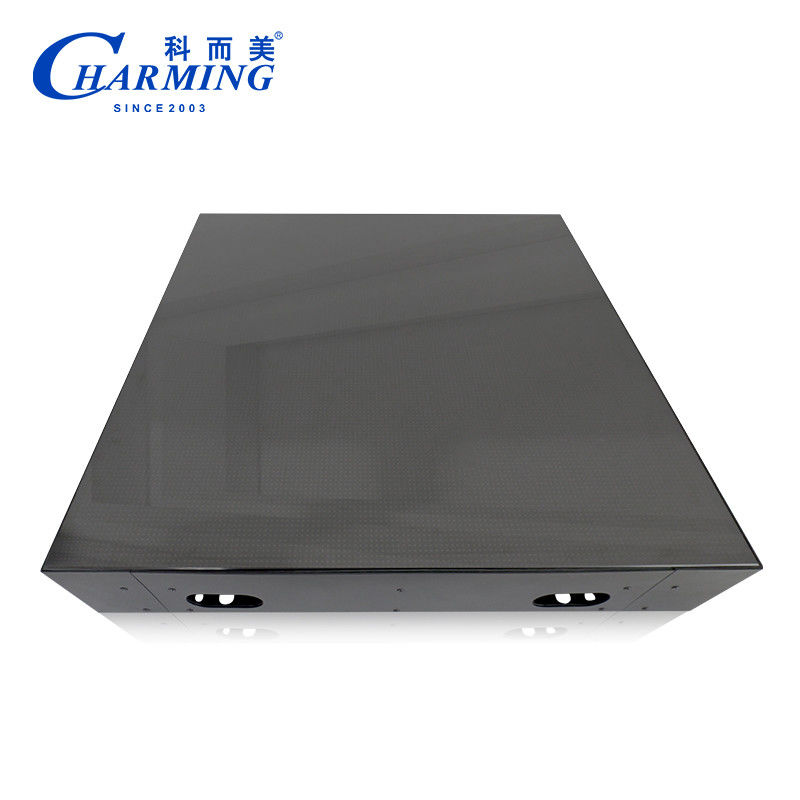

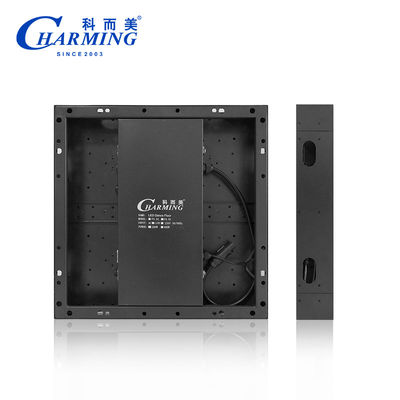

P2.604/P2.976/P3.91 Video Floor Tile with GOB Process
Scratch-resistant, wear-proof LED video floor tiles featuring 360° LED protection and uniform heat conduction technology.
Product Overview
High load-bearing waterproof tempered glass with anti-slip surface LED video floor tiles featuring GOB technology and IP65 rating.
Technical Specifications
| Type Number | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| Dimension (MM) | 504x504MM | 504x504MM | 504x504MM |
| Max. Power (W) | 200W | 200W | 200W |
| Cabinet Weight (KG) | 12.9KG | 12.9KG | 12.9KG |
| Refresh Rate (Hz) | 7680Hz | 7680Hz | 1920/7680Hz |
| Pixel Pitch (MM) | 2.604mm | 2.976mm | 3.91mm |
| Scan Mode | 1/24 Scan | 1/21 Scan | 1/16 Scan |
| Brightness (CD/㎡) | 1500CD/㎡ | 1500CD/㎡ | 1500CD/㎡ |
| Cabinet Material | Iron | Iron | Iron |
Product Advantages

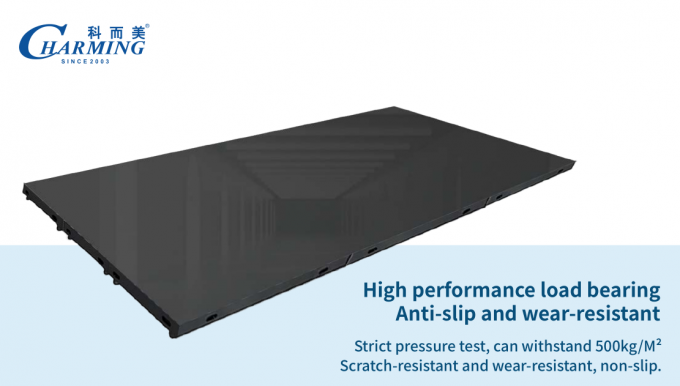

- High load-bearing capacity and exceptional durability
- Multiple protective technologies for extended lifespan
- Excellent waterproof and dustproof performance with IP65 rating

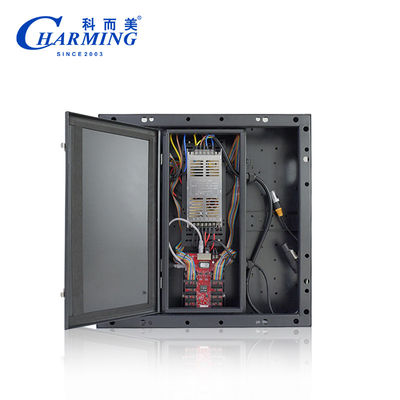

- Supports front maintenance for easy upkeep and reduced downtime
- Flexible installation options with height adjustment capabilities
- High image quality with superior refresh rates for smooth video playback
Packaging Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
