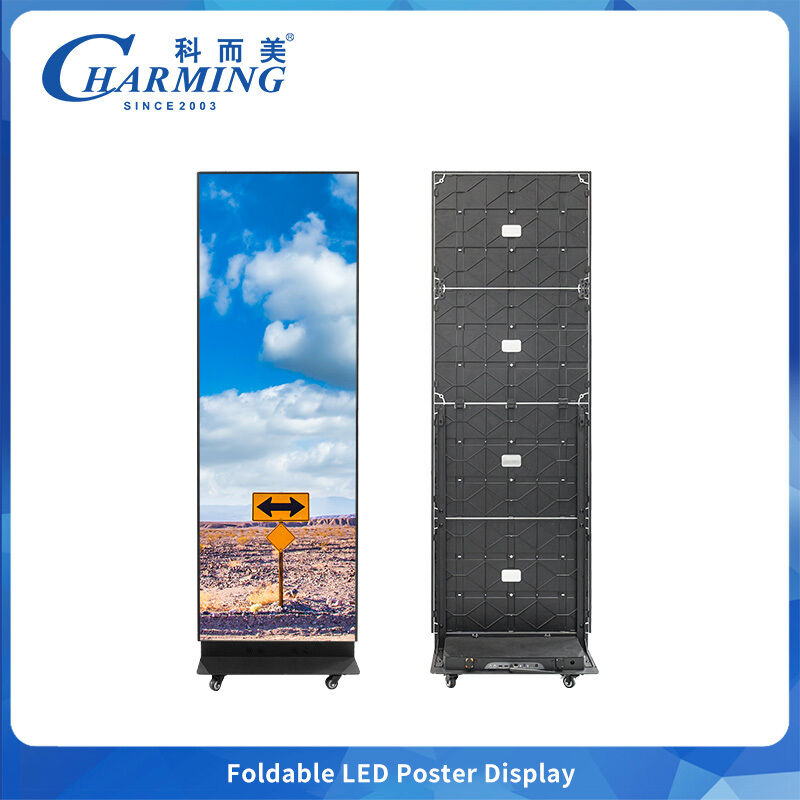

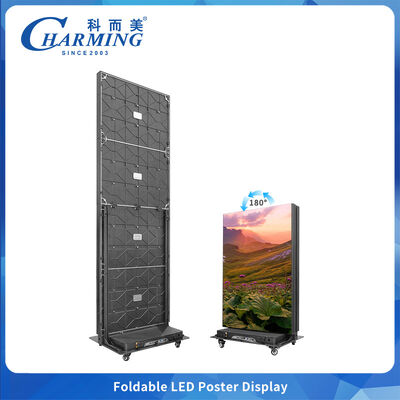

Foldable LED Poster Display Featuring High Refresh Rate GOB Process and Smart Mobile Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86、P2、P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| View Angle: | 140° | Protection Level: | IP43 |
|---|---|---|---|
| Cablnet Material: | Aluminum Alloy | Maintenance Method: | Front Maintenance |
| Grey Level: | 14-16 Bit | Working Temperature: | -20~40°C |
| Working Humidity: | 10%-65%RH | Working Voltage: | AC220V,50/60HZ |
| Highlight: | foldable LED poster display with GOB process,outdoor LED video wall with mobile control,high refresh rate LED display foldable |
||
Product Description
High Refresh Rate Foldable LED Poster Screen with GOB Technology and Intelligent Mobile Control
Advanced foldable LED poster screen featuring high refresh rate technology, GOB protection, and intelligent mobile control for superior display performance.
Product Features
-
High Refresh Rate
-
GOB Technology
-
Intelligent Mobile Control
Product Parameters
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension(mm) | 657*2075*490mm | ||
| Pixel Pitch(mm) | 1.86mm | 2mm | 2.5mm |
| LED standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan |
| Pixel density(dot/m) | 288906 | 202500 | 160000 |
| Max.Power(W) | 600W | ||
| Cabinet Weight(kg) | 48.8kg | ||
| Refreshrate(Hz) | 7680Hz | ||
| Brightness (CD/m) | 600CD/m² | 600CD/m² | 800CD/m² |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
