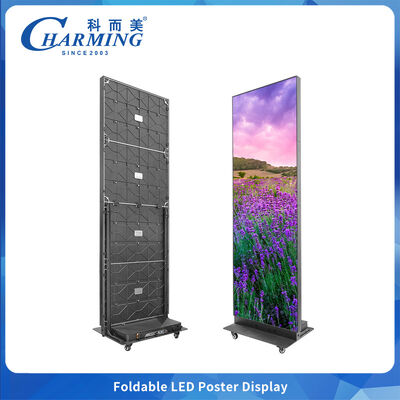

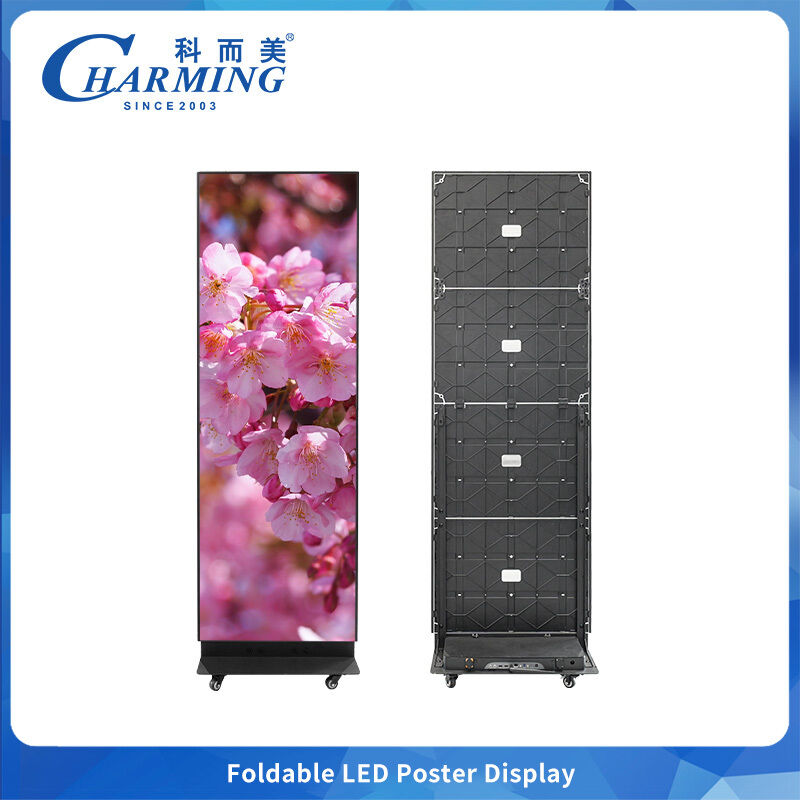

High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86 P2 P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| View Angle: | 140° | Protection Level: | IP43 |
|---|---|---|---|
| Cablnet Material: | Aluminum Alloy | Maintenance Method: | Front Maintenance |
| Grey Level: | 14-16 Bit | Working Temperature: | -20~40°C |
| Working Humidity: | 10%-65%RH | Working Voltage: | AC220V,50/60HZ |
| Highlight: | foldable LED video wall display,aluminum alloy LED display,mobile control video wall |
||
Product Description
High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension (mm) | 657*2075*490mm | ||
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density (dot/m) | 288,906 | 202,500 | 160,000 |
| Max. Power (W) | 600W | ||
| Cabinet Weight (kg) | 48.8kg | ||
| Refresh Rate (Hz) | 7680Hz | ||
| Brightness (CD/m²) | 600 | 600 | 800 |
Product Features
- High Refresh Rate - Delivers smooth, flicker-free video playback
- GOB Technology - Protection for enhanced durability and reliability
- Intelligent Mobile Control - Easy operation and management via mobile devices
Other detail:
Installation Process
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the cabinet
- Identify power cables and signal cables, then insert them into the corresponding cabinet connections
- Connect the main signal cable and main power cable to the computer and controller, then complete screen setup after debugging
Packaging Options
We offer multiple packaging solutions including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transportation.
