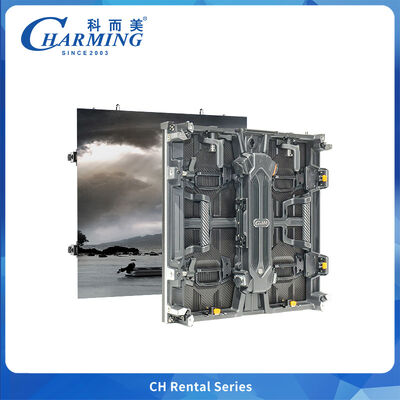

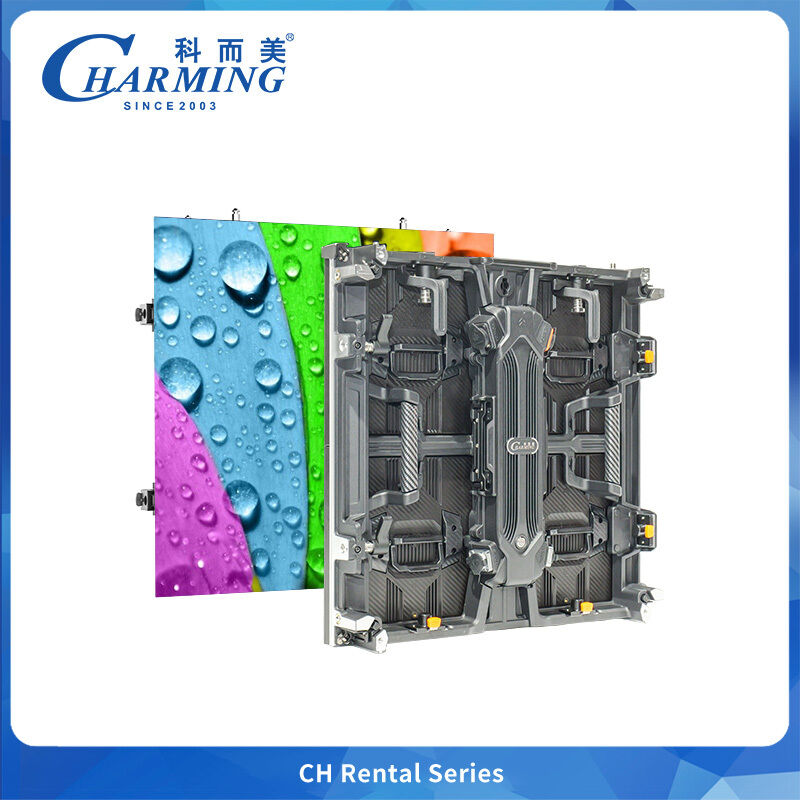

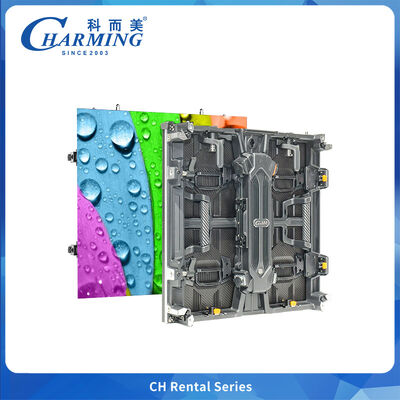

500x500mm High Refresh Outdoor P3.91CH Series Curved Flexible and Regular Cabinet for Events
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500 PCS per week |
|
Detail Information |
|||
| Cabinet Size: | 500*500*84mm | Refresh Frequency: | 7680Hz |
|---|---|---|---|
| Screen Brightness: | ≥3500 CD/㎡ | Pixel Pitch: | P3.91 |
| Cabinet Weight: | 7.9kg | Pixel Density: | 65536 Dot/㎡ |
| Highlight: | P3.91CH outdoor LED display,500x500mm curved LED cabinet,rental LED display for events |
||
Product Description
yp500x500mm High Refresh Outdoor P3.91CH Series Curved Flexible and Regular Cabinet for Events
Product Specifications
Typ e Number
| Pixel Pitch | 3.91mm |
| LED Dimention | SMD1921 |
| Scan Type | 1/16scan |
| Grey Level | 14-16bit |
| View Angle | 120° |
| Screen Resolution | 128x128 |
Product Introduction
- Loosen the cabinet captive screws → the screws pop up via spring force, and the module loosens → Push up the module handle → Lever the module off the magnetic attachment with the cabinet as the fulcrum → Complete degaussing and removal
- The large latch of the control box auto-ejects when pressed, enabling easier removal and installation during maintenance. It reduces manual steps and makes maintenance more time and effort saving.
- A single operator can grip and perform removal or installation during lifting.
- The cabinet edges are widened and thickened for higher strength, with a maximum lifting height of 15m.Die-Cast Aluminum Alloy Control Box Ribbed texture design for excellent heat dissipation.
- The module and power control box are detachable separately. The control box features an integrated hard connection and foolproof design.
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
