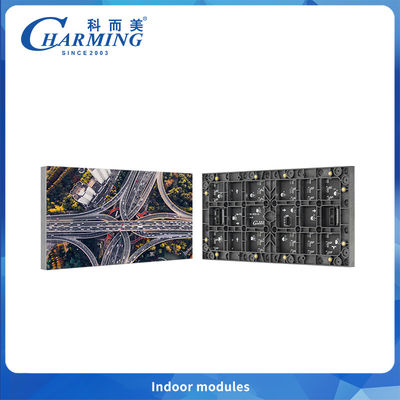

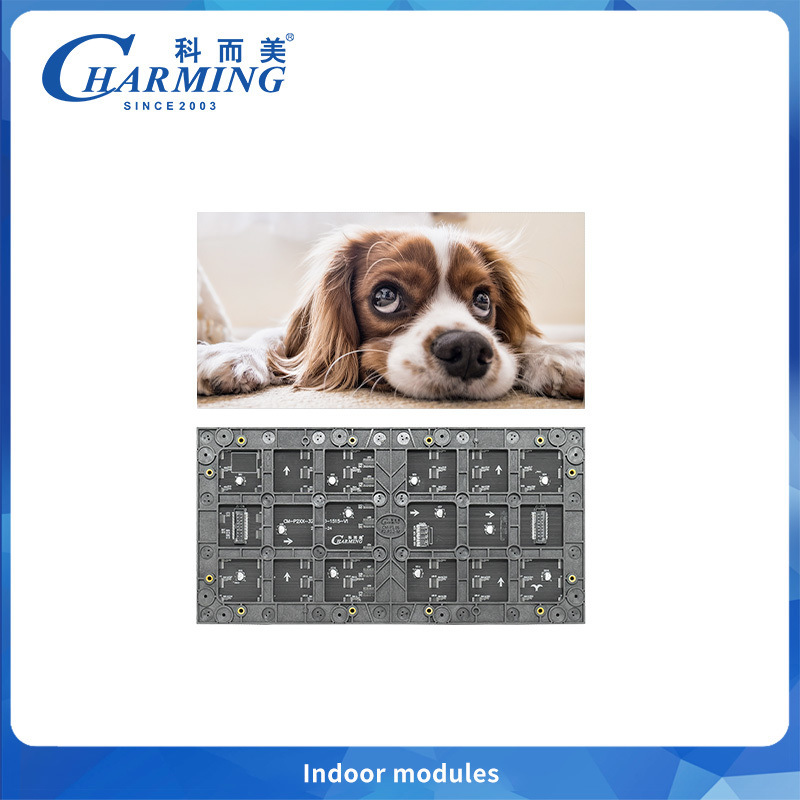

Full Color 4k SMD HD Small Pitch P1.86 Fixed LED Display Video Wall Church Pantalla Modular LED Display
Product Details:
| Place of Origin: | CHAINA |
| Brand Name: | Charmingled |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86 P2 P2.22 P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 30 Working Days after Payment |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 100000 PCS per week |
|
Detail Information |
|||
| Life Span: | ≥50000 Hours | Grey Level: | 14-16 Bit |
|---|---|---|---|
| Refresh Rate(Hz): | 7680Hz/3840Hz/1920Hz | Working Temperature: | -20~50°C |
| Working Humidity: | 10%~90%RH | Working Voltage: | DC 5V |
| Highlight: | 4K SMD HD LED video wall,P1.86 small pitch LED display,modular church LED display |
||
Product Description
- Innovative P2 small pitch technology for superior image quality
- ISO9001, CE, CCC, CB, ROHS, and SASO certified manufacturing
- 10,000+ sqm automated production facility
- Products serving 150+ countries worldwide
- Nearly 100 patented technologies
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Can I order samples for testing?
Yes, we welcome sample orders for both LED modules and complete screens so you can evaluate quality firsthand.
What is the delivery time?
LED modules: 1–5 days
Complete screens (<100m²): within 15 working days
What warranty do you offer?
All products come with a comprehensive 2-year warranty.
How is the after-sales service?
We offer 24/7 online support with dedicated hotlines to promptly handle feedback and technical issues.
Can we customize display sizes?
Display sizes are customized based on standard module and cabinet dimensions to ensure structural and performance integrity.
How do we install the display?
We provide detailed CAD drawings and remote installation guidance via TeamViewer.
What shipping methods are available?
Sea freight is recommended for cost efficiency, while air shipping is available for urgent needs.
What payment methods are accepted?
We accept T/T and Western Union, and highly recommend Ali Trade Assurance for transaction security.
