High Definition Small Pixel Pitch P1.86 P2 SMD Led Display for Shopping Malls Video Led Wall Screen P1.53
Product Details:
| Place of Origin: | CHAINA.. |
| Brand Name: | Charmingled.. |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL.. |
| Model Number: | P1.86 P2 P2.22 P2.5.. |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS.. |
|---|---|
| Price: | Negotiable.. |
| Packaging Details: | Carton Case, Wooden Case, Flight Case.. |
| Delivery Time: | 30 Working Days after Payment.. |
| Payment Terms: | L/C,T/T,Western Union,Paypal,Cash |
| Supply Ability: | 100000 PCS per week.. |
|
Detail Information |
|||
| Life Span: | ≥50000 Hours.. | Grey Level: | 14-16 Bit.. |
|---|---|---|---|
| Refresh Rate(Hz): | 7680Hz/3840Hz/1920Hz.. | Working Temperature: | -20~50°C.. |
| Working Humidity: | 10%~90%RH.. | Working Voltage: | DC 5V.. |
| Highlight: | P1.86 SMD LED video wall,small pixel pitch LED display,shopping mall LED screen |
||
Product Description

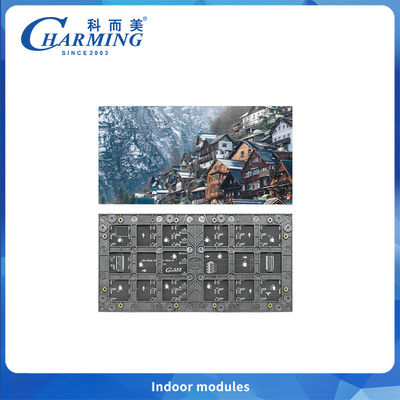

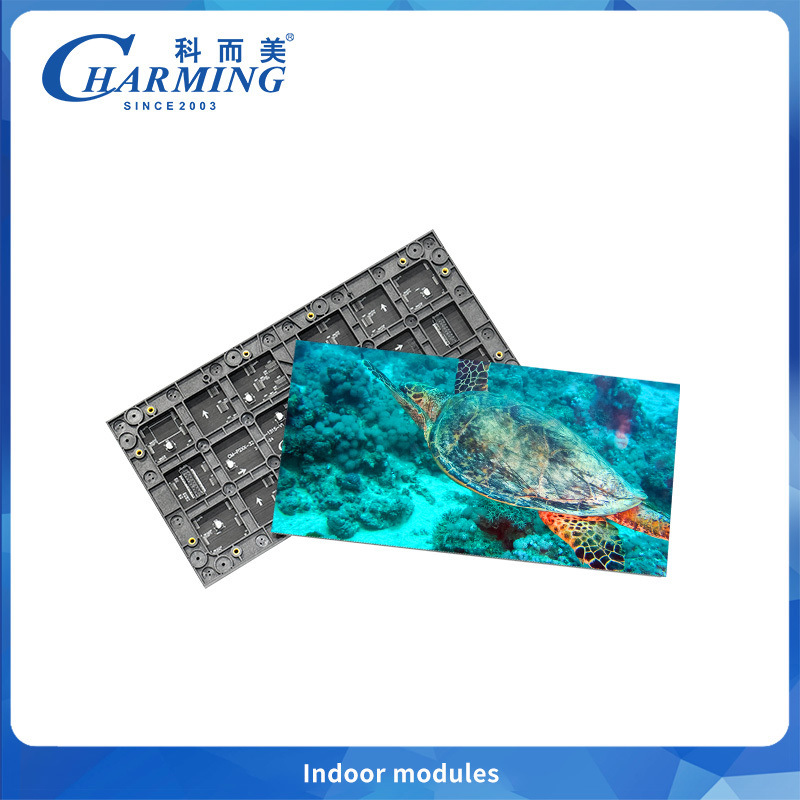

Indoor Full Color P2 LED Display Module
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications
Charming Co., Ltd is a global leader in LED display technology with over 22 years of experience. We specialize in high-quality indoor LED displays with:
- Innovative P2 small pitch technology for superior image quality
- ISO9001, CE, CCC, CB, ROHS, and SASO certified manufacturing
- 10,000+ sqm automated production facility
- Products serving 150+ countries worldwide
- Nearly 100 patented technologies
Technical Specifications
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number.. | SP2.. | SP2.22.. | SP2.5.. | SP3.. | SP4.. | SP4.. |
| Dimension (MM).. | 320x160.. | 320x160.. | 320x160.. | 192x192 | 256x128 | 256x256.. |
| Pixel Pitch (MM).. | 2 | 2.22.. | 2.5.. | 3.. | 4.. | 4.. |
| LED Standard.. | SMD1515.. | SMD2020.. | SMD2020.. | SMD2020.. | SMD2020.. | SMD2020.. |
| Scan Mode.. | 1/40 Scan.. | 1/36 Scan | 1/32 Scan.. | 1/32 Scan | 1/32 Scan.. | 1/32 Scan.. |
| Pixel Density (Dot/m²).. | 250000.. | 202500 | 160000.. | 111111 | 62500.. | 62500.. |
| Module Max.Power (W).. | 22.. | 20.. | 24.. | 10 | 5.. | 10.. |
| Best Viewing Distance (M).. | ≥2.5.. | ≥2.5.. | ≥2.5.. | ≥3 | ≥4.. | ≥4.. |
| Refresh Rate (Hz).. | 7680.. | 3840/1920.. | 3840/1920.. | 3840/1920.. | 3840/1920.. | 3840/1920.. |
| Brightness (CD/m²).. | 800.. | ≥700.. | ≥800.. | ≥600.. | ≥400.. | ≥400.. |
| Viewing Angle.. | 120°.. | 120°.. | 120°.. | 120°.. | 120°.. | 120°.. |
| Protection Level.. | IP42.. | IP42.. | IP42.. | IP42.. | IP42.. | IP42.. |
| Grey Level.. | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. |
| Working Temperature.. | -20 ~ 50℃.. | -20 ~ 50℃.. | -20 ~ 50℃.. | -20 ~ 50℃.. | -20 ~ 50℃.. | -20 ~ 50℃.. |
| Working Humidity.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. |
| Life Span.. | ≥50000 Hours.. | ≥50000 Hours.. | ≥50000 Hours.. | ≥50000 Hours.. | ≥50000 Hours.. | ≥50000 Hours.. |
| Working Voltage.. | DC 5V.. | DC 5V.. | DC 5V.. | DC 5V.. | DC 5V.. | DC 5V.. |
Warranty & Support
Comprehensive 2-Year Protection
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
What shipping methods are available?
We recommend sea freight for cost efficiency, though air shipping is also available.
What payment methods do you accept?
We accept TT, Western Union, and recommend Ali Trade Assurance for secure transactions.
