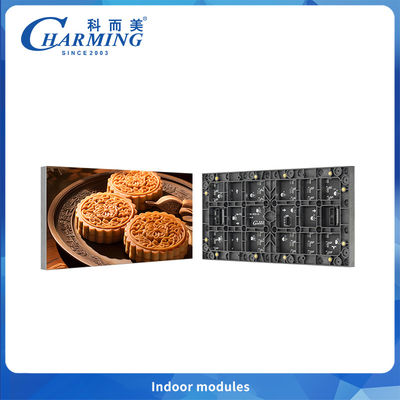

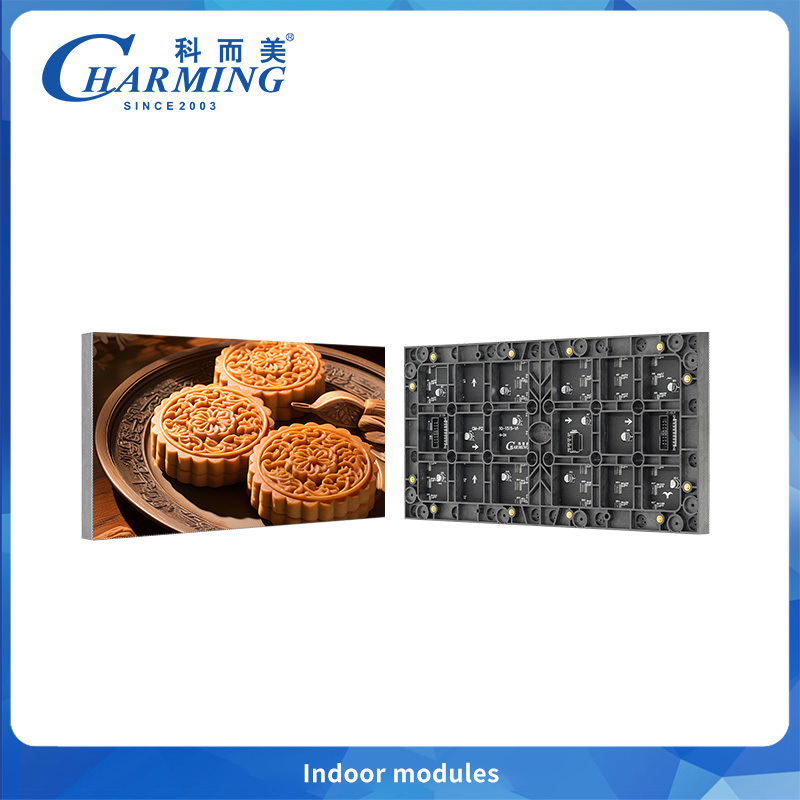

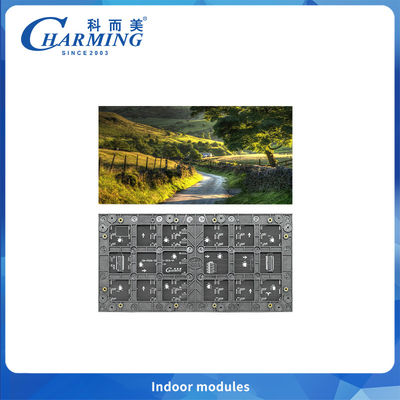

Cost-Effective P1.86 Indoor LED Module 600CD/m² Brightness and IP40 Protection for Stable Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | p1.86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Dimension (MM): | 320×160MM | Refresh Rate（Hz）: | 3840Hz |
|---|---|---|---|
| Pixel Density(Dot/ ): | 288906Dot/m² | Brightness（CD/ ）: | 600 |
| Protection Level: | IP40 | Life Span: | 100000 Hours |
| Viewing Angle: | 120° | Working Voltage: | DV 5V |
| Working Temperature: | -20～50℃ | Working Humidity: | 10%-65%RH |
| Highlight: | P1.86 indoor LED module,600CD/m² brightness LED display,IP40 protection LED video wall |
||
Product Description
Specification
| Type Number | P1.86 |
| Dim ension(MM) | 320*160*MM |
| Module Maximum power(w) | 24 |
| LED Standard | SMD1010 |
| Scan Mode | 1/64Scan |
| Pixel Density(Dot/m²) | 288906 Dot/m² |
| Refresh Rate(Hz) | 3840Hz |
| Brightness(CD/ m²) | 600 |
| Pixel Pitch(MM) | 1.86 |
| Protection Level | IP40 |
| Grey Level | 14-16bit |
| Working Temperature | -20~50°C |
| Working Humidity | 10％~65％RH |
| Life Span | 100000 Hours |
| Working Voltage | DC 5V |
Company Profile
In 2003, Charming Co., Ltd. revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.
What makes us special?
• Innovation: Nearly 100 patents and counting
• Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
• Global Reach: 22 years of excellence across 150+ countries
True to our "Charming Achieve Beauty" vision, we continue to push boundaries in LED technology while maintaining our commitment to outstanding customer service.
Why choice Charming:
RICH EXPERIENCES | CHARMING BRAND
CHARMING BRAND, founded in 2003, is a leading R&D and manufacturing company in the LED industry. We serve clients in over 150 countries and have completed more than 20,000 successful projects worldwide.
FOCUS ON QUALITY
We carefully choose top-tier raw material suppliers in the industry. Each material is rigorously tested using advanced R&D equipment, and every aspect of craftsmanship is meticulously examined. Our fully automated 6S production line is precision-engineered, ensuring an accuracy within 1 silk meter to guarantee product stability and reliability.
YOUR COMPLETE SOLUTION PARTNER
Our professional services encompass the entire customer journey, from initial consultation to post-purchase support. Our specialized technical team delivers customized product design, expert installation guidance, and full project lifecycle support. As leaders in the industry, we provide authoritative advice and tailored solutions at every stage.
