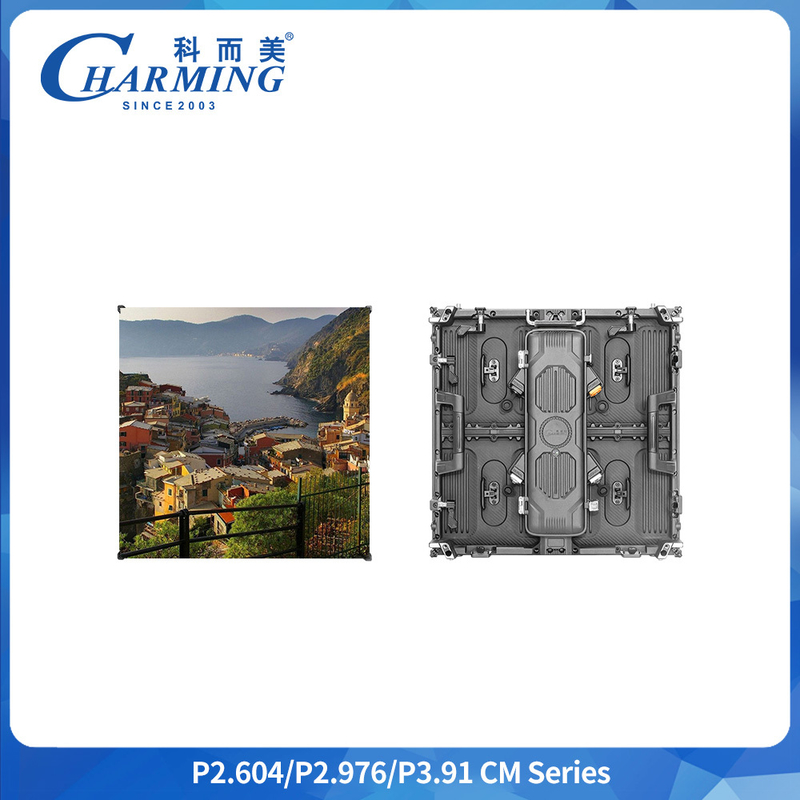

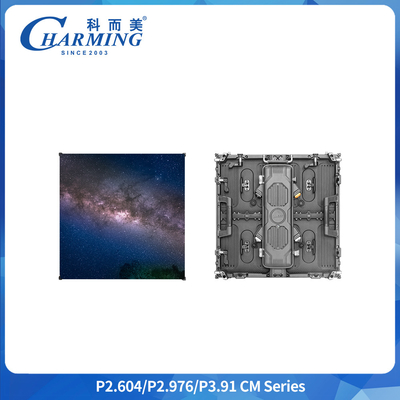

P3.91 Outdoor Adverestising LED Screen IP65 Waterproof LED Display 500x500MM SMD1921 Die-cast aluminum cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union,L/C,T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Type Number: | P3.91 | Cabinet Size: | 500*500MM |
|---|---|---|---|
| Pixel Pitch: | 3.91MM | IP Grade: | IP65 |
| Operation Temperature: | -20~60℃ | Refresh Frequency: | 7680Hz |
| Life Span: | 100,000 Hours | Pixel Density: | 65536 Dot/㎡ |
| Scan Type: | 1/16 Scan | Screen Brightness: | ≥4500 CD/㎡ |
| GreyScale: | 14-16bit | LED Size: | SMD1921 |
| Operating Humidity: | 10%~90%RH | ||
| Highlight: | P3.91 outdoor LED display IP65 waterproof,500x500mm SMD1921 LED video wall,die-cast aluminum cabinet LED screen |
||
Product Description
| Attribute | Value |
|---|---|
| Type Number | P3.91 |
| Cabinet Size | 500*1000MM |
| LED Size | SMD1921 |
| IP Grade | IP65 |
| Pixel Density | 65536 Dot/㎡ |
| Screen Brightness | ≥4500 CD/㎡ |
| Operation Temperature | -20~60℃ |
| Pixel Pitch | 3.91MM |
| Scan Type | 1/16 Scan |
| Operating Humidity | 10%~90%RH |
| Life Span | 100,000 Hours |
| Refresh Frequency | 7680Hz |
| GreyScale | 14-16bit |
| Specification | Value |
|---|---|
| Dimension(MM) | 500*1000MM |
| Max.Power(W) | 200W |
| Brightness(CD/m) | ≥4500 CD/㎡ |
| LED Standard | SMD1921 |
| Viewing Angle | 140° |
| Protection Level | IP65 |
| Refresh Rate(Hz) | 7680Hz |
| Pixel Pitch(MM) | 3.96MM |
| Scan Mode | 1/16 Scan |
| Pixel Density(Dot/m) | 65536 Dot/㎡ |
| Grey Level | 14-16 Bit |
| Working Temperature | -20~60°C |
| Life Span | 100000 Hours |
| Working Voltage | AC 110V/220V,±15% |
We cordially invite you to assess our LED modules and comprehensive display solutions through practical testing. Our dedicated team is prepared to assist you in selecting the optimal products to fulfill your specific project needs.
-
LED Modules: Modules: Prepared for dispatch within 1-5 business days
-
Complete Screens: Projects under 100 square meters are completed within 15 working days.
-
Immediate Assistance via Direct Hotline Access
-
24/7 Online Support through live chat and email
2-Year Comprehensive Warranty
• Encompasses all displays, modules, and components.
• Free repairs or replacements for any manufacturing defects
• Global validity accompanied by local service support
Lifetime Maintenance Commitment
• Ongoing technical support remains available even after the warranty period has concluded.
• will only be charged for replacement parts; our service includes labor at no additional cost.
• Priority access to our support team
