LED Floor Tiles Screen Panel RGB Led Floor Tile Display Screen Waterproof IP65 3840Hz Support Weeding Dance Show
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Type Number: | 500 Sincere | Dimension(MM): | 504*504*85MM |
|---|---|---|---|
| Max.Power(W): | 200W | Cabinet Materia: | Iron |
| Pixel Pitch(MM): | 3.91MM | Scan Mode: | 1/16Scan |
| Protection Level: | IP65 | Refresh Rate(Hz): | 1920/3840Hz |
| LED Standard: | SMD1921 | ||
Product Description
LED Floor Tiles Screen Panel RGB Led Floor Tile Display Screen Waterproof IP65 3840Hz Support Weeding Dance Show
Production detail
Specification
| Tyoe Number | T3.91 |
| Cabinet Size(mm) | 500*500*88mm 500*1000*88mm |
| Pixel Pitch(mm) | 3.91mm |
| Pixel Density(Dot/㎡) | 65536 Dot/㎡ |
| LED Size | SMD1921 |
| Scan Type | 1/16 Scan |
| Grey Scale | 12-16bits |
| Refresh Frequency(Hz) | 1920/3840Hz |
| Screen Brightness(CD/㎡) | 4500CD/㎡ |
| Best Viewing Distance | 4M |
| Module Size(mm) | 250*250mm |
| Module Resolution | 64*64 |
| Module Max Power | 40W |
| Cabinet Max Power | 200wW 400W |
| IP Grade | IP65 |
| Screen Working Temperature | -30~60°C |
| Relative humidity | 10%~95%RH |
| Life Span | 100000Hous |
| Screen Resolution | 128*128 128*256 |
| Cabinet Weight(Kg) | 13kg 25.5kg |

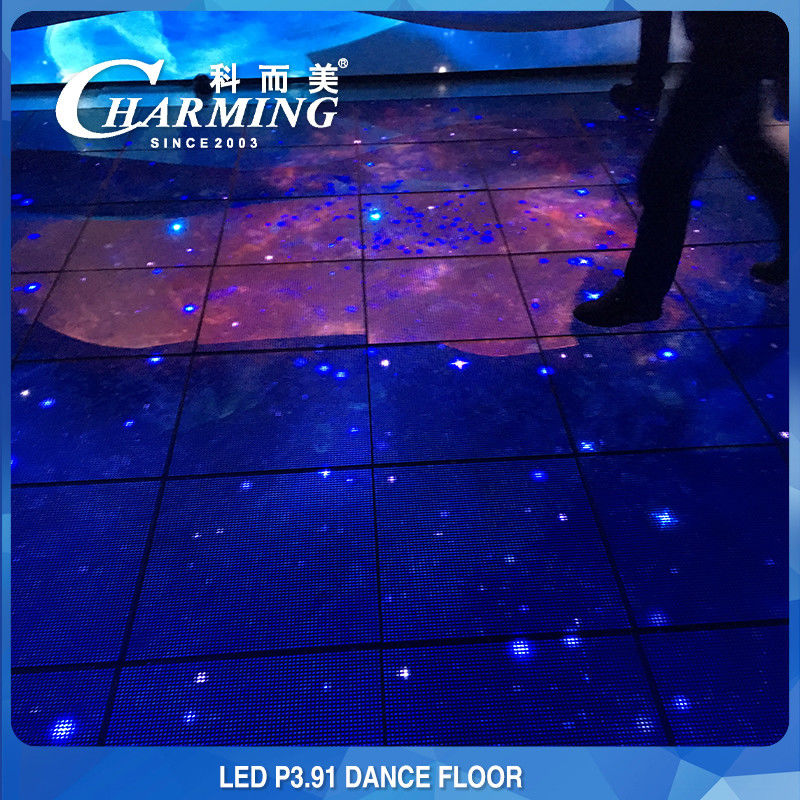

Case show
