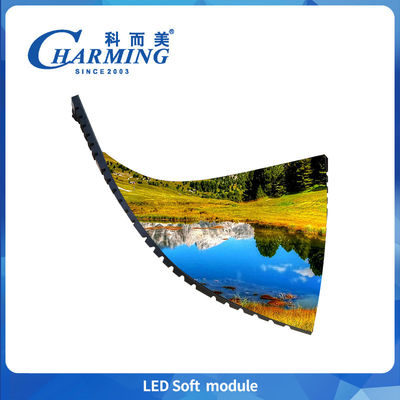

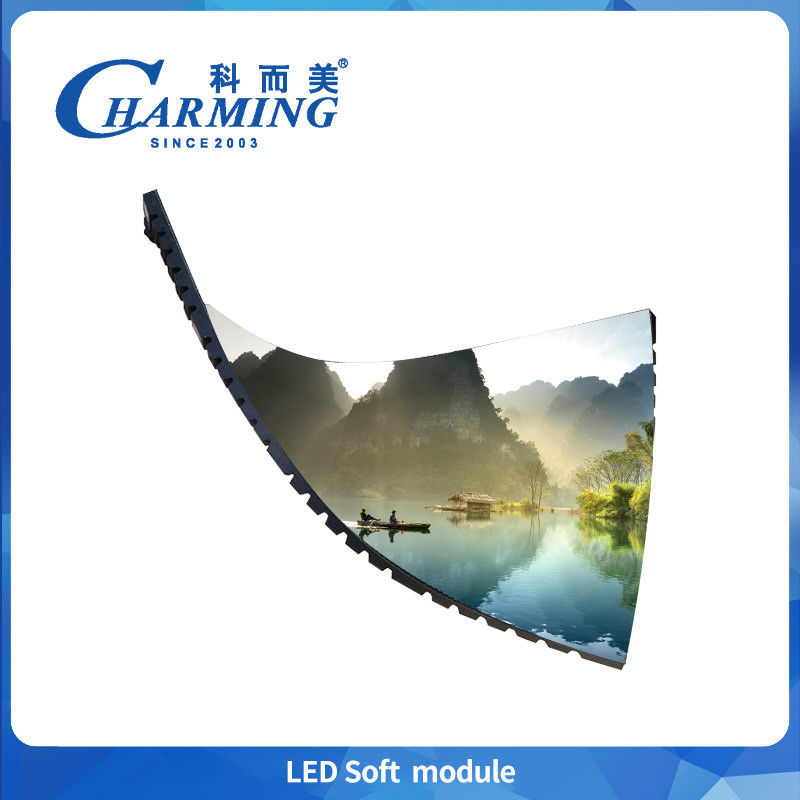

Wholesale P4 Led Soft Module Indoor Display Panel Module Weight 255g 256*128MM Low Energy Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 256×128×7.5MM/320*160*7.5MM | Grey Level: | 14-16 Bit |
|---|---|---|---|
| Pixel Density(Dot/㎡): | 62500Dot/㎡ | LED Standard: | SMD2020 |
| Brightness（CD/ ）: | ＞800 | Life Span: | 100000 Hours |
| Protection Level: | IP40 | Module Maximum Power（w）: | 6W |
| Scan Mode: | 1/32Scan | ||
| Highlight: | 256*128MM Led Soft Module,P4 Led Soft Module,Indoor Display Panel Module |
||
Product Description
Specification
| Type Number | P4 |
| Dim ension(MM) | 256*128*7.5MM |
| Module Maximum power(w) | 6 |
| Module weight(g) | 255 |
| LED Standard | SMD2020 |
| Scan Mode | 1/32Scan |
| Pixel Density(Dot/m²) | 62500Dot/m² |
|
Refresh Rate(Hz)
|
1920Hz/3840Hz |
|
Brightness(CD/ m²)
|
>400 |
| Pixel Pitch(MM) | 4 |
|
Protection Level
|
IP40 |
|
Grey Level
|
14-16bit |
|
Working Temperature
|
-20~50°C |
|
Working Humidity
|
10％~65％RH |
|
Life Span
|
≥30000 Hours |
|
Working Voltage
|
AC 220V/(110V)±15% |
