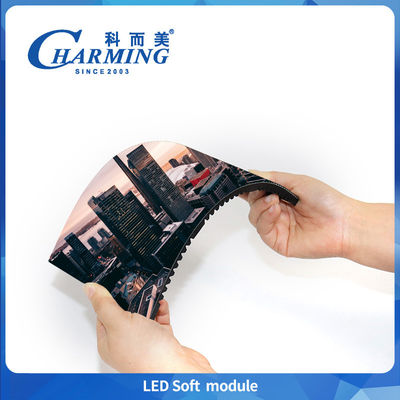

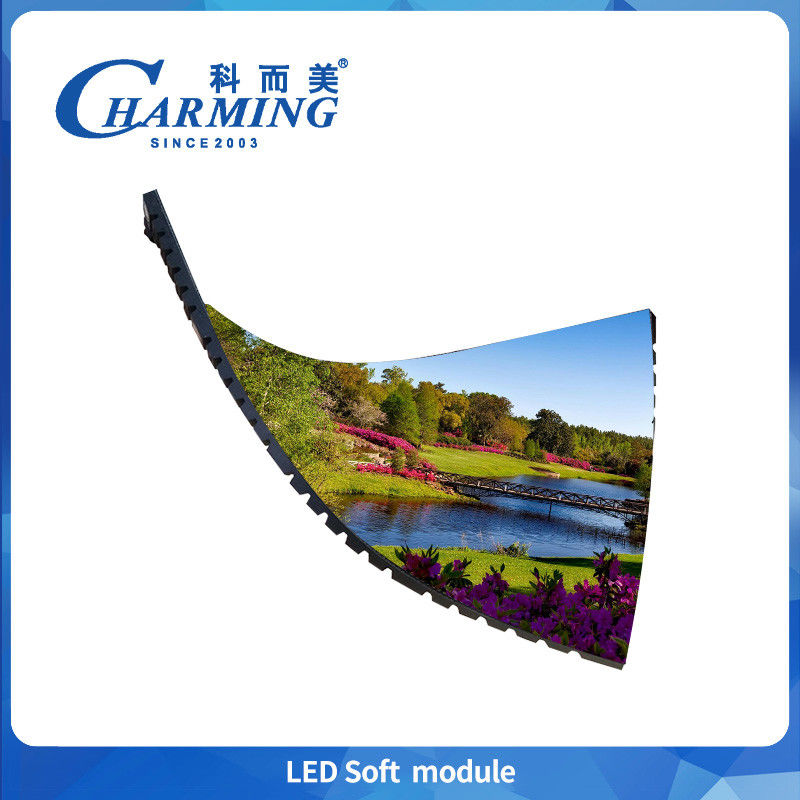

P2.5 Led Soft Module Indoor Screen Display Vedio Wall Panel SMD2020 IP40 Long Life
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 320*160*7.5MM | Refresh Rate（Hz）: | 7680Hz |
|---|---|---|---|
| Scan Mode: | 1/32Scan | Protection Level: | IP40 |
| Brightness（CD/ ）: | ＞700 | LED Standard: | SMD2020 |
| Life Span: | 100000 Hours | Module Maximum Power（w）: | 25W |
| Pixel Density(Dot/㎡): | 160000Dot/㎡ | ||
| Highlight: | High quality P2.5 Led Soft Module,Long Life P2.5 Led Soft Module,Indoor Screen Display Led Soft Module |
||
Product Description
High quality!!! P2.5 Led Soft Module Indoor Screen Display Vedio Wall Panel SMD2020 IP40 Long Life
Production Detail
Specification
| Type Number | P2.5 |
| Dim ension(MM) | 320*160*7.5MM |
| Module Maximum power(w) | 25 |
| Module weight(g) | 270 |
| LED Standard |
SMD 2020
|
| Scan Mode |
1/32Scan
|
| Pixel Density(Dot/m²) |
160000Dot/m²
|
|
Refresh Rate(Hz)
|
7680Hz |
|
Brightness(CD/ m²)
|
>800 |
| Pixel Pitch(MM) | 2.5 |
|
Protection Level
|
IP40 |
|
Grey Level
|
14-16bit |
|
Working Temperature
|
-20~50°C |
|
Working Humidity
|
10％~65％RH |
|
Life Span
|
≥30000 Hours |
|
Working Voltage
|
AC 220V/(110V)±15% |
Company profile
Certificate
Provide
1.We offer free technology training that includes both operational and maintenance training at the factory.
2.We offer the operation manual, software, test reports, and other related materials.
3.We offer various certifications, including CE and UL.
