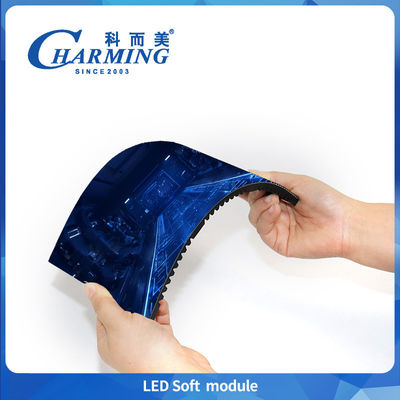

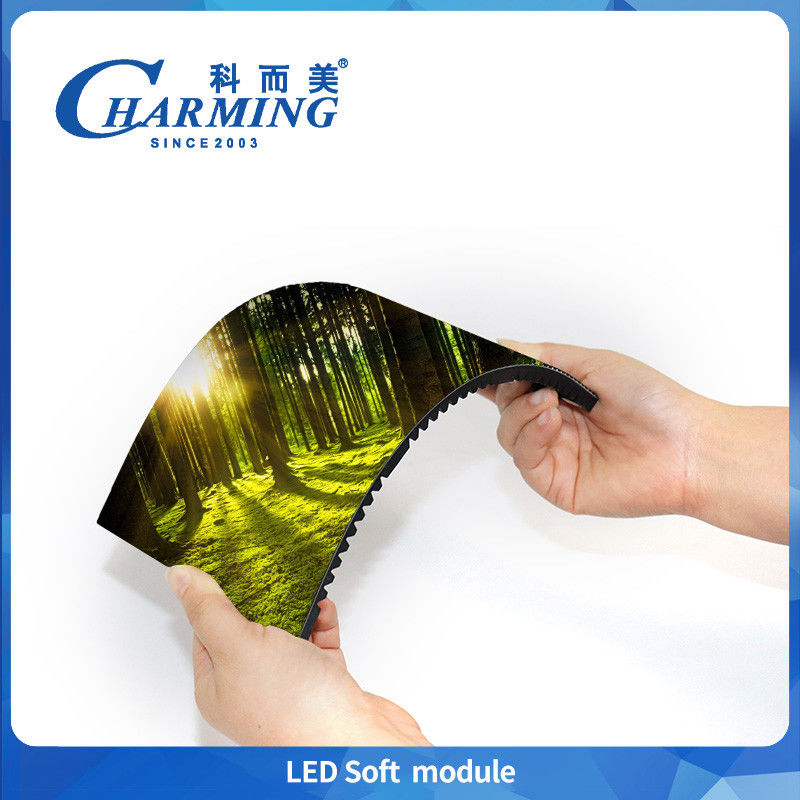

P2 Led Soft Module Indoor Screen Display Indoor Screen Panel 320*160MM SMD1515
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 320*160*7.5MM | Scan Mode: | 1/40Scan |
|---|---|---|---|
| LED Standard: | SMD1515 | Protection Level: | IP40 |
| Brightness（CD/ ）: | ＞700 | Life Span: | 100000 Hours |
| Working Temperature: | -20～50℃ | Module Maximum Power（w）: | 25W |
| Refresh Rate（Hz）: | 7680Hz | Maintenance Method: | Pre Maintenance |
| Highlight: | Indoor Screen Display,Long Life Span Indoor Screen Display,7680Hz Refresh Indoor Screen Display |
||
Product Description
Good Price P2 Led Soft Module Indoor Screen Display ,Indoor screen panel 320*160MM SMD1515
Production Detail
Case Show
Specification
| Type Number | P1.86 | P2 | P2.5 | P3 | P3.076 | P4 |
| Dim ension(MM) |
320*160*7.5MM
|
320*160*7.5MM | 320*160*7.5MM |
240*120*7.5MM
|
320*160*7.5MM
|
256*128*7.5MM |
| Module Maximum power(w) | 23 | 25 | 25 | 13 | 18 | 6 |
| Module weight(g) | 270 | 270 | 270 | 170 | 250 | 255 |
| LED Standard |
SMD1515
|
SMD1515 |
SMD 2020
|
SMD 2020
|
SMD2020 | SMD2020 |
| Scan Mode |
1/43Scan
|
1/40Scan
|
1/32Scan
|
1/20Scan
|
1/26Scan | 1/32Scan |
| Pixel Density(Dot/m²) |
288906 Dot/m²
|
250000 Dot/m²
|
160000Dot/m²
|
111111Dot/m²
|
105625 Dot/m² | 62500Dot/m² |
|
Refresh Rate(Hz)
|
7680Hz | 7680Hz | 7680Hz | 3840Hz/1920Hz | 1920Hz/38400Hz | 1920Hz/3840Hz |
|
Brightness(CD/ m²)
|
＞800 |
>700 | >800 | >800 | >700 | >400 |
| Pixel Pitch(MM) | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
|
Protection Level
|
IP40
|
IP40 | IP40 | IP40 | IP40 | IP40 |
|
Grey Level
|
14-16 bit
|
14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
|
Working Temperature
|
-20～50℃
|
-20～50℃
|
-20~50°C | -20~50°C | -20~50°C | -20~50°C |
|
Working Humidity
|
10%～65%RH
|
10%～65%RH
|
10％~65％RH | 10％~65％RH | 10％~65％RH | 10％~65％RH |
|
Life Span
|
≥30000 Hours
|
≥30000 Hours |
≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours |
|
Working Voltage
|
AC 220V/(110V)±15%
|
AC 220V/(110V)±15% |
AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
Company profile
Certificate
Provide
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
