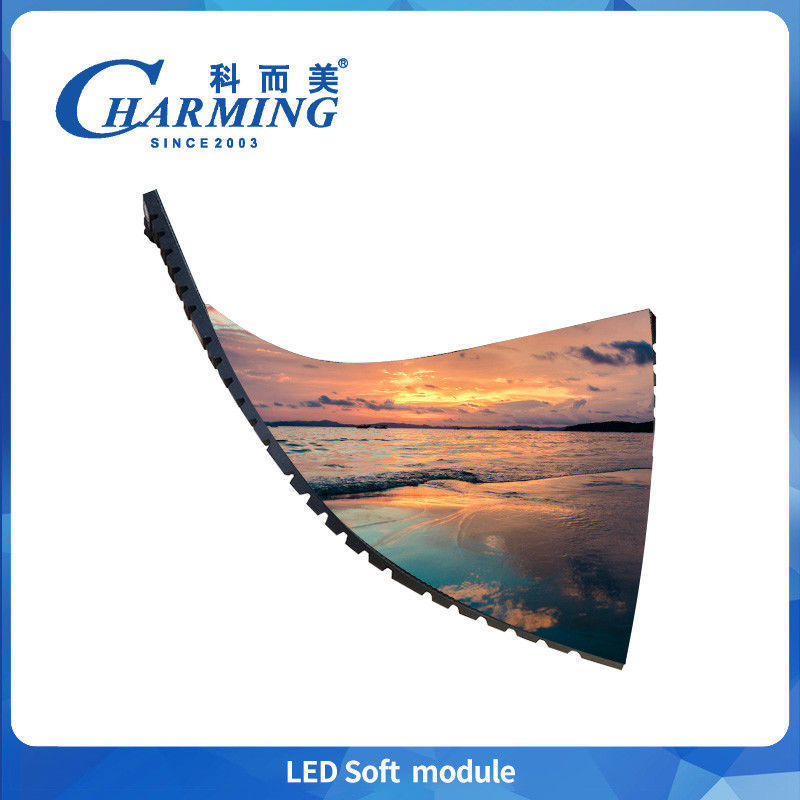

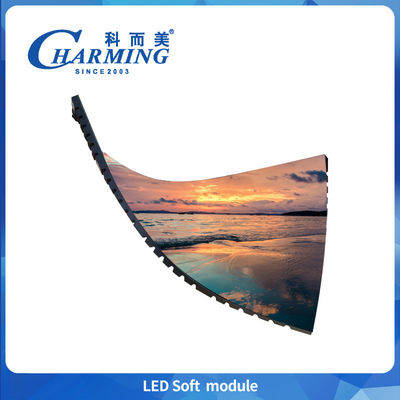

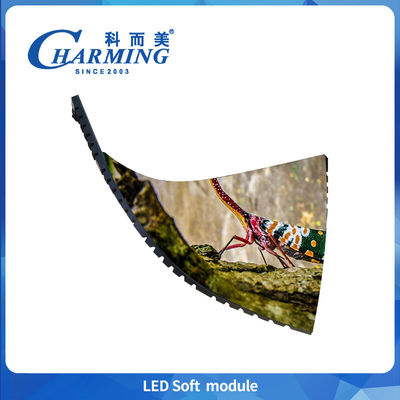

Factory PriceP1.86/P2/2.5/P3/P4Led Soft Module display screen IP40 240*120MM/320*160MMEnergy savingLong life
Product Details:
| Place of Origin: | China |
| Brand Name: | charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 256×128×7.5MM/320*160*7.5MM | Pixel Pitch(MM): | 2MM/2.5MM/3MM/4MM |
|---|---|---|---|
| Life Span: | ≥30000 Hours | Working Temperature: | -20～50℃ |
| Protection Level: | IP40 | LED Standard: | SMD1515/SMD2020 |
| Grey Leve: | 14-16 Bit | Refresh Rate（Hz）: | 78200Hz/1920Hz/3840Hz |
Product Description
Case Show
Specification
| Type Number | P1.86 | P2 | P2.5 | P3 | P3.076 | P4 |
| Dim ension(MM) |
320*160*7.5MM
|
320*160*7.5MM | 320*160*7.5MM |
240*120*7.5MM
|
320*160*7.5MM
|
256*128*7.5MM |
| Module Maximum power(w) | 23 | 25 | 25 | 13 | 18 | 6 |
| Module weight(g) | 270 | 270 | 270 | 170 | 250 | 255 |
| LED Standard |
SMD1515
|
SMD1515 |
SMD 2020
|
SMD 2020
|
SMD2020 | SMD2020 |
| Scan Mode |
1/43Scan
|
1/40Scan
|
1/32Scan
|
1/20Scan
|
1/26Scan | 1/32Scan |
| Pixel Density(Dot/m²) |
288906 Dot/m²
|
250000 Dot/m²
|
160000Dot/m²
|
111111Dot/m²
|
105625 Dot/m² | 62500Dot/m² |
|
Refresh Rate(Hz)
|
7680Hz | 7680Hz | 7680Hz | 3840Hz/1920Hz | 1920Hz/38400Hz | 1920Hz/3840Hz |
|
Brightness(CD/ m²)
|
＞800 |
>700 | >800 | >800 | >700 | >400 |
| Pixel Pitch(MM) | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
|
Protection Level
|
IP40
|
IP40 | IP40 | IP40 | IP40 | IP40 |
|
Grey Level
|
14-16 bit
|
14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
|
Working Temperature
|
-20～50℃
|
-20～50℃
|
-20~50°C | -20~50°C | -20~50°C | -20~50°C |
|
Working Humidity
|
10%～65%RH
|
10%～65%RH
|
10％~65％RH | 10％~65％RH | 10％~65％RH | 10％~65％RH |
|
Life Span
|
≥30000 Hours
|
≥30000 Hours |
≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours |
|
Working Voltage
|
AC 220V/(110V)±15%
|
AC 220V/(110V)±15% |
AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
Certificate
Company profile
Warranty
We guarantee all our displays, modules, and parts for two full years. During this period, we will replace or repair any faulty items at no cost. We offer lifetime maintenance, charging only for raw materials. We provide free technology training, including operation and maintenance of LED screens at our factory. Additionally, we supply the operation manual, software, test report, and CAD drawings for assembly, along with expert advice.
What can we offer?
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
