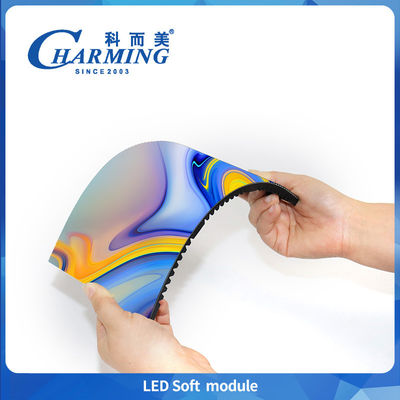

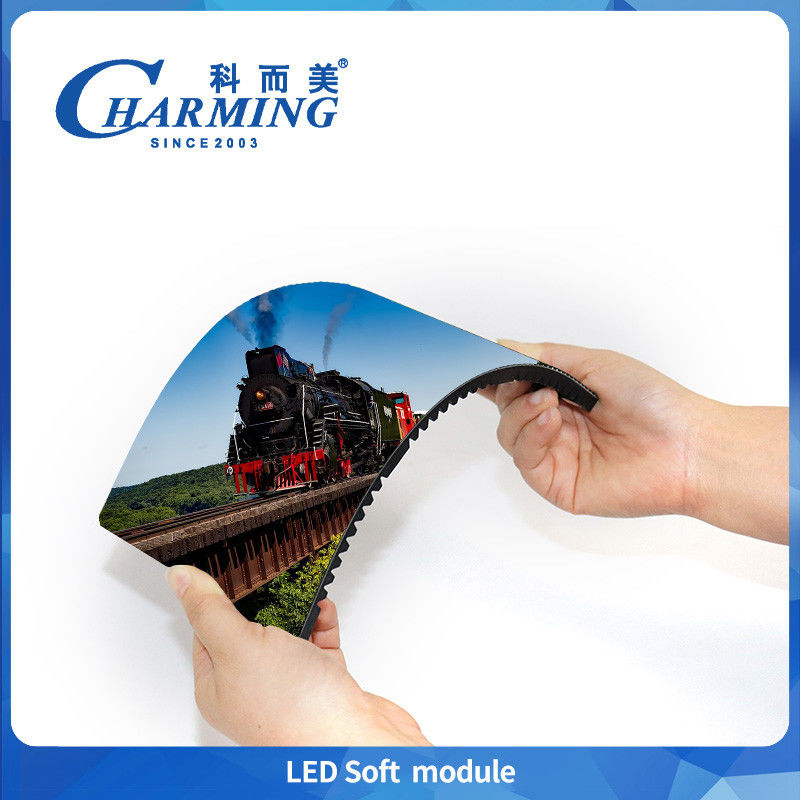

High Performance P2.5/P3Led Soft Module Indoor screen IP40 240*120MM/320*160MM For indoor advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 256×128×7.5MM/320*160*7.5MM | Pixel Pitch(MM): | 2.5mm/3mm |
|---|---|---|---|
| Protection Level: | IP40 | Brightness（CD/ ）: | ＞800 |
| Working Humidity: | 10%-65%RH | Working Temperature: | -20～50℃ |
| Life Span: | 100000 Hours | Working Voltage: | AC 220V/（110V）±15% |
| Maintenance Method: | Pre Maintenance | ||
Product Description
Specification
| Type Number | P1.86 | P2 | P2.5 | P3 | P3.076 | P4 |
| Dim ension(MM) |
320*160*7.5MM
|
320*160*7.5MM | 320*160*7.5MM |
240*120*7.5MM
|
320*160*7.5MM
|
256*128*7.5MM |
| Module Maximum power(w) | 23 | 25 | 25 | 13 | 18 | 6 |
| Module weight(g) | 270 | 270 | 270 | 170 | 250 | 255 |
| LED Standard |
SMD1515
|
SMD1515 |
SMD 2020
|
SMD 2020
|
SMD2020 | SMD2020 |
| Scan Mode |
1/43Scan
|
1/40Scan
|
1/32Scan
|
1/20Scan
|
1/26Scan | 1/32Scan |
| Pixel Density(Dot/m²) |
288906 Dot/m²
|
250000 Dot/m²
|
160000Dot/m²
|
111111Dot/m²
|
105625 Dot/m² | 62500Dot/m² |
|
Refresh Rate(Hz)
|
7680Hz | 7680Hz | 7680Hz | 3840Hz/1920Hz | 1920Hz/38400Hz | 1920Hz/3840Hz |
|
Brightness(CD/ m²)
|
＞800 |
>700 | >800 | >800 | >700 | >400 |
| Pixel Pitch(MM) | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
|
Protection Level
|
IP40
|
IP40 | IP40 | IP40 | IP40 | IP40 |
|
Grey Level
|
14-16 bit
|
14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
|
Working Temperature
|
-20～50℃
|
-20～50℃
|
-20~50°C | -20~50°C | -20~50°C | -20~50°C |
|
Working Humidity
|
10%～65%RH
|
10%～65%RH
|
10％~65％RH | 10％~65％RH | 10％~65％RH | 10％~65％RH |
|
Life Span
|
≥30000 Hours
|
≥30000 Hours |
≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours |
|
Working Voltage
|
AC 220V/(110V)±15%
|
AC 220V/(110V)±15% |
AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
Certificate
Company profile
CharmingLED display is Top-End Quality LED Display Manufacturer In China. It is a Hi-tech enterprise, integrating R&D, production, Marketing, technical support and service of LED screen solution in the field of outdoor & indoor application. Focus on High end market with high quality products. Products are enjoying a Hot market in US, Australia etc. Strategic Business Policy: Low Cost Control, High-
Question?
1.How to ship?
Normally, the display will be shipped by air and sea, we suggest you go with by sea because it is
2.What kind of warranty do you offer?
Our products come with a one-year warranty.
3.How long will it take to delivery the goods?
For led module our delivery date is 1-5days,for led screen order less than 100 square meter we can delviery within 15 working days.
