Led Soft Module Easy And Efficient Installation More Than 130 Patents Module Flexibility Display Standardized Size Design
Product Details:
| Place of Origin: | China |
| Brand Name: | charming |
| Certification: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case,Wooden Case,Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | Western Union, L/C, T/T,Paypal,Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Life Span: | ≥30000 Hours | Protection Level: | IP40 |
|---|---|---|---|
| Working Temperature: | -20～50℃ | Working Voltage: | AC 220V/（110V）±15% |
| Brightness（CD/ ）: | ＞800 | Dimension(MM): | 240×120×7.5MM |
| Working Humidity: | 10%-65%RH | ||
| Highlight: | 130 Patents Led Soft Module,Standardized Size Led Soft Module |
||

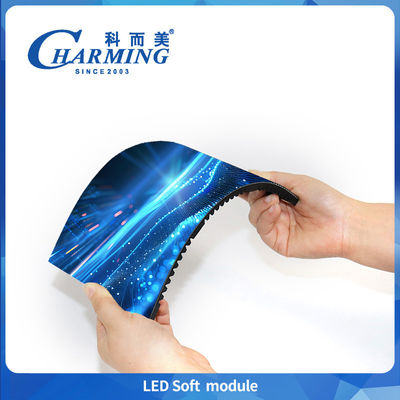

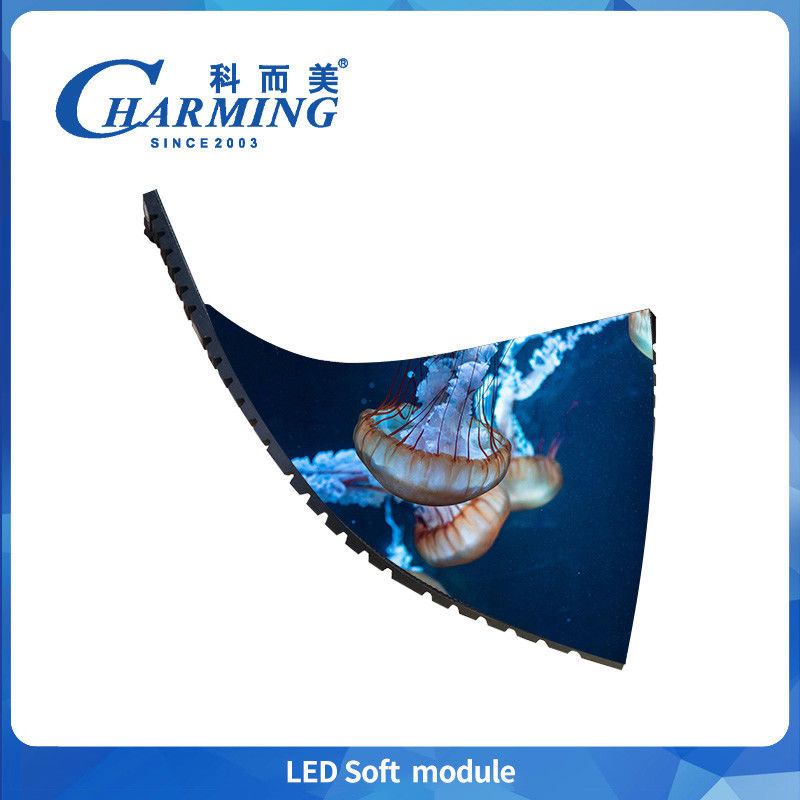

Product Description
- Module standardized dimensions: 320X160mm, 240X120mm,
-
Minimum bending angle: 135 degrees
-
18 magnets are matched with the single board,and each magnet has a magnetic contentUp to 2000GS, solving the problem of
ordinary soft modules The problem of debonding and warping.
Specification
| Type Number | P1.86 | P2 | P2.5 | P3 | P3.076 | P4 |
| Dim ension(MM) |
320*160*7.5MM
|
320*160*7.5MM | 320*160*7.5MM |
240*120*7.5MM
|
320*160*7.5MM
|
256*128*7.5MM |
| Module Maximum power(w) | 23 | 25 | 25 | 13 | 18 | 6 |
| Module weight(g) | 270 | 270 | 270 | 170 | 250 | 255 |
| LED Standard |
SMD1515
|
SMD1515 |
SMD 2020
|
SMD 2020
|
SMD2020 | SMD2020 |
| Scan Mode |
1/43Scan
|
1/40Scan
|
1/32Scan
|
1/20Scan
|
1/26Scan | 1/32Scan |
| Pixel Density(Dot/m²) |
288906 Dot/m²
|
250000 Dot/m²
|
160000Dot/m²
|
111111Dot/m²
|
105625 Dot/m² | 62500Dot/m² |
|
Refresh Rate(Hz)
|
7680Hz | 7680Hz | 7680Hz | 3840Hz/1920Hz | 1920Hz/38400Hz | 1920Hz/3840Hz |
|
Brightness(CD/ m²)
|
＞800 |
>700 | >800 | >800 | >700 | >400 |
| Pixel Pitch(MM) | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
|
Protection Level
|
IP40
|
IP40 | IP40 | IP40 | IP40 | IP40 |
|
Grey Level
|
14-16 bit
|
14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
|
Working Temperature
|
-20～50℃
|
-20～50℃
|
-20~50°C | -20~50°C | -20~50°C | -20~50°C |
|
Working Humidity
|
10%～65%RH
|
10%～65%RH
|
10％~65％RH | 10％~65％RH | 10％~65％RH | 10％~65％RH |
|
Life Span
|
≥30000 Hours
|
≥30000 Hours |
≥30000 Hours | ≥30000 Hours | ≥30000 Hours | ≥30000 Hours |
|
Working Voltage
|
AC 220V/(110V)±15%
|
AC 220V/(110V)±15% |
AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% | AC 220V/(110V)±15% |
Company introduction
CharmingLED Display is a top-tier LED display manufacturer in China, specializing in high-tech solutions for both outdoor and indoor applications. The company integrates research and development, production, marketing, technical support, and service to deliver high-quality products. These products are particularly popular in the United States and Australia. CharmingLED's strategic business policy focuses on maintaining low costs while ensuring high-quality output.
CharmingLED Tech offers exceptional online customer service, always ready to assist when needed. We prioritize product safety and collaborate with leading logistics partners to ensure the fastest and safest delivery of our products.
1.Could you provide a sample order for a LED screen?
We welcome sample orders to evaluate and verify the quality of both LED modules and LED screens.
2.How long will it take to deliver the goods??
For LED modules, our delivery date is 1-5 days. For LED screens ordered under 100 square meters, delivery takes up to 15 working days.
3.What warranty do you provide??
Our products come with a one-year warranty.
4.What is the quality of the after-sales service??
Our professional team manages after-sales service, offering a service hotline for complaints and feedback. Additionally, we provide 24-hour online support to help resolve any issues.
Warranty
We provide a two-year warranty on all our displays, modules, and parts, covering replacement or repair of any faulty items at no cost. Additionally, we offer lifetime maintenance, charging only for raw materials. We also provide free technology training on the operation and maintenance of LED screens at our factory, along with the operation manual, software, test report, and CAD drawings for assembly. Expert advice is also available.
Certification and Documents
1.We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
