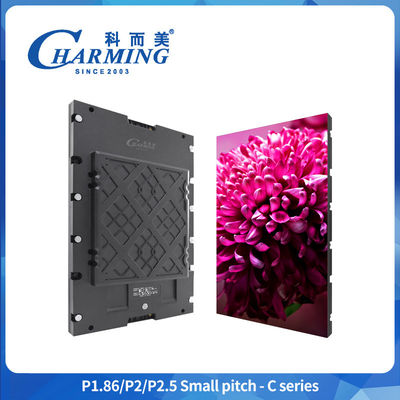

Small Pitch LED Display C Series Ultra Thin And Lightweight Design And Simplifies Installation
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Small Pitch - C Series | Application: | TV Room, Meeting Room, Studio |
|---|---|---|---|
| Protection Rate: | IP40 | Module Size: | 320*160mm |
| Refresh Frequency: | 3840HZ | Weight: | 2.42kg |
| Maintenance Method: | Front Maintenance | Cabinet Size: | 320*480*52mm |
| Brightness: | ≥800CD/㎡ | ||
| Highlight: | Small Pitch LED Display,Ultra Thin Small Pitch LED Display |
||
Product Description
Small pitch - C series Ultra thin and lightweight design and Simplifies Installation
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | ≥600CD/㎡ | ≥600CD/㎡ | ≥800CD/㎡ |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
Q&A
1.Can I have a sample order for led screen?
Yes, we welcome sample order to test and check quality for both led module and led screen.
2.How long will it take to delivery the goods?
For led module our delivery date is 1-5days,for led screen order less than 100 square meter we can delviery within 15 working days.
3.What kind of warranty do you offer?
We offer one years warranty for our products.
4.How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
