China Factory Directly Led Module P2.5 Indoor Led Display Module Full Color IP50 Indoor 4K Advertising Indoor Led Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Viewing Angle: | 120° | Brightness: | 600-800cd/m² |
|---|---|---|---|
| Module Size: | 320x160MM | LED Standard: | SMD2020 Standard |
| Working Humidity: | 10%～90%RH | Protection Level: | IP50 |
| Working Voltage: | DC 5V | Module Max.Power（W）: | 24W |
| Pixel Density(Dot/ ㎡): | 160000 Dot/m² | ||
| Highlight: | Full Color Indoor Led Display Module,IP50 Indoor Led Display Module,China Factory Indoor Led Display Module |
||
Product Description

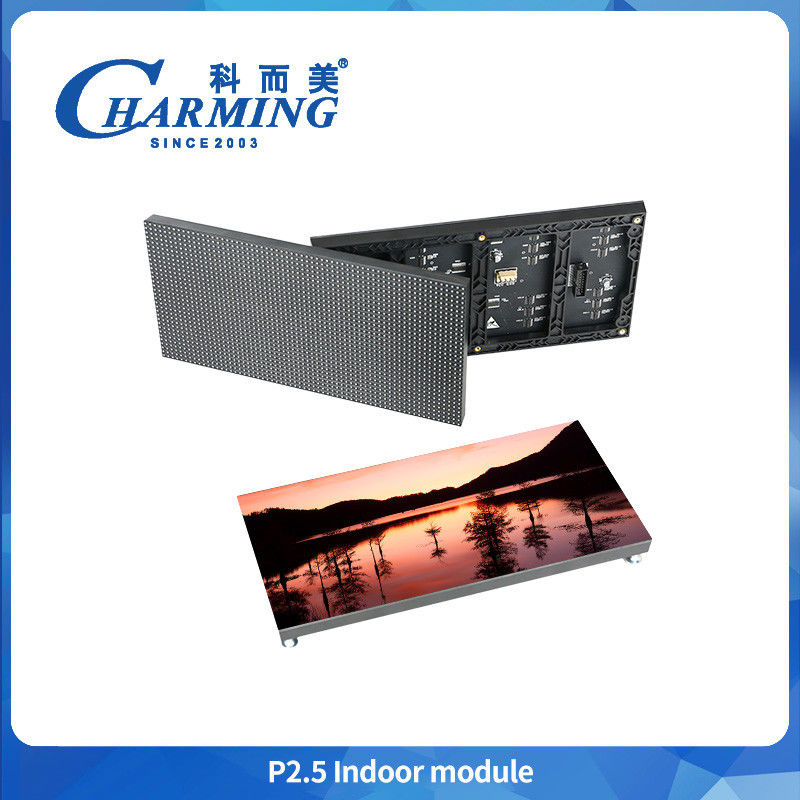

China Factory Directly Led Module P2.5 Indoor Led Display Module Full Color IP50 Indoor 4K Advertising Indoor Led Screen
Product introduce:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor requirements;
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.High refresh rate , low light high gray
3.Cell Phone & Wifi contrl,common good,flexible and easy to use
4.Clear picture without flicker and distortion.No light leakage trouble
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Company introduce
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED. In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led. It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications. Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 21 years.
FAQ
1.How long will it take to delivery the goods?
-For led module our delivery date is 1-5days,for led screen order less than 100 square meter we can delviery within 15 working days.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Paypal, or other is ok .This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Technology Training And Documents and Certification
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Fastest Delivery and Best Online Services
Charming LED tech provides best online services to the customers.We are always ready to assist you when you need us. Also we take good care of the safety of the products. We work with the leading logistics who ensure fastest and safest delivery of your products.
