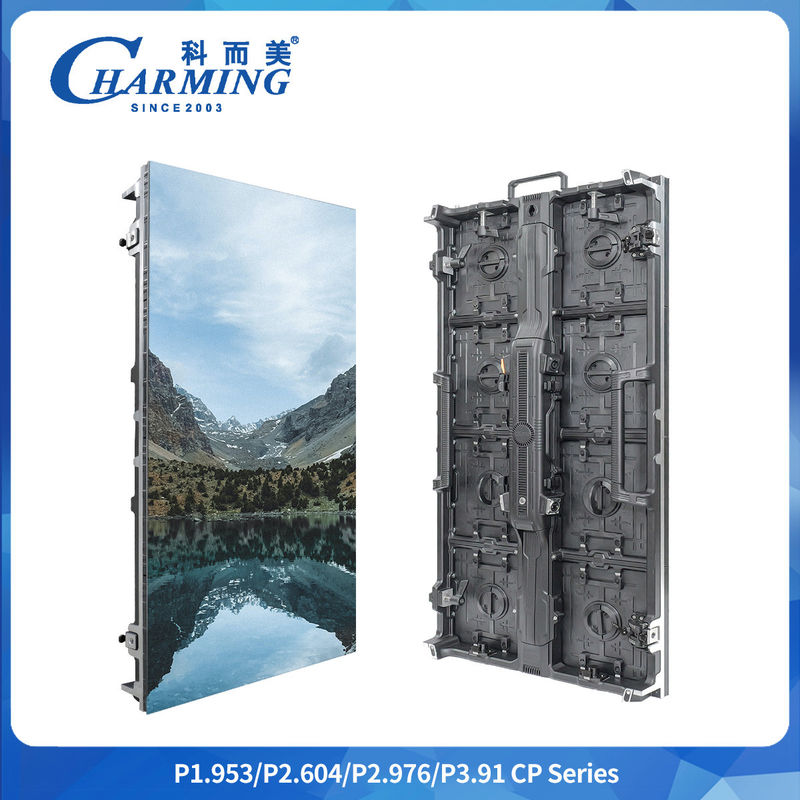

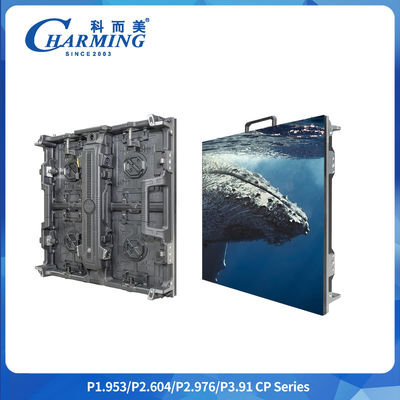

Right Angle Column P2.6/2.98/3.91 CP Series Outdoor LED Video Wall Is Upgraded To A Hiddenmodule Handle.
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Rental Screen | Pixel Pitch: | 2.604,2.976,3.91mm |
|---|---|---|---|
| Cabinet Size: | 500*500mm/500*1000mm | IP Grade: | IP65 |
| View Angle: | 140°, 120 | Refresh Frequency: | 7680Hz |
| LED Size: | SMD2020 | Pixel Density: | 65536Dot/m² |
| Screen Brightness: | ≥5000 CD/㎡ | ||
Product Description
Right Angle Column P2.6/2.98/3.91 CP Series Outdoor LED Video Wall Is Upgraded To A Hiddenmodule Handle
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm box weight is only 7 kg.500*1000mm box weight is only 11.4 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shape,The CP series flexible modelsupports splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15% | ||
Details showing:
Want to know Charmingled?
1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as rental outdoor led display, the smallest unit size is:500x1000mm.
2,How to install led display?
We will provide drawings or Teamviewer to help you install.
3,How to order LED display?
Please tell me size of led display,where will the display be used.
4,How to ship?
Normally, the display will be shipped by air and sea, we suggest you go with by sea because it is cheaper.
5,How to finish payment?
You can transfer payment by TT,West union, recommand Alibaba Trade Assurance.
