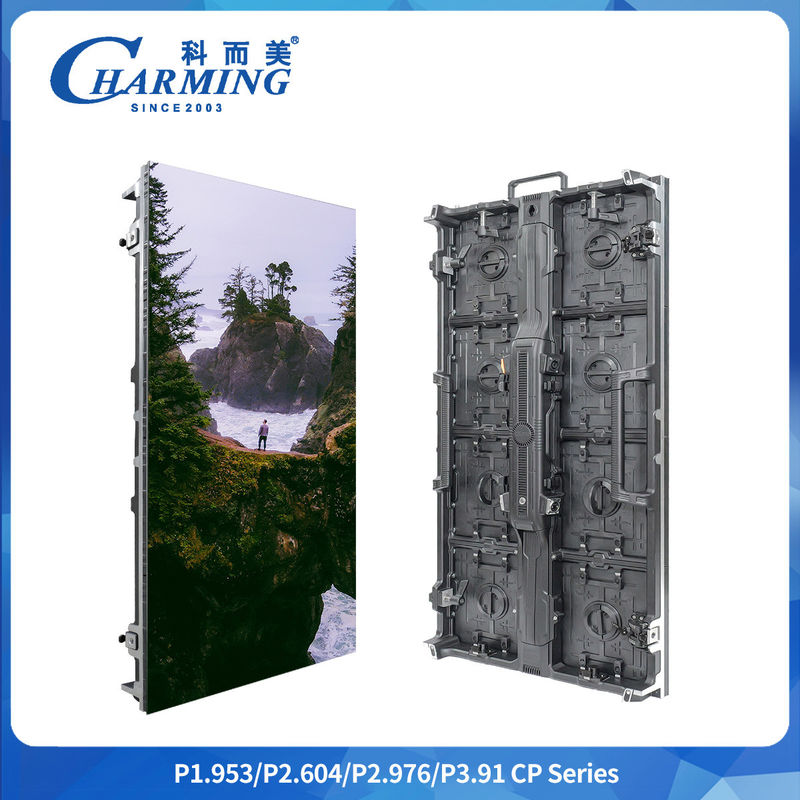

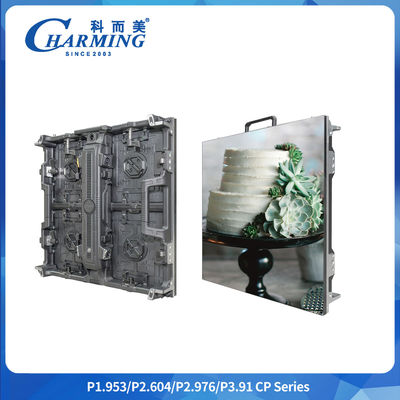

CP series 7680hz Ultra Hd IP65 Waterproof Indoor/Outdoor Led Video Display For Promotion Events Outdoor Concerts
Product Details:
Place of Origin: | China |
Brand Name: | Charming |
Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
Model Number: | P3.91 |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Carton Case, Wooden Case, Flight Case |
Delivery Time: | 10 Working Days after Payment |
Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
Supply Ability: | 1000 PCS per week |
Detail Information |
|||
Pixel Pitch: | 2.604/2.976/3.91MM | Protective Level: | IP65 |
---|---|---|---|
Cabinet Weight: | 7KG/11.4KG | Cabinet Size: | 500*500/1000*84MM |
Refresh Rate: | 7680Hz | Viewing Angle: | 140°/120° |
Scan Type: | 1/16 Scans | Led Size: | SMD1921 |
Cabinet Material: | Aluminum Alloy | Screen Brightness: | ≥4500CD/m² |
Pixel Density: | 62500Dot/m² |
Product Description
CP series 7680hz Ultra Hd IP65 Waterproof Indoor/Outdoor Led Video Display For Promotion Events Outdoor Concerts
Product Descriptions:
1.Box corner guard, Handle Stainless stee, quick lock.
2.The final products feature supreme quality and offers best outputs.
3. installation simple maintenance for various installation environment, improve work efficiency.
4.Led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
Product Details:
Removable power supply box
Can do front and rear maintenance
Module latch is opened with a twist, hidden module puller.
Arc adjustment maximum angle 22.5
Quick locking nut with one hand operation
Cabinet Type | Flexible | Curved | Ruglar |
Dimension(MM) | 500x500x84mm | 500x500x84mm | 500x1000x84mm |
Max Power(W) | 200W | 200W | 400W |
Cabinet Weight(KG) | 7KG | 7KG | 11.4KG |
Refresh Rate(Hz) | 7680Hz | 7680Hz | 7680Hz |
Pixel Pitch(MM) | 2.6/2.976/3.91mm | ||
Pixel Density(Dot/M²) | 65536 Dot/M² | ||
Led Standard | SMD1921 | ||
Brightness(CD/M²) | ≥4500CD/M² | ||
Grey Level | 14-16 bit | ||
View Angle | 120°/140° | ||
Life Span | ≥50000 Hours | ||
Maintenance | Front Service | ||
IP Rate | IP65 | ||
Cabinet Material | Aluminum Alloy | ||
Working Humidity | 10%~90%RH | ||
Working Temperature | 20~60℃ | ||
Working Voltage | AC110V/220V |
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Company introduce
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 19 years.
What we offer to customer?
Q1.What's the warranty?
2 years warranty! We will prepare enough spare parts for you,
if there are broken parts, can be replaced in time without affecting the use of!
Q2.How to make order?
Provide your E-mail address, detail address and phone number, we will make payment link for you!
Q3.What is the shipping method?
It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Q4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q5.Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
Q6. How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with
your complains and feedback.We also offer 24-hour online service to help you solving problems.
