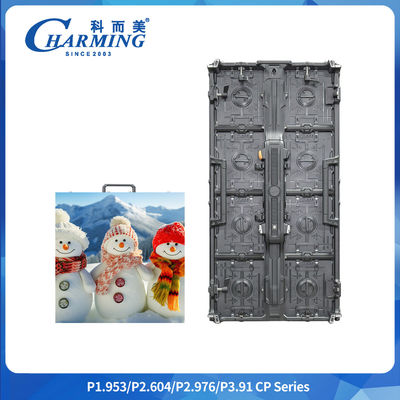

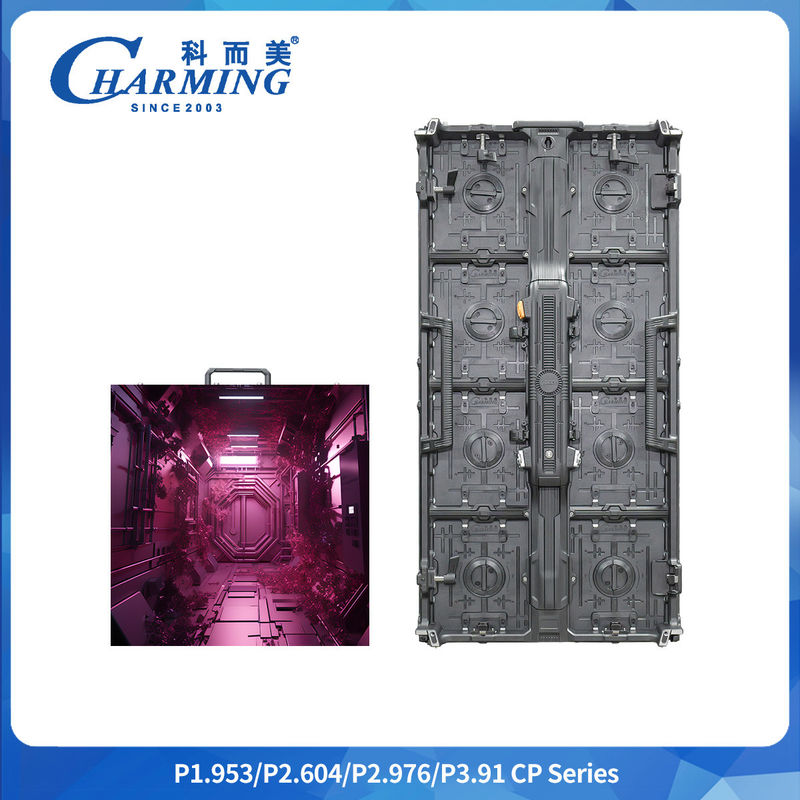

Split Structure Design P2.6/2.98/3.91 CP Series 600~800 CD/㎡ LED Video120° Wall With One-Handed Operation Quick Lock Nut
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Rental Indoor& Outdoor Screen | Pixel Pitch: | 2.6-3.91mm |
|---|---|---|---|
| Cabinet Size: | 500*500mm/500*1000mm | Life Span: | ≥50,000 Hours |
| LED Size: | SMD1515 | IP Grade: | IP43 |
| Pixel Density: | 65536Dot/m² | Screen Brightness: | 800CD/㎡ |
| Refresh Frequency: | 7680Hz | ||
| Highlight: | CP Series LED Video Wall,Quick Lock Nut LED Video Wall,One-Handed Operation LED Video Wall |
||
Product Description
Split Structure Design P2.6/2.98/3.91 CP Series 600~800 CD/㎡ LED Video120° Wall With One-Handed Operation Quick Lock Nut
1.Full series splicing.
2.Perfect curve.
3.Any shape,splicing with regularmodels to meet variousstyling needs.
4.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | 600-800 CD/㎡ | ||
| Best Viewing Distance | ≥3M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 6.6kg | 6.7kg | 10.8kg |
| IP Grade | IP42 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15% | ||
Details showing:
Know about Charmingled
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
