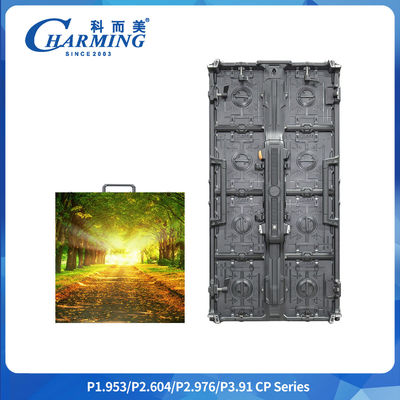

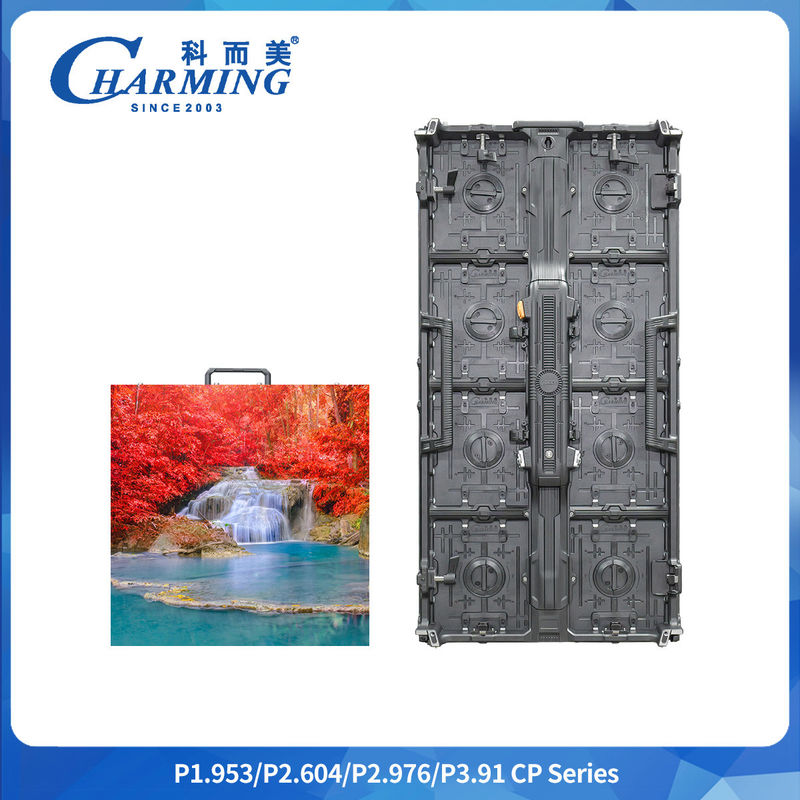

Lightweight 6.6 Kg P2.6-3.91 Curved Flexible IP42 CP Series LED Video Wall Special-shaped Splicing Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P1.9-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Rental Indoor& Outdoor Screen | Pixel Pitch: | 2.6-3.91mm |
|---|---|---|---|
| Cabinet Size: | 500*500mm/500*1000mm | Life Span: | ≥50,000 Hours |
| LED Size: | SMD1515 | IP Grade: | IP43 |
| Pixel Density: | 65536Dot/m² | Screen Brightness: | 800CD/㎡ |
| Refresh Frequency: | 7680Hz | Scan Type: | 1/21, 1/28,1/32Scan |
| Highlight: | IP42 Curved LED Video Wall,Special-shaped splicing Screen Display,Flexible Curved LED Video Wall |
||
Product Description
Lightweight 6.6 kg P2.6-3.91 Curved; Flexible IP42 CP Series LED Video Wall Special-shaped splicing Screen Display
Product Features
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm flexible corner screen weighs only 6.7 kg. 500*500mm box weight is only 6.6 kg. 500*1000mm box weight is only 10.8 kg.
3.Full series splicing.
4.Perfect curve,can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shape,splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | 600-800 CD/㎡ | ||
| Best Viewing Distance | ≥3M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 6.6kg | 6.7kg | 10.8kg |
| IP Grade | IP42 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15% | ||
Details:
CP Series indoor screen can quickly hard connect and it is aluminum alloy box.
CP Series rentsl screen can change any shapes and it can front and rare maintance.
Full series of CP series can be splicing and also can be very perfect curves
Know about Charmingled
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 21 years.
Q1.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
Q2. How to install and debug?
Answer: We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q3.What's the warranty?
Answer: 2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q4.What's the minimum quatity?
Answer: Sample is available! Quantity is negotiable!
Q5.How to make order?
Answer: Provide your E-mail address, detail address and phone number, we will make payment link for you!
