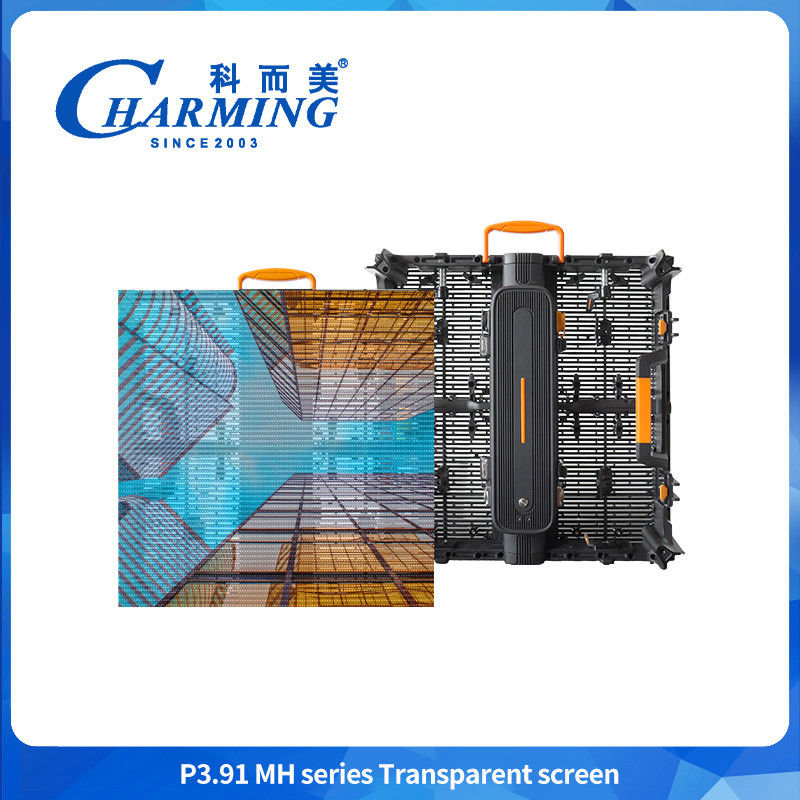

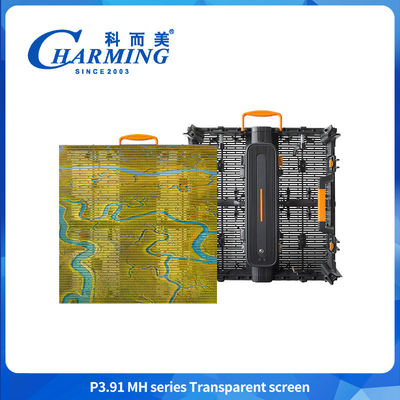

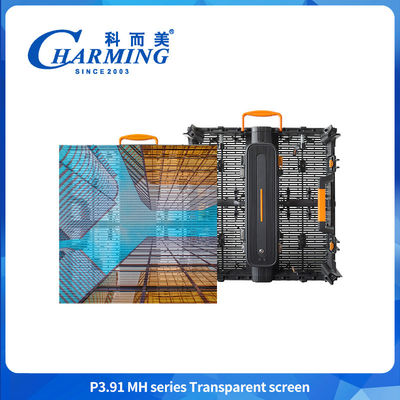

500X500/500X1000X88.5mm P3.91MH Series Transparent Screen Not Easily Deformed With Control Box
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P391MH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | P3.91MH Series Transparent Screen | LED Standard: | SMD1921 |
|---|---|---|---|
| Brightness(CD/m): | ≥5000 CD/㎡ | Protection Level: | IP65 |
| Working Temperature: | -20~60°C | Viewing Angle: | 140° |
| Max.Power(w): | 200W/400W | Life Span: | ≥50000 Hours |
| Pixel Pitch(MM): | 3.91-7.8125MM | Refresh Rate(Hz): | 1920Hz/3840Hz |
| Cabinet Material: | Magnesium Alloy | ||
| Highlight: | P3.91MH Series Transparent Screen,500X1000X88.5mm Transparent Screen,500X500 Transparent Screen |
||
Product Description
500X500/500X1000X88.5mm P3.91MH Series Transparent Screen not easily deformed with control box
Product Descriptions
- Easy to install, with a thickness of only 88.5mm
- High refresh rate, high contrast, high grayscale
- Wind resistant ventilation design
Details Descriptions
This module adopts a hollow design, allowing air to flow back and forth, which helps to solve the heat dissipation problem of the box.
Product parameters
|
Type Number
|
P391MH
|
P391MH
|
|
Dimension(MM)
|
500 x 500x 88.5MM
|
500x1000x88.5MM
|
|
Max.Power(W)
|
200W
|
400W
|
|
Cabinet Weight(KG)
|
6.2KG
|
11.2KG
|
|
Brightness(CD/m)
|
≥5000 CD/㎡
|
|
|
LED Standard
|
SMD1921
|
|
|
Viewing Angle
|
140°
|
|
|
Protection Level
|
IP65
|
|
|
Refresh Rate(Hz)
|
1920Hz/3840Hz | |
|
Pixel Pitch(MM)
|
3.91-7.8125MM
|
|
|
Scan Mode
|
1/8Scan
|
|
|
Pixel Density(Dot/m)
|
32768 Dot/㎡ |
|
|
Cabinet Material
|
Magnesium Alloy
|
|
|
Maintenance Method
|
Back Maintenance
|
|
|
Grey Level
|
16 Bit
|
|
|
Working Temperature
|
-20~60°C
|
|
|
Working Humidity
|
10%-90%RH
|
|
|
Life Span
|
≥50000 Hours
|
|
