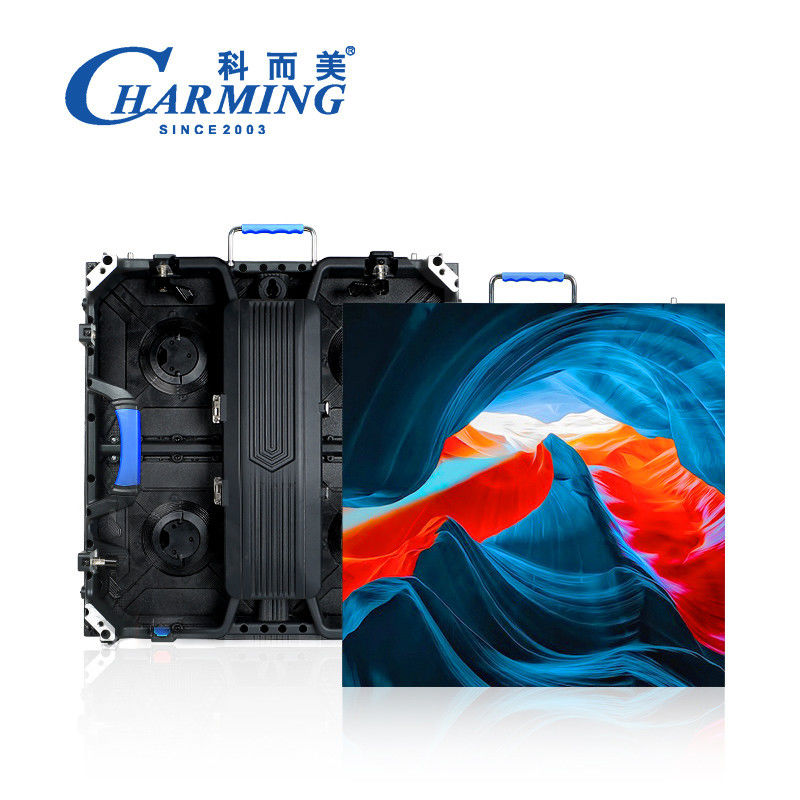

IP65 Aluminum Alloy Cabinet Material Work Over 50000 Hours P2.6 Led Outdoor Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Key Word: | P2.6 Outdoor Led Screen | Cabinet Material: | Aluminum Alloy |
|---|---|---|---|
| Maintenance Method: | Back Maintenance | Panle Size: | 500x500mm, 500x1000mm |
| Refresh Rate: | 3840Hz/7680Hz | Pixel Configuration: | 2.6mm |
| Scan Mode: | 1/32 Scan | IP Rate: | IP65 |
| Brightness: | ≥5000CD/M² | Life Span: | ≥100000 Hours |
| Viewing Angle: | 140° | ||
| Highlight: | 50000 hours led outdoor screen,P2.6 led outdoor screen |
||
Product Description
Full-color P2.6 LED outdoor screen for stages, hotels, etc.
P2.6 Outside Led Screen Video Wall For Rental&Commercial Event
Product Advantage
1. Light Weight
K series P2.6,its weight is light, 500*500*86mm cabinet only 8 kg, 500*1000*86mm cabinet only 14.8 kg.
2.Ultra Thin
The cabinet thickness only 86mm
3. Precise Positioning Of Installation
Seamless splicing between the upper and lower,left and right positions of the quick docking cabinet to improve the installation efficiency.
4.Protection Corner
Effectively protecting the led lamp of the corner led modules from colliding and falling off during transportation or repeated disassembly when for rental.
5.Led Module Protection
keep a gap between the bottom LED modules and ground to avoid collided when transporting.
Module Handle
It is easier to remove the module when you want to replace the module and maintain the cabinet.
Alternative Function
1. Anti-collision Corner
It can effectively prevent modules and lamp beads from being knocked or impacted during transportation and carrying.
2. Curved Lock Design
The cabinet with curved lock can be bent by plus or minus 15 degrees, and can be used as curved screen and circular screen.
Important Parameters
|
Type Number |
RK26W-H |
RK26WX-H |
|---|---|---|
|
Dimension(MM) |
500x500x86MM |
500x1000x86MM |
|
Max Power(W) |
200W |
400W |
|
Cabinet Weight(KG) |
8KG |
14.8KG |
|
Refresh Rate(Hz) |
3840Hz / 7680Hz |
|
|
Pixel Pitch(MM) |
2.6MM |
|
|
Led Standard |
SMD1515 |
|
|
Pixel Density(Dot/M²) |
65536 Dot/M² |
|
|
Brightness(CD/M²) |
≥4500CD/M² |
|
|
IP rate |
65 |
|
|
Viewing Angle |
140° |
|
|
Cabinet Material |
Aluminum Alloy |
|
|
Grey Level |
16 Bit |
|
|
Maintenance |
Back Maintenance |
|
|
Working Temperature |
-20~60℃ |
|
|
Working Humidity |
10%~90%RH |
|
|
Life Span |
≥50000 Hours |
|
|
Working Voltage |
AC110V/220V, 50/60Hz | |
Why choose us
1. Product Quality
We can provide customers a comprehensive solution delivery of series-related products.
We can provide customers high quality products which allow them to scream.
We can provide customers one year free warranty, and support renewals extended.
2. Best Service
We can provide custom-made 24 hours online service.
We can provide customers the free installation guidance and technical support.
We are willing to provide any countries and regions in the world with products and technical support at present, our product has covered more than 100 countried and regions.
3. Reliable Partner
Our company was built in 2003 with 20 years history.
Our company is experienced in exporting and has exported over 150 countries.
Our company has own factory, R&D department, 24 online service group.
Over the years, we have been focusing on LED application technology innovation and services. The company integrates R&D, production, marketing and comprehensive services, and its products sell well in more than 150 countries and regions around the world.
FAQ
Q : Are you manufacturer?
A : Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production; more than 72 hours tested bofore shipment.
Q : What is the minimum order(MOQ)?
A : We accept one unit for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q : Can we get the free sample?
A : Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. After place the quantity order, we can return the sample cost to the customer.
Q : what services can we provide?
A : Accepted Delivery Terms: CIF,EXW,CIF,CIP, DDP, DDU...
Accepted Payment Currency:USD,EUR,CAD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q : What's Your Products Warranty?
A : Our warranty is 3 years.
Q : How long it will take for delivery?
A : For production lead time around 7-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-7 working days. For some remote place, delivery time maybe a little bit longer.
Q : How to repair the device if any problem ?
A : We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
