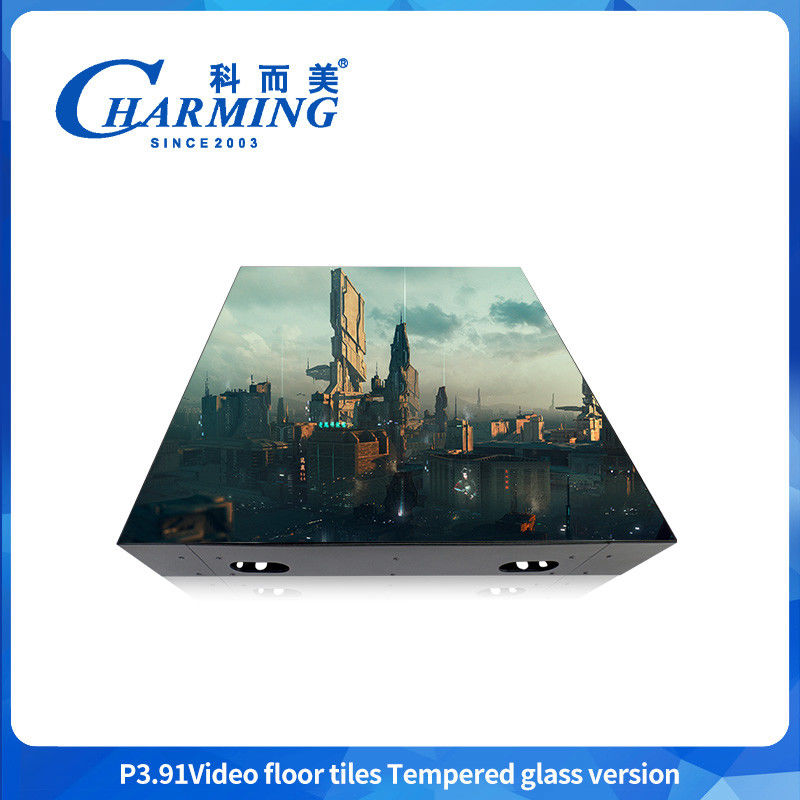

High Quality Floor Dance Screen Concert Dance Floor P3.91 Full-color Indoor Dance Floor High resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 500 X 500 X85 MM | Max.Power(W): | 200 |
|---|---|---|---|
| Cabinet Weight(KG): | 18.1 | Refresh Rate (Hz): | 3840 |
| Pixel Pitch(MM): | 3.91 | LED Standard: | SMD 1921 |
| Pixel Density(Dot/m²): | 65536 | Brightness (CD/m²): | 1500 |
| Viewing Angle: | 120 ° | Life Span: | ≥ 50000 Hours |
| High Light: | Concert Floor Dance Screen,P3.91 Floor Dance Screen |
||
Product Description
High Quality Floor Dance Screen Concert Dance Floor P3.91 Full-color Indoor Dance Floor High resolution
Product feature:
1): Tempered glass +GoB processPackaging technology;
2): High-definition display;
3): Waterproof design;
4):High performance load bearing Anti-slip and wear resistance;
product introduce:
1)All-round glue filling+ glass protection360 degree protection to enhance theprotection of LED;Heat conduction uniformity, reducingtemperature differences resultingin displayColor bias phenomenon;
2)Professional waterproof, moisture-proofdustproof performance,The front waterproof rating is lP65.
3)Strict pressure test, can withstand 500kg/M² Scratch-resistant and wear-resistant, non-slip.
4)Rechargeable vacuum sucker,quick module change,Improve maintenance efficiency.
Product parameter
| Dimension(MM) | 500*500*85mm/500*1000*85mm |
| Max.Power(w) | 200W/400W |
| Cabinet Weight(KG) |
6.2KG/11.2KG |
| Brightness(CD/m²) | ≥5000 CD/㎡ |
| LED Standard | SMD1921 |
| Viewing Angle | 140° |
| Protection Level | IP65 |
| Refresh Rate(Hz) | 1920Hz/3840Hz |
| Pixel Pitch(MM) | 3.91-7.8125MM |
| Scan Mode | 1/8Scan |
| Pixel Density(Dot/㎡) | 32768 Dot/m² |
| Cabinet Material | Magnesium Alloy |
| Maintenance Method | Back Maintenance |
| Grey Level | 16 Bit |
| Working Temperature | -20~60℃ |
| Working Humidity | 10%-90%RH |
| Life Span | ≥50000 Hours |
| Working voltage | AC 110W/220V,50V60HZ |
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
1. Die-casting aluminum , low temp-rise
2.Hard Connection, HUB card design, Without Any Cables
3. Magnetic front service or Back service with screw
4.High-efficiency cooling, No fan ,mute design, noise-free.
5. High refresh rate , low light high gray
6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
7. Lightweight - weighs only 8.6kg, single person can be a single portable, and extremely easy to install;
8. Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements;
