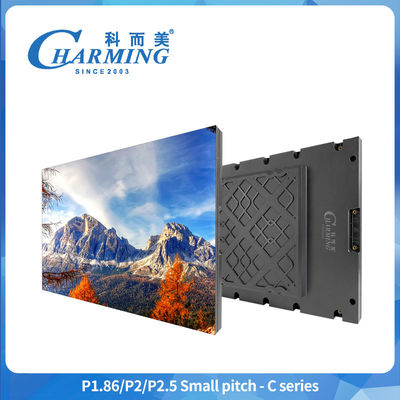

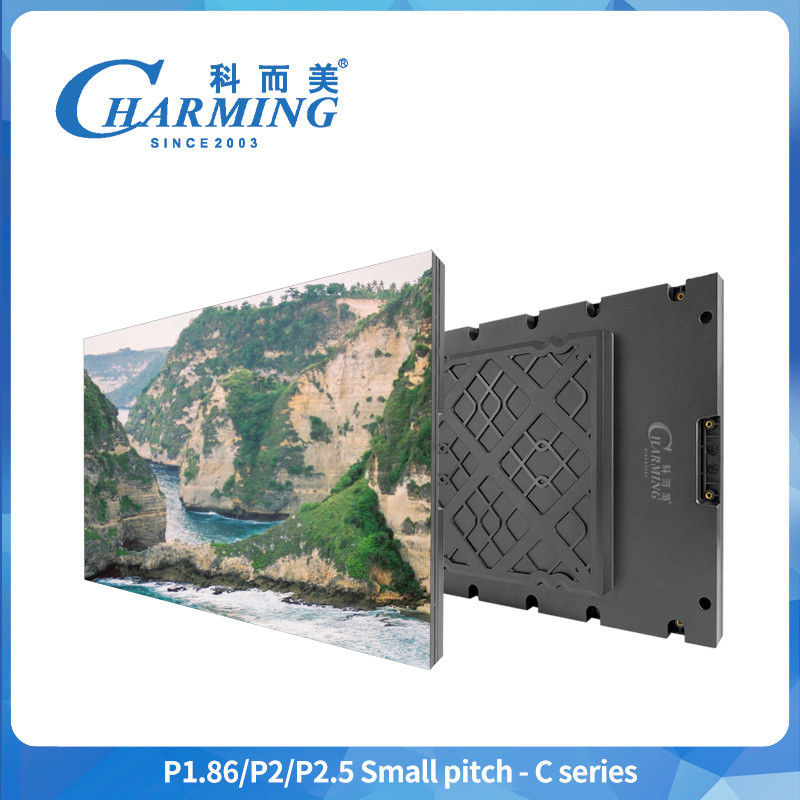

IP40 Fine Pitch LED Display 320*480mm High Definition LED Billboard Panel For Events
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Fine Pixel Pitch Screen | Application: | Advertising Use |
|---|---|---|---|
| Protection Rate: | IP40 | Weight: | 2.42kg |
| Module Size: | 320*160mm | Maintenance Method: | Front Maintenance |
| Refresh Frequency: | 3840Hz | Cabinet Size: | 320*480*52mm |
| Brightness: | >1000nit | ||
| High Light: | IP40 Fine Pitch LED Display,High Definition Fine Pitch LED Display,Fine Pitch LED Display For Events |
||
Product Description
P1.86-P2.5 Led Display 320*480mm High Definition LED Billboard Panel For Events
Product Description
1. Utra light; 1 pcs only 2.42kg
2. Save installation cost and space; whole machine magnetic
suction installation
3. Reduce installations cables; cabinet only need power and signal cables
4. Utra thin, thickness only 52mm, after installation, the protruding
thickness of the box body is only 30.5mm
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
Our service
1. who are we?
We are based in Guangdong, China, start from 2003,sell to Domestic Market(40.00%),Southeast Asia(10.00%),Mid East(8.00%),South America(7.00%),Africa(6.00%),Eastern Europe(6.00%),Eastern Asia(5.00%),North America(3.00%),Western Europe(3.00%),Central America(3.00%),Northern Europe(3.00%),South Asia(2.00%),Oceania(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Rental Led Display; Led Video Wall; Advertising Led Display; Led Modules
4. why should you buy from us not from other suppliers?
1.founded in 2003 ,Products have been well sold over 100 overseas countries 2.it has its own facilities for R&D, Manufacturing, Sales and integrated service. 3.By now has obtained over 30 technical patent. 4.Charming has passed the CE, CB ,ROSH and ISO.
