Indoor Advertising P1.86 320*480mm Fine Pitch LED Screen High Resolution 3840Hz Refresh IP42
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Fine Pixel Pitch Screen | Application: | Advertising Use |
|---|---|---|---|
| Protection Rate: | IP40 | Cabinet Size: | 320*480*52mm |
| Module Size: | 320*160mm | Weight: | 2.42kg |
| Maintenance Method: | Front Maintenance | Refresh Frequency: | 4k |
| Brightness: | >1000nit | ||
| High Light: | P1.86 Fine Pitch LED Screen,Indoor Advertising Fine Pitch LED Screen |
||
Product Description
Indoor Advertising P1.86 320*480mm Led Screen High Resolution 3840Hz Refresh IP42
Product Description
1. Indoor rental led display screen made by Die-casting aluminum, good intensity, not be out of shape easily.
2. Lightweight, easy to take when it is on stage rental performance.
3. Each cabinet can be taked out for change and fix without disassembling the whole screen, safe maintanence fee.
4. Fast installation and fix, wide view angle, high contrast, seamless splice.
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||

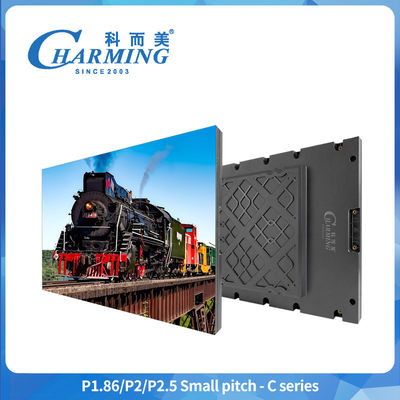

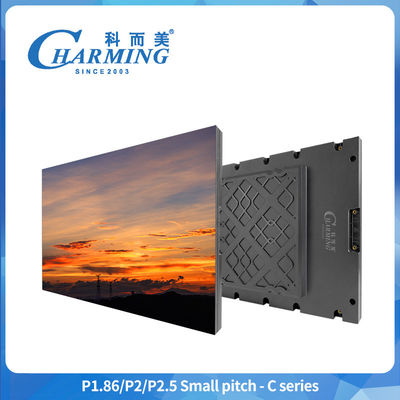

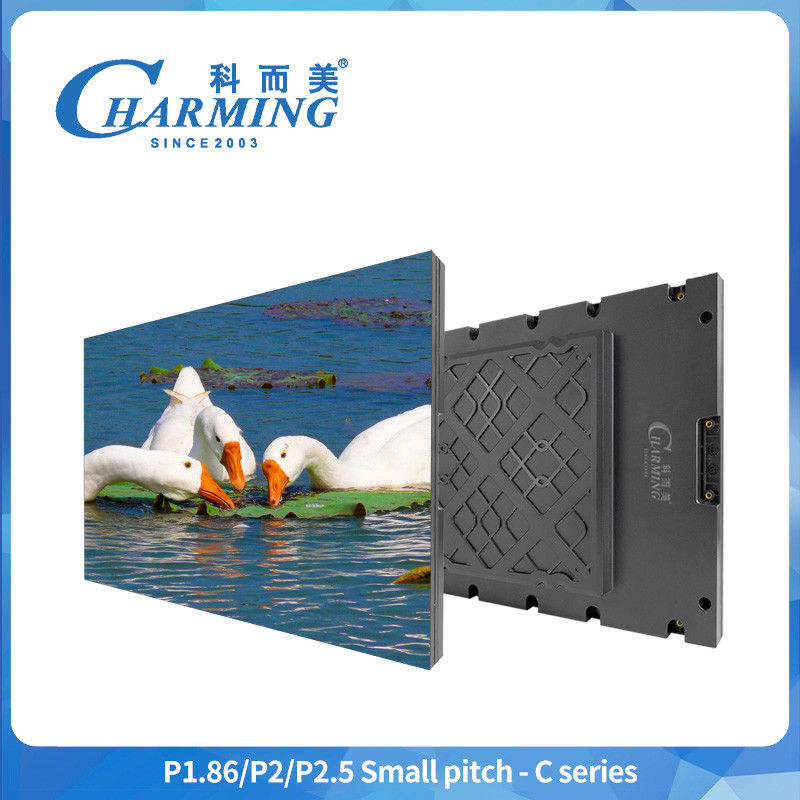

Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
What we can offer to you
- Before delivery
We will strict test all the LED display and LED module, and keep it light up for 72 hours, and check all the parts of thedisplay to confirm it is Ok for delivery.
- Delivery Time
FOB Guangzhou (approx 20 working days after the advanced payment)
- Service after sales
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get youEmail or call, and offer you a good solution for your problem.
- Warranty
Two years quality warranty.
