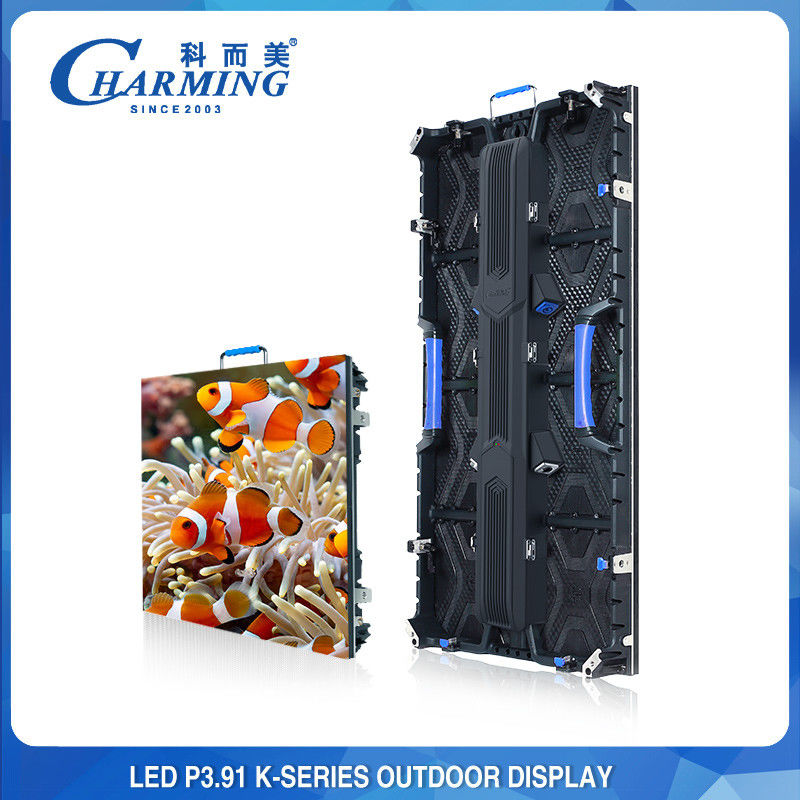

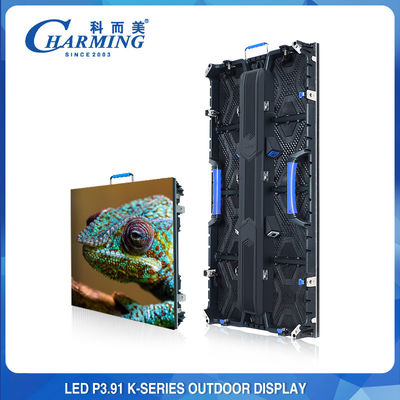

P3.91 K Series LED Outdoor Screen Ultra Wide Viewing Angle Lamp Beads Design LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | RK391-H、RK391X-H、RK391W-H、RK391WX-H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | P3.91 K Series Outdoor Display | LED Standard: | SMD2020、SMD1921 |
|---|---|---|---|
| Protection Level: | P42、IP65 | Life Span: | 100000 Hours |
| Brightness(CD/m): | ≥600CD/㎡、≥4500 CD/㎡ | Refresh Rate(Hz): | 4K |
| Maintenance Method: | Back Maintenance | Working Temperature: | -20~60°C |
| Working Voltage: | AC 110V/220V,50/60HZ | ||
| High Light: | P3.91 LED Outdoor Screen,Ultra Wide Viewing LED Outdoor Screen |
||
Product Description
P3.91 K series Outdoor Display Ultra-wide Viewing Angle And High-quality Lamp Beads Design LED Outdoor Screen
Product Descriptions
- Convenient installation, Weigh only 8kg/14.8kg
- High Refresh, high contrast, high gray scale
- Die-casting Aluminum Cabinet and Truss Connection Lock Hole design
Technical Specifications
| Type Number |
RK391-H
|
RK391X-H
|
RK391W-H
|
RK391WX-H
|
| Dimension(MM) |
500x 500x 86MM
|
500x1000x86MM
|
500 x 500x 86MM
|
500x1000x86MM
|
| Max.Power(W) |
100W
|
200W
|
200W
|
400W |
| Cabinet Weight(KG) |
8KG
|
14.5KG
|
8KG
|
14.8KG
|
| Brightness(CD/m) |
≥600CD/㎡
|
≥4500 CD/㎡
|
||
| LED Standard |
SMD2020
|
SMD1921
|
||
| Viewing Angle |
120°
|
140°
|
||
| Protection Level |
P42
|
IP65
|
||
| Refresh Rate(Hz) | 1920Hz/3840Hz | |||
| Scan Mode |
1/16 Scan
|
|||
| Pixel Density(Dot/m) |
65536 Dot/㎡
|
|||
| Cabinet Material |
Aluminum Alloy
|
|||
| Maintenance Method | Back Maintenance | |||
| Grey Level | 16 Bit | |||
| Working Temperature | -20~60°C | |||
| Working Humidity | 10%-90%RH | |||
| Life Span | ≥50000 Hours | |||
| Working Voltage | AC 110V/220V,50/60HZ | |||
Details Descriptions
The higher the Grey level, the richer the displayed colors and Grey level is the decisive factor for displaying the colors. the more delicate the picture.
1. Indoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led TV Solution
- Video Conference System
- Immersive & 3D Led Display Solution

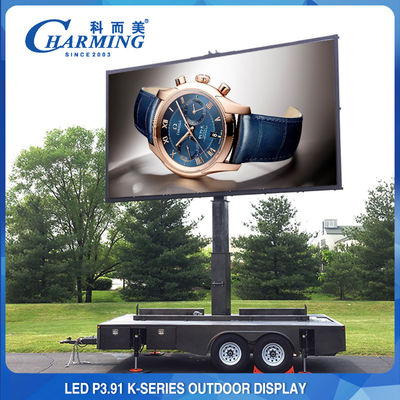

2. Outdoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solutions
- All-in-one Led Advertising Signs
- All-in-one Commercial Led Display Systems
- Led Billboard Solutions
3. Structure Design
- Wall Mounting Structure
- Rental Stack & Floor Stand Structure
- Electric Lifting & Rotating System
4. Customized Led Solution
- Spherical Led Screen Solution
- Cubic Led Screen Solution
- Right angle Led Screen Solution
- Led Video Floor Screen Solution
- Customzed Shape Led Screen Solution
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 19 years.
