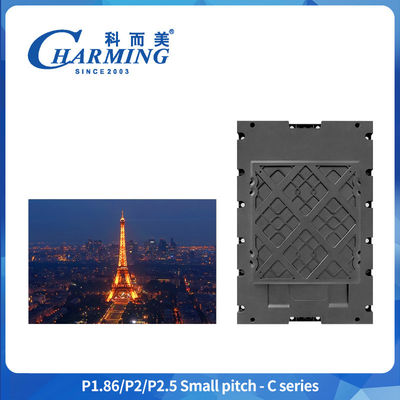

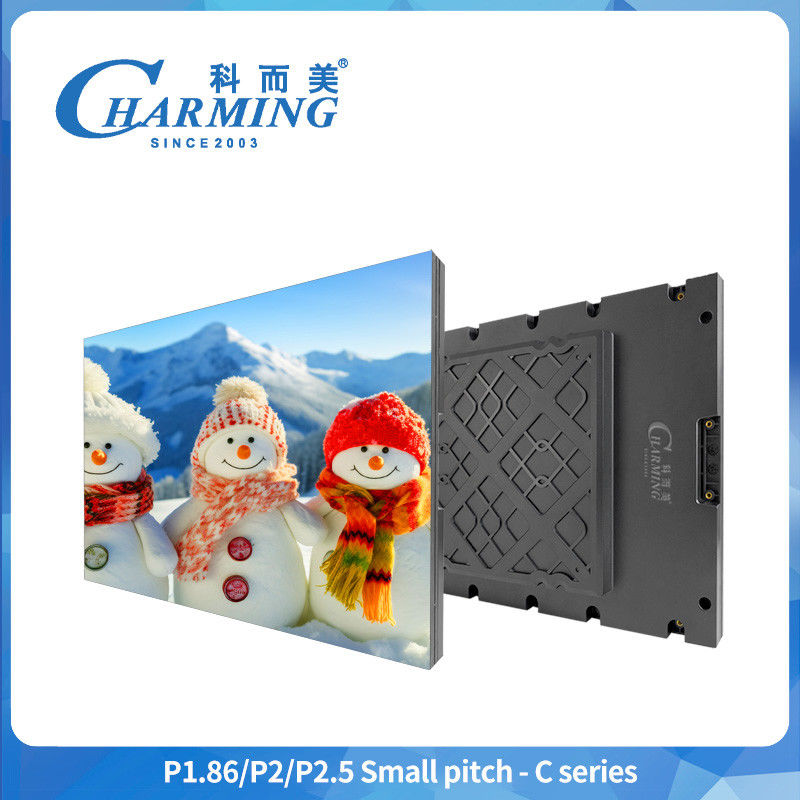

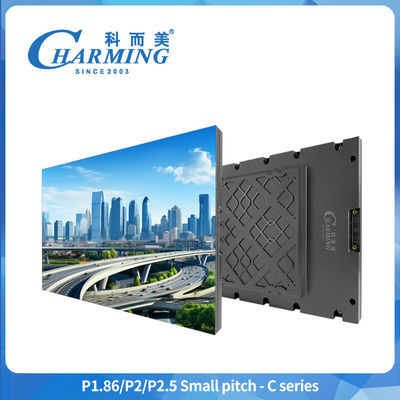

Full Color LED Video Wall Display LP1.86-P2.5 Fine Pitch LED Display 4K HD
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.2-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Full Color 4K Led Video Wall | Maintain: | 100% Front Access |
|---|---|---|---|
| Resolution: | 256x192 | Refresh Frequency: | 1920hz-3840HZ |
| Brightenss: | >1000CD/SQM | IP Rate: | IP42 |
| Cabinet Size: | 480*320mm | Weight: | 2.3kg |
| High Light: | Full Color LED Video Wall Display,P2.5 LED Video Wall Display |
||
Product Description
Full Color Led Video Wall LP1.86-P2.5 Fine Pitch LED Display 4K HD Led Video Wall
Product Description
1. Convenient installation, light weight 2.23kg
2. Front service with magnet 4:3
3. High Refresh, high contrast, high gray scale
4. Perfect Structure Desgin
5. Fast Installtion, save cost
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >600 CD/sqm | >600 CD/sqm | >800 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
|
Pixel Density(Dot/㎡)
|
289050Dot/㎡
|
250000Dot/㎡
|
160000Dot/㎡
|
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 200W | 200W | 200W |
|
Dimension(MM)
|
320×480×52MM
|
||
| Refresh Rate | 1920hz/3840hz | ||
| View Angle | 130° | ||
| Weight | 2.42KG | ||
|
Max.Power(W)
|
80W | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing
Integratedmodule, receiving card,and power supply
Reserve interfaces to reduce external cables
making the overall design more concise and convenient
Application for conference room, hotel, airport, exhibition, presentation, tv station, broadcasting, ...
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 19 years.
What we offer to customer?
1. Indoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led TV Solution
- Video Conference System
- Immersive & 3D Led Display Solution
2. Outdoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led Advertising Sign
- All-in-one Commercial Led Display System
- Led Billboard Solution
3. Structure Design
- Wall Mounting Structure
- Rental Stack & Floor Stand Structure
- Electric Lifting & Rotating System
4. Customized Led Solution
- Spherical Led Screen Solution
- Cubic Led Screen Solution
- Right angle Led Screen Solution
- Led Video Floor Screen Solution
- Customzed Shape Led Screen Solution
