Full Color LED Advertising Displays Led Digital Billboard Size 320 x 480 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Fine Pixel Pitch Screen | Application: | For Meeting Room |
|---|---|---|---|
| Protection Rate: | IP40 | Module Size: | 320*160mm |
| Refresh Frequency: | 4k | Weight: | 2.42kg |
| Maintenance Method: | Front Maintenance | Cabinet Size: | 320*480*52mm |
| Brightness: | >1000nit | Control System: | Nova Star |
Product Description

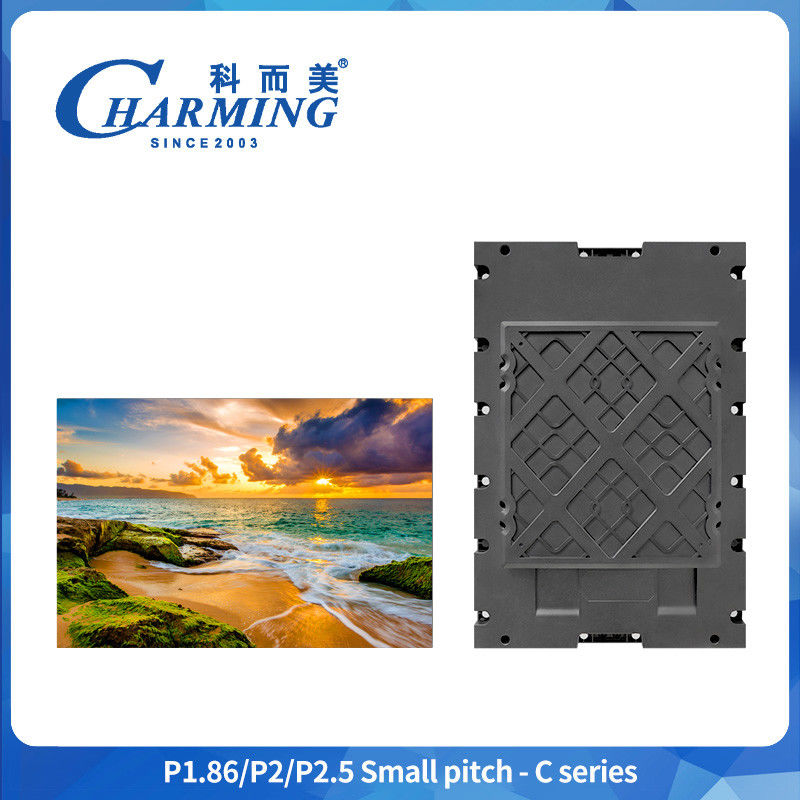

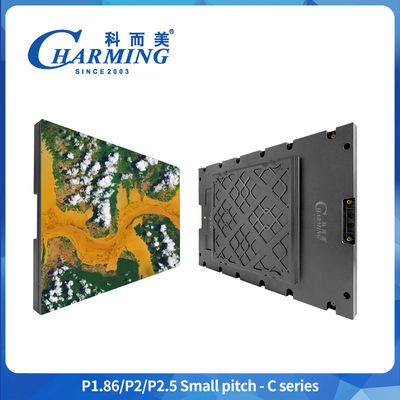

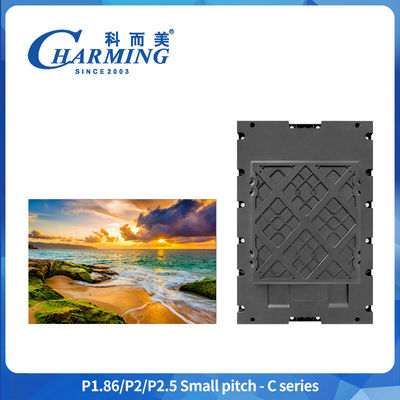

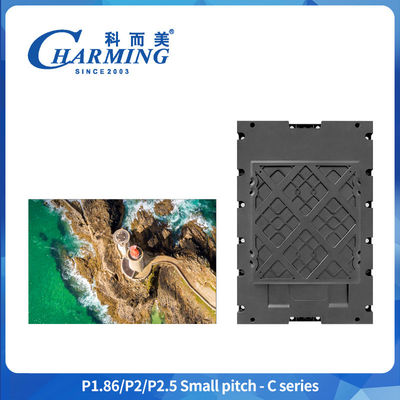

Full Color LED Advertising Displays Led Digital Billboard Size 320 x 480 mm
Features
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
Company Overview
Charming Co., ltd has more than 20 years experiences in technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
2. What are your products packing?
We provide 3 kinds of packing cases: carton paper case, wooden packing case, and flight packing case. Carton paper case for the led module; Wooden packing case for heavy iron cabinet; Flight packing case for rental aluminum die-casting cabinet;
3: Is it OK to print my logo on LED screen panel?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4. What payment methods your company accept?
We accept most oft the payment methods, but mainly accept T/T, L/C, Western Union etc.
