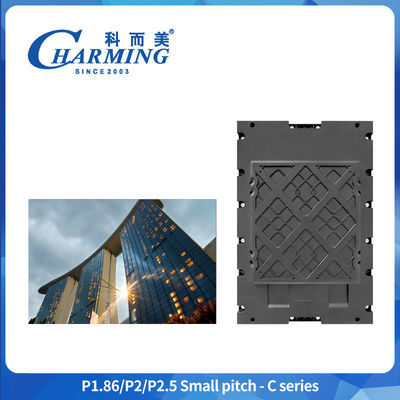

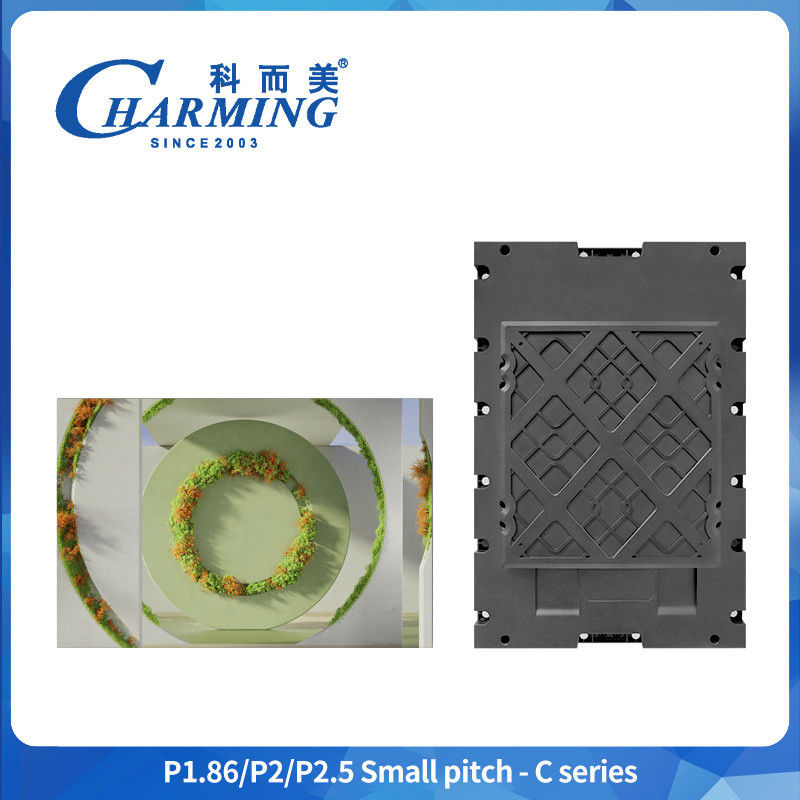

P1.86-P2.5 Led display 320*480mm High Definition LED Billboard Panel For Events
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | Fine Pixel Pitch Screen | Application: | For Meeting Room |
|---|---|---|---|
| Protection Rate: | IP40 | Module Size: | 320*160mm |
| Refresh Frequency: | 4k | Weight: | 2.42kg |
| Maintenance Method: | Front Maintenance | Cabinet Size: | 320*480*52mm |
| Brightness: | >1000nit | Control System: | Nova Star |
Product Description
P1.86-P2.5 Led display 320*480mm High Definition LED Video Wall Panel For Events
Features:
2. Indication lights to show status of power and signal status
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz | ||
| View Angle | 140° | ||
| Weight | 2.42KG | ||
| Material | plastic | ||
| Maintenance | Front Maintenance | ||
| Grey Level | 16 Bit | ||
| Temperature | -20°-60° | ||
| Life Span | ≥500000 | ||
| Voltage | AC110V/220V, 50HZ/60HZ | ||
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
Company Overview
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
2. What is your lead time?
- It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
3. What is your payment term?
- EX factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the shipping method?
- It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5. How do you make our business long-term and good relationship?
- 1. We keep good quality and competitive price to ensure our customers benefit ;
- 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
